926328 (PRO 32) - Ariens Hydro Professional 32" Snow Blower, Briggs & Stratton (SN: 000101 - 094999) Engine And Belt Drive Parts Diagram

Hydro Professional 32" Snow Blower, Briggs & Stratton

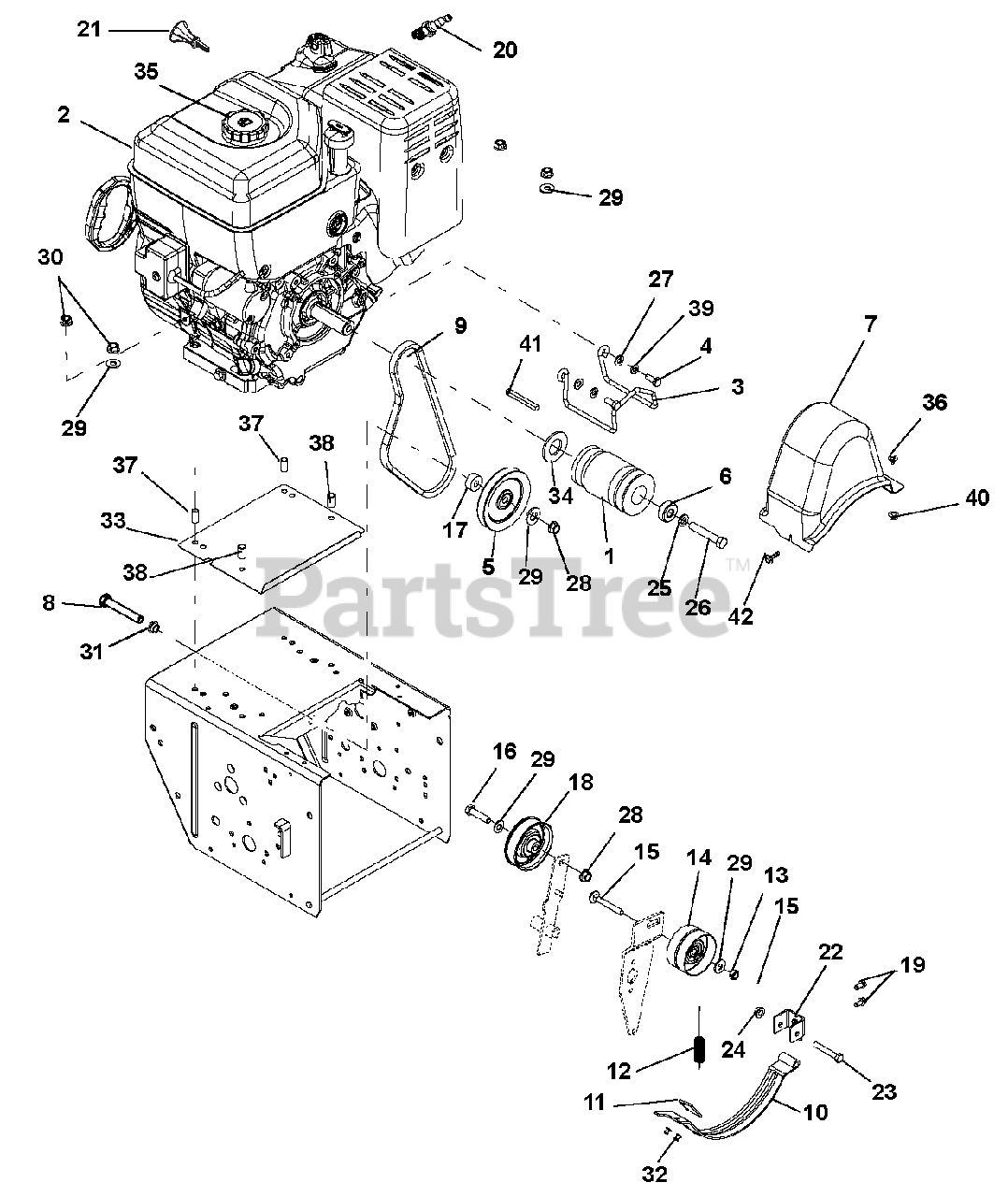

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 04425000

SHEAVE, COMBO HYDRO WHEEL 4L

Note: (926053, 054, 055, 326, 328, 329)

$180.99

$

Usually ships in 4-12 days

0

1

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

Note: (926056, 325)

$193.99

$

Usually ships in 4-12 days

0

2

Ariens 08200705

ENGINE, BRIGGS PF 2100, 120V

Note: (926053, 054, 055, 056)

$

$

Not available

2

Ariens 08200801

ENGINE, BRIGGS PF 2100, 240V

Note: (926326, 328, 329, 325)

$

$

Not available

3

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

Note: (926056, 325)

$25.99

$

In Stock, only 1 left!

0

3

Ariens 04334200

FINGER, BELT

Note: (926053, 054, 055, 326, 328, 329)

$27.99

$

Usually ships in 4-12 days

0

4

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07300528

SHV, .38"ID X 4.00"OD V-IDLER

$39.99

$

In Stock, only 2 left!

0

6

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 04083100

COVER, BELT-LARGE PRO

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

9

Ariens 07200631

V-BELT, 4L-WRAPPED

Note: (926053, 054, 055, 326, 328, 329)

$28.99

$

In Stock, Qty 15

0

9

Ariens 07200630

V-BELT, 4L-WRAPPED

Note: (926056, 325)

$26.99

$

In Stock, only 1 left!

0

10

Ariens 00374900

ARM, BRAKE-ATTACHMENT

$25.99

$

Usually ships in 4-12 days

0

11

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 9

0

12

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

13

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07333500

IDLER, FLAT-2.75 OD X .375 ID

$22.99

$

In Stock, Qty 9

0

15

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

17

Ariens 05501123

BSHG,POCKET .391X.570X1.0X.450

$11.99

$

Usually ships in 4-12 days

0

18

Ariens 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

In Stock, only 1 left!

0

19

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 21531100

PLUG, SPARK 20HP B&S VANGUARD

$4.49

$

In Stock, Qty 13

0

21

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

22

Ariens 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

26

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05501122

BSHG, FLANGE .391X.56X.313X.75

$6.99

$

Usually ships in 4-12 days

0

32

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

33

Ariens 04346051

BAFFLE,ENGINE-PRO SERIES

$38.99

$

Usually ships in 4-12 days

0

34

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

35

Ariens 07500217

CAP, FUEL - BRIGGS & STRATTON

$64.99

$

Usually ships in 4-12 days

0

36

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

37

Ariens 05500937

BSHG-SLV .325X.400X.795

$

$

Not available

38

Ariens 05531500

BSHG-SLV .328X.50X.75

$13.99

$

In Stock, only 1 left!

0

39

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

41

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

42

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0
