926325 (PRO 28) - Ariens Hydro Professional 28" Track Snow Blower, Briggs & Stratton (SN: 096000 & Above) Track Controls Parts Diagram

Hydro Professional 28" Track Snow Blower, Briggs & Stratton

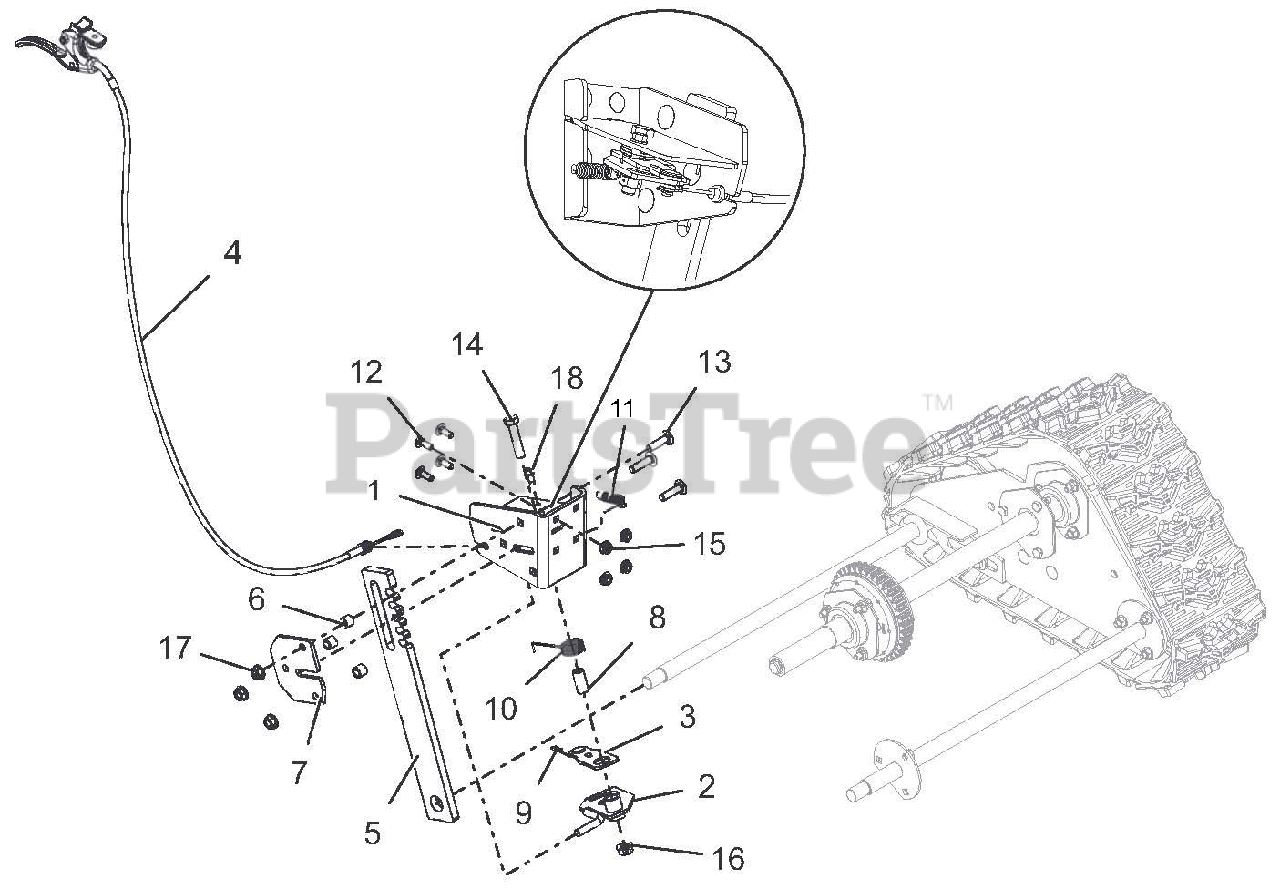

Track Controls Parts Diagram

  • Title

1

Ariens 00373751

BRACKET, HEIGHT ADJUSTER-PRO

$

$

Not available

2

Ariens 03294000

LOCK, HEIGHT ADJUSTER

$11.99

$

Usually ships in 4-12 days

0

3

Ariens 03376200

ARM, OVERTRAVEL

$11.99

$

Usually ships in 4-12 days

0

4

Ariens 06900510

CABLE, TRACK REMOTE

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 00383851

STOP, HEIGHT ADJUSTER-PRO

$32.99

$

Usually ships in 4-12 days

0

6

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

7

Ariens 03294151

PLATE, HEIGHT ADJUSTER

$

$

Not available

8

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

10

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

11

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

14

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
