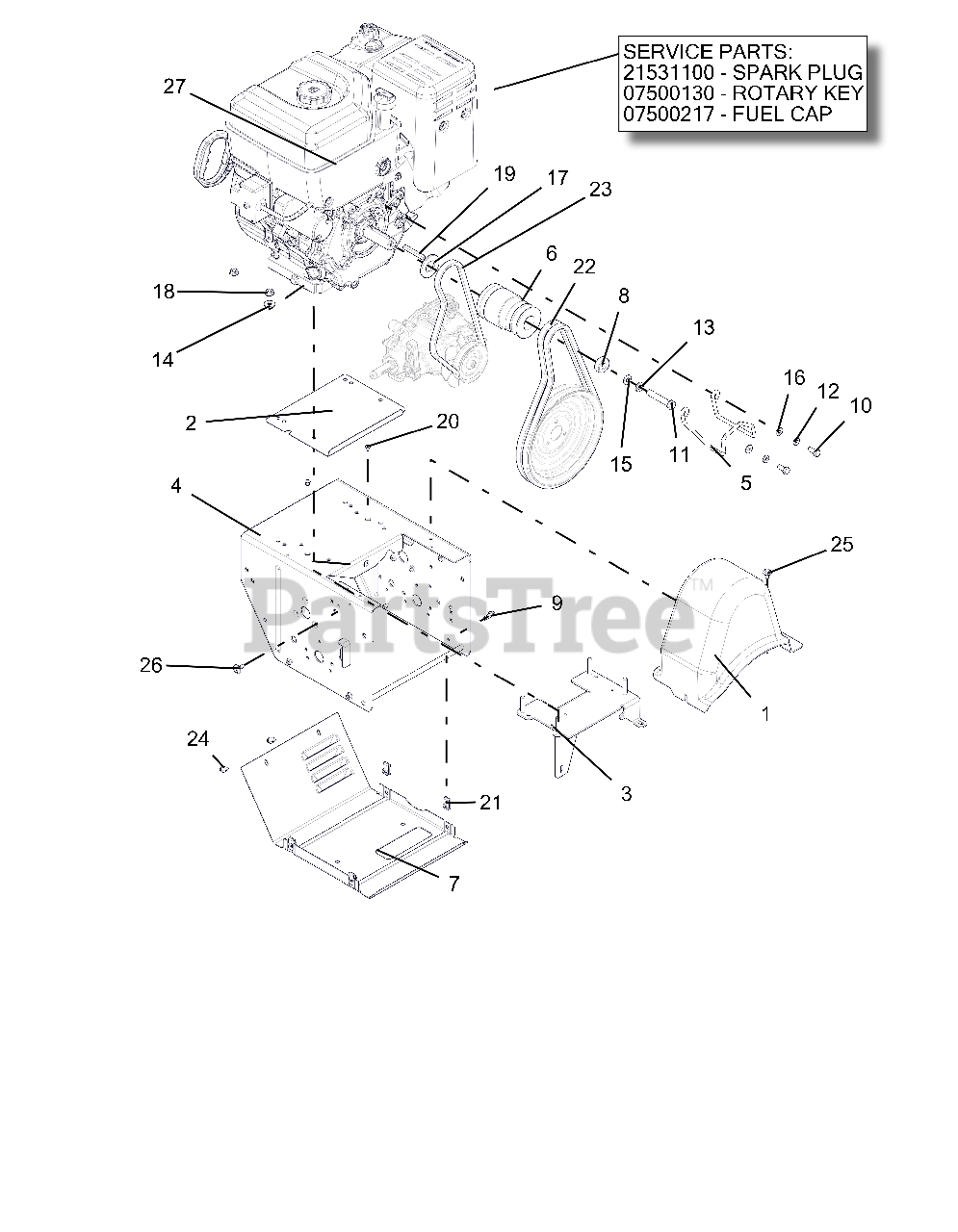

926325 (PRO 28) - Ariens Hydro Professional 28" Track Snow Blower, Briggs & Stratton (SN: 096000 & Above) Engine, Frame And Belt Drive - Track Parts Diagram

Hydro Professional 28" Track Snow Blower, Briggs & Stratton

Engine, Frame And Belt Drive - Track Parts Diagram

  • Title

1

Ariens 04083100

COVER, BELT-LARGE PRO

$26.99

$

Usually ships in 4-12 days

0

2

Ariens 04346051

BAFFLE,ENGINE-PRO SERIES

Note: (BLACK)

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 04371200

BRACKET, HYDROSTATIC TRANS XLG

$61.99

$

Usually ships in 4-12 days

0

4

Ariens 04426159

PRO HYDRO FRAME, MAIN
(Superseded to 04999959)

$194.99

$

Usually ships in 4-12 days

0

5

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

In Stock, only 1 left!

0

6

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

$193.99

$

Usually ships in 4-12 days

0

7

Ariens 04516659

COVER, BOTTOM - VENTILATED

$43.99

$

Usually ships in 4-12 days

0

8

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

12

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

18

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

20

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

21

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

Note: (SET)

$53.99

$

In Stock, Qty 20+

0

23

Ariens 07200630

V-BELT, 4L-WRAPPED

$26.99

$

In Stock, only 1 left!

0

24

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

26

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 08200801

ENGINE, BRIGGS PF 2100, 240V

$

$

Not available

27

Ariens 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: SERVICE PART

$4.49

$

In Stock, Qty 13

0

27

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: SERVICE PART

$7.99

$

In Stock, Qty 20+

0

27

Ariens 07500217

CAP, FUEL - BRIGGS & STRATTON

Note: SERVICE PART

$64.99

$

Usually ships in 4-12 days

0
