926320 (PRO 28) - Ariens Professional 28" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Cables And Controls Parts Diagram

Professional 28" Track Snow Blower, Briggs & Stratton

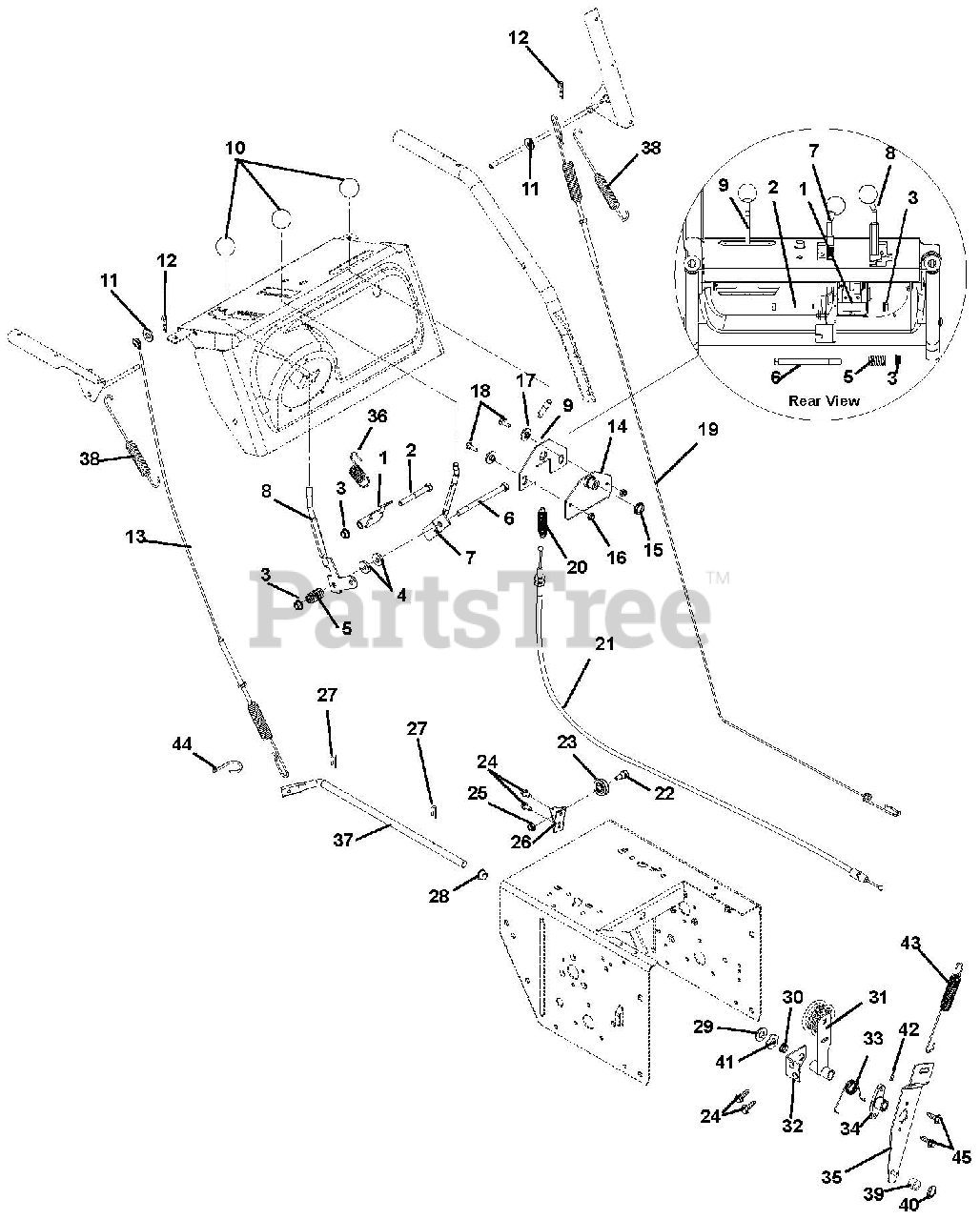

Cables And Controls Parts Diagram

  • Title

1

Ariens 00356900

ARM, INTERLOCK

$

$

Not available

2

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

3

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, only 3 left!

0

5

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

6

Ariens 05957700

@BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 00379100

CONTROL, DEFLECTOR

$42.99

$

Usually ships in 4-12 days

0

8

Ariens 00396900

LEVER, SHIFT

$51.99

$

In Stock, only 1 left!

0

9

Ariens 00180300

LEVER, CHUTE CONTROL

$48.99

$

In Stock, only 1 left!

0

10

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, Qty 7

0

11

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 15

0

13

Ariens 06900312

CABLE, ATTACHMENT

$34.99

$

In Stock, Qty 14

0

14

Ariens 00184800

MOUNT, CHUTE CONTROL

$58.99

$

Usually ships in 4-12 days

0

15

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05500004

BSHG-FLG .265X.448X.243X1.00

$3.49

$

In Stock, only 4 left!

0

18

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06900011

CABLE, TRACTION

$34.99

$

In Stock, Qty 9

0

20

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

$5.99

$

In Stock, Qty 11

0

21

Ariens 06900407

CABLE, CHUTE LOCK

$34.99

$

In Stock, only 3 left!

0

22

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

23

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 11

0

24

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

27

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

28

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

29

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 20+

0

31

Ariens 00371651

ARM, IDLER-TRACTION
(Superseded to 00371600)

$11.99

$

In Stock, Qty 17

0

32

Ariens 00372851

BRACKET, SUPPORT
(Superseded to 52110700)

$

$

Not available

33

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

34

Ariens 00384200

HUB, BRAKE ARM

$5.99

$

In Stock, Qty 11

0

35

Ariens 02954400

ARM, IDLER-ATTACHMENT

$77.99

$

In Stock, only 1 left!

0

36

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 19

0

37

Ariens 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, Qty 18

0

38

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

39

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

40

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

41

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

42

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

43

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

44

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

45

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
