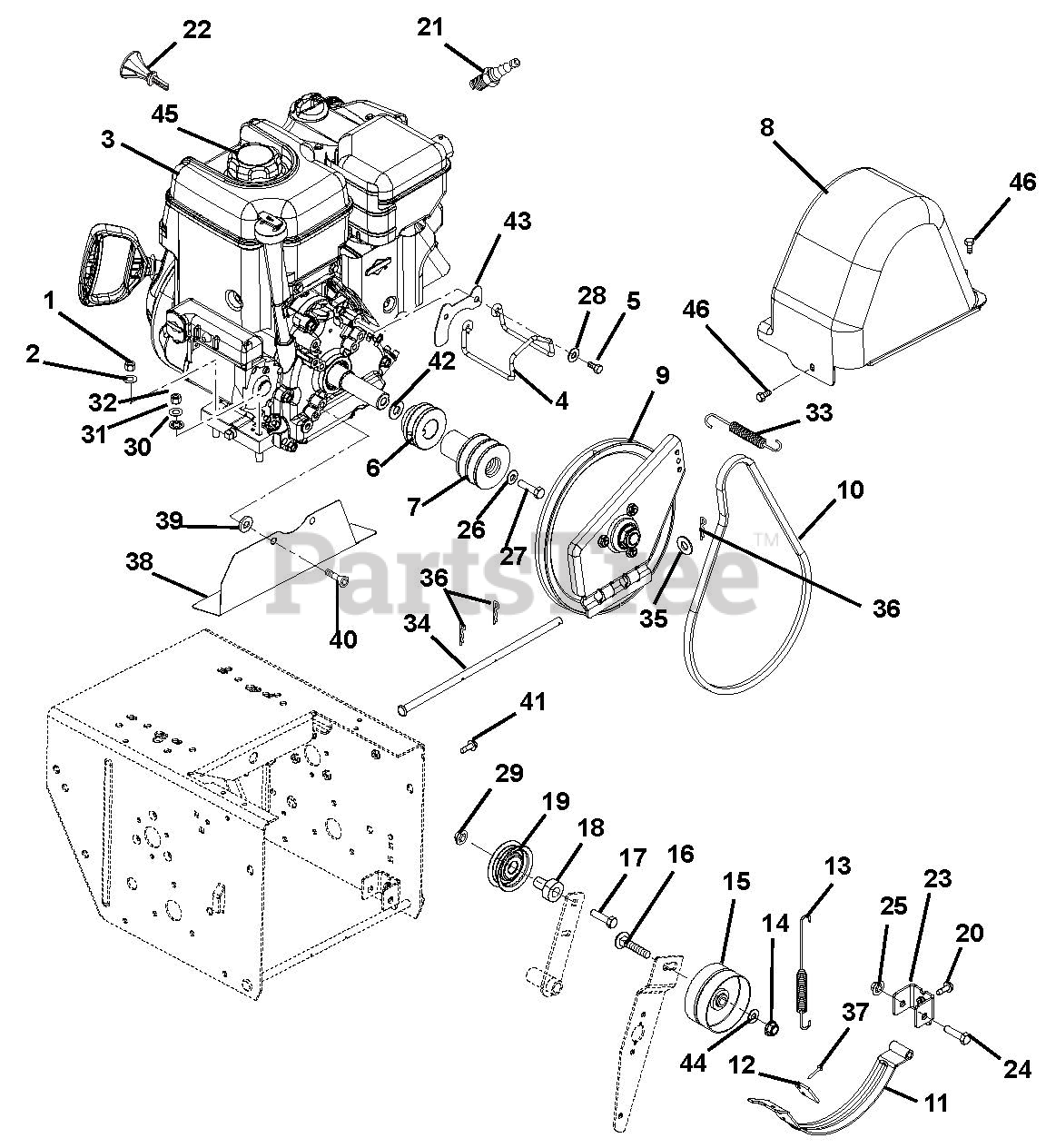

926319 (PRO 28) - Ariens Professional 28" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

Professional 28" Snow Blower, Briggs & Stratton

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (926104, 105, 506, 507, 508)

$0.99

$

In Stock, Qty 10

0

1

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

Note: (926037, 038, 039, 040, 042, 043, 319, 320)

$0.99

$

In Stock, Qty 10

0

2

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (926104, 105, 506, 507, 508)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (926037, 038, 039, 040, 042, 043, 319, 320)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08200509

ENGINE, BRIGGS SNOW 1450, 120V

Note: (926037)

$

$

Not available

3

Ariens 08200511

ENGINE, BRIGGS SNOW 1550, 120V

Note: (926038, 042)

$

$

Not available

3

Ariens 08200510

ENGINE, BRIGGS SNOW 1650, 120V

Note: (926039, 040, 043)

$

$

Not available

3

Ariens 08200607

ENGINE, BRIGGS SNOW 1550, 240V

Note: (319, 320)

$

$

Not available

3

Ariens 08200505

ENGINE, BRIGGS SNOW 1650, 12V

Note: (926104, 105, 506, 507, 508)

$

$

Not available

4

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

5

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00397100

SHEAVE, DRIVE
(Superseded to 52616500)

$15.99

$

In Stock, only 1 left!

0

7

Ariens 00657400

SHEAVE, ATTACHMENT 2-GRV
(Superseded to 04957500)

$

$

Not available

8

Ariens 00384100

COVER, BELT

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 52602700

PLATE, SWING ASSEMBLY-DEEP

$129.99

$

In Stock, only 2 left!

0

10

Ariens 07200110

V-BELT, 3L-WRAPPED

$21.99

$

In Stock, Qty 20+

0

11

Ariens 00374900

ARM, BRAKE-ATTACHMENT

$25.99

$

Usually ships in 4-12 days

0

12

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 7

0

13

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

14

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07333500

IDLER, FLAT-2.75 OD X .375 ID

$22.99

$

In Stock, Qty 8

0

16

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

18

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

19

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 21547500

PLUG, SPARK

$

$

Not available

22

Ariens 07500114

KEY, PUSH/PULL BRIGGS

Note: (926038, 042)

$

$

Not available

22

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: (926037, 039, 040, 043)

$7.99

$

In Stock, Qty 20+

0

23

Ariens 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (926104, 105, 506, 507, 508)

$0.99

$

In Stock, only 3 left!

0

31

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (926037, 038, 039, 040, 042, 043, 319, 320)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (926104, 105, 506, 507, 508)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (926104, 105, 506, 507, 508)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 08300019

SG-TENS .048X.50X2.8

$5.99

$

In Stock, Qty 14

0

34

Ariens 00380900

PIN, PIVOT

$40.99

$

Usually ships in 4-12 days

0

35

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

38

Ariens 03276651

BAFFLE, ENGINE

$28.99

$

Usually ships in 4-12 days

0

39

Ariens 06400828

WSHR-FL-STL .536X1.07X.109 YZ

$2.49

$

Usually ships in 4-12 days

0

40

Ariens 06100203

SCR-MCH.31-24X.75FLCTRSK EP80

$4.99

$

Usually ships in 4-12 days

0

41

Ariens 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

42

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

43

Ariens 03282351

GUARD, BELT COVER - BRIGGS

$16.99

$

Usually ships in 4-12 days

0

44

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 07500115

CAP, FUEL - BRIGGS & STRATTON
(Superseded to 07500013)

$17.99

$

Usually ships in 4-12 days

0

46

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0
