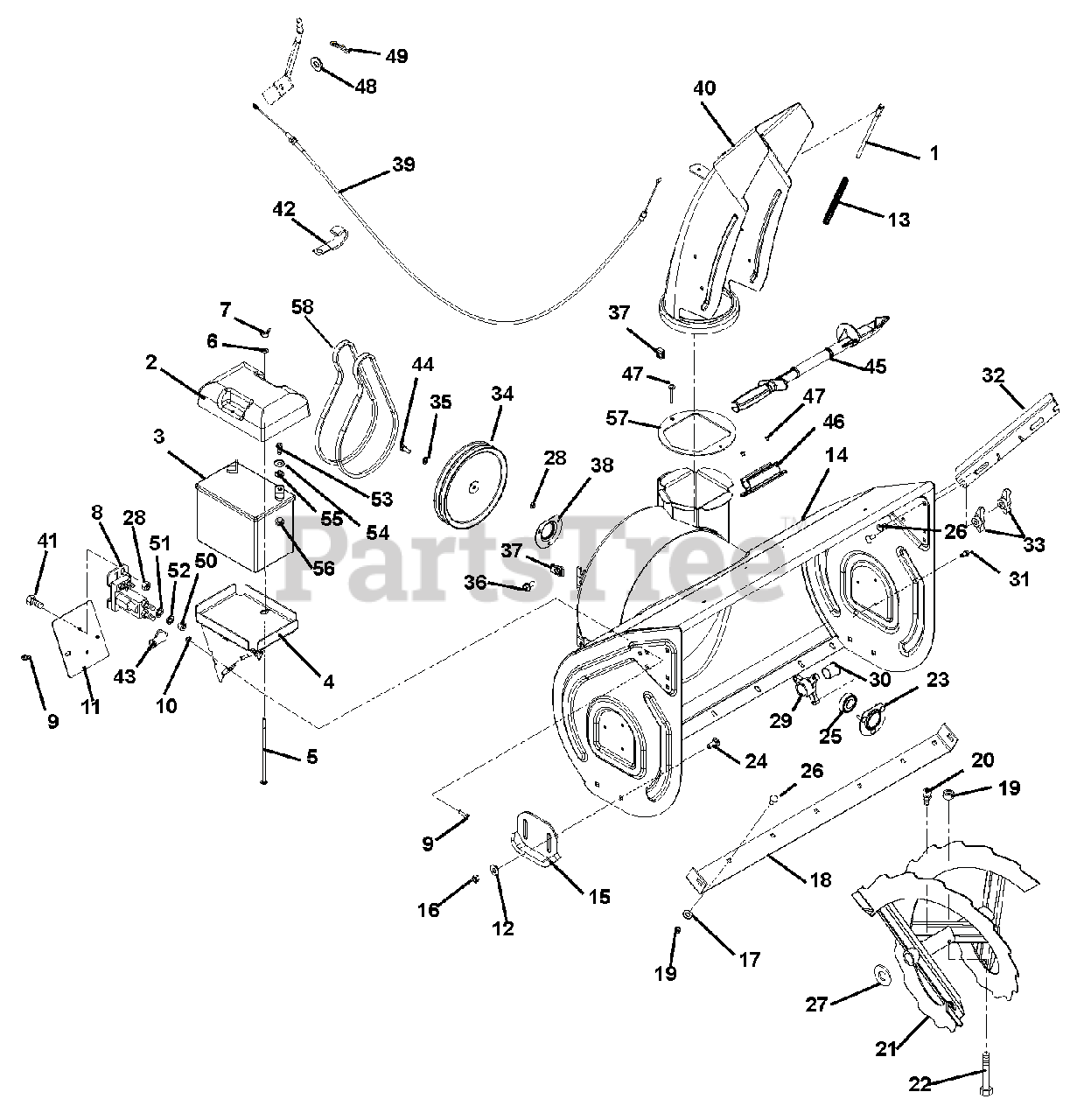

926313 (ST 1336 DLE) - Ariens 36" Snow Blower, 13hp Tecumseh (SN: 000101 - 000500) Auger And Chute Parts Diagram

36" Snow Blower, 13hp Tecumseh

Auger And Chute Parts Diagram

  • Title

1

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 4 left!

0

2

Ariens 04912900

COVER, BATTERY

Note: (926023, 312, 313, 316, 500, 501)

$11.99

$

Usually ships in 4-12 days

0

3

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L

Note: (926023, 312, 313, 316, 500, 501)

$

$

Not available

4

Ariens 52422200

TRAY, BATTERY-W/CLIPS

Note: (Includes Item 10) (926023, 312, 313, 316, 500, 501)

$122.99

$

Usually ships in 4-12 days

0

5

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

Note: (926023, 312, 313, 316, 500, 501)

$4.49

$

In Stock, only 2 left!

0

6

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (926023, 312, 313, 316, 500, 501)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

Note: (926023, 312, 313, 316, 500, 501)

$4.99

$

In Stock, Qty 19

0

8

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (926023, 312, 313, 316, 500, 501)

$60.99

$

In Stock, Qty 20+

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

Note: (926023, 312, 313, 316, 500, 501)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

Note: (926023, 312, 313, 316, 500, 501)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 02484459

COVER, SOLENOID

Note: (926023, 312, 313, 316, 500, 501)

$15.99

$

In Stock, only 1 left!

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, Qty 9

0

14

Ariens 52604300

HOUSING, BLOWER-26" W/DECAL
(Superseded to 52607800)

Note: (926017, 021, 310, 314)

$339.99

$

Usually ships in 4-12 days

0

14

Ariens 52604400

HOUSING, BLOWER-28" W/DECAL
(Superseded to 52607900)

Note: (926016, 022, 311, 315)

$407.99

$

Usually ships in 4-12 days

0

14

Ariens 52604800

HOUSING, BLOWER-32" W/DECAL
(Superseded to 52608000)

Note: (926302)

$407.99

$

Usually ships in 4-12 days

0

14

Ariens 52604500

HOUSING, BLOWER-32"B W/DECAL
(Superseded to 52608100)

Note: (926023, 312, 316, 500)

$407.99

$

Usually ships in 4-12 days

0

14

Ariens 52604600

HOUSING, BLOWER-36"B W/DECAL
(Superseded to 52608300)

Note: (926313, 501)

$

$

Not available

15

Ariens 02483059

RUNNER, SKID SHOE-1/2" FLANGE

Note: (926016, 017, 021, 022, 023, 310, 311, 312, 313, 314, 315, 316, 500, 501, 502)

$37.99

$

In Stock, Qty 7

0

15

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

Note: (926302)

$19.99

$

In Stock, Qty 20+

0

16

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (926001, 002, 013, 014, 015, 300, 301, 304, 305, 306)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (926003, 302, 307, 308, 500, 501)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

Note: (926017, 021, 310, 314)

$34.99

$

In Stock, Qty 17

0

18

Ariens 00175059

BLADE, SCRAPER-28"
(Superseded to 04182159)

Note: (926016, 022, 311, 315)

$39.99

$

In Stock, Qty 17

0

18

Ariens 00174959

BLADE, SCRAPER-32"
(Superseded to 04182059)

Note: (926023, 312, 316, 500)

$54.99

$

In Stock, Qty 14

0

18

Ariens 00268859

BLADE, SCRAPER-36"
(Superseded to 04181659)

Note: (926313, 501)

$51.99

$

In Stock, only 3 left!

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (926001, 002, 013, 014, 015, 300, 301, 304, 305, 306)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (926003, 302, 307, 308, 500, 501)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

21

Ariens 52421100

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926017, 021, 310, 314)

$284.99

$

Usually ships in 4-12 days

0

21

Ariens 52421200

RAKE, RH-26" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926017, 021, 310, 314)

$284.99

$

Usually ships in 4-12 days

0

21

Ariens 52421300

RAKE, LH-28" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926016, 022, 311, 315)

$270.99

$

Usually ships in 4-12 days

0

21

Ariens 52421400

RAKE, RH-28" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926016, 022, 311, 315)

$270.99

$

Usually ships in 4-12 days

0

21

Ariens 52421500

RAKE, LH-32" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926023, 312, 316, 500)

$298.99

$

Usually ships in 4-12 days

0

21

Ariens 52421600

RAKE, RH-32" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926023, 312, 316, 500)

$244.99

$

Usually ships in 4-12 days

0

21

Ariens 52421700

RAKE, LH-36" (1ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926313, 501)

$297.99

$

Usually ships in 4-12 days

0

21

Ariens 52421800

RAKE, RH-36" (1 ID X 15.75 OD)

Note: (15.75" O.D.) (Includes Item 20) (926313, 501)

$

$

Not available

22

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 19)

$4.99

$

In Stock, Qty 20+

0

23

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 17

0

24

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 20+

0

26

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (926001, 002, 013, 014, 015, 102, 300, 301, 304, 305, 306)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (926003, 302, 307, 308, 500, 501)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

30

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$6.99

$

In Stock, Qty 20+

0

31

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 00262159

CUTTER, DRIFT

$22.99

$

Usually ships in 4-12 days

0

33

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

34

Ariens 02984700

PULLEY,2X4LX8.5 BOLTED
(Superseded to 52607600)

$86.99

$

Usually ships in 4-12 days

0

35

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

38

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

39

Ariens 06900018

CABLE, DEFLECTOR
(Superseded to 06900406)

$45.99

$

In Stock, Qty 18

0

40

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

$159.99

$

Usually ships in 4-12 days

0

41

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

43

Ariens 07533200

BOOT, EYELET TERMINAL

Note: (926023,312,313,316, 500, 501)

$3.49

$

In Stock, only 3 left!

0

44

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

46

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

47

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

48

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

50

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 13

0

51

Ariens 06310500

WSHR-LOCK INT .31 YWZC

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, only 3 left!

0

52

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

Note: (926023,312,313,316, 500, 501)

$1.49

$

Usually ships in 4-12 days

0

55

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 20+

0

56

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

Note: (926023,312,313,316, 500, 501)

$0.99

$

In Stock, Qty 13

0

57

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

58

Ariens 07200430

V-BELT, HA-RAW EDGE (SET)

Note: (926017, 016, 021, 022, 023, 310, 311, 314, 315, 316, 502)

$58.99

$

In Stock, Qty 20+

0

58

Ariens 07200429

V-BELT, HA-RAW EDGE (SET)

Note: (926302, 312, 313, 316, 500, 501)

$62.99

$

In Stock, Qty 6

0
