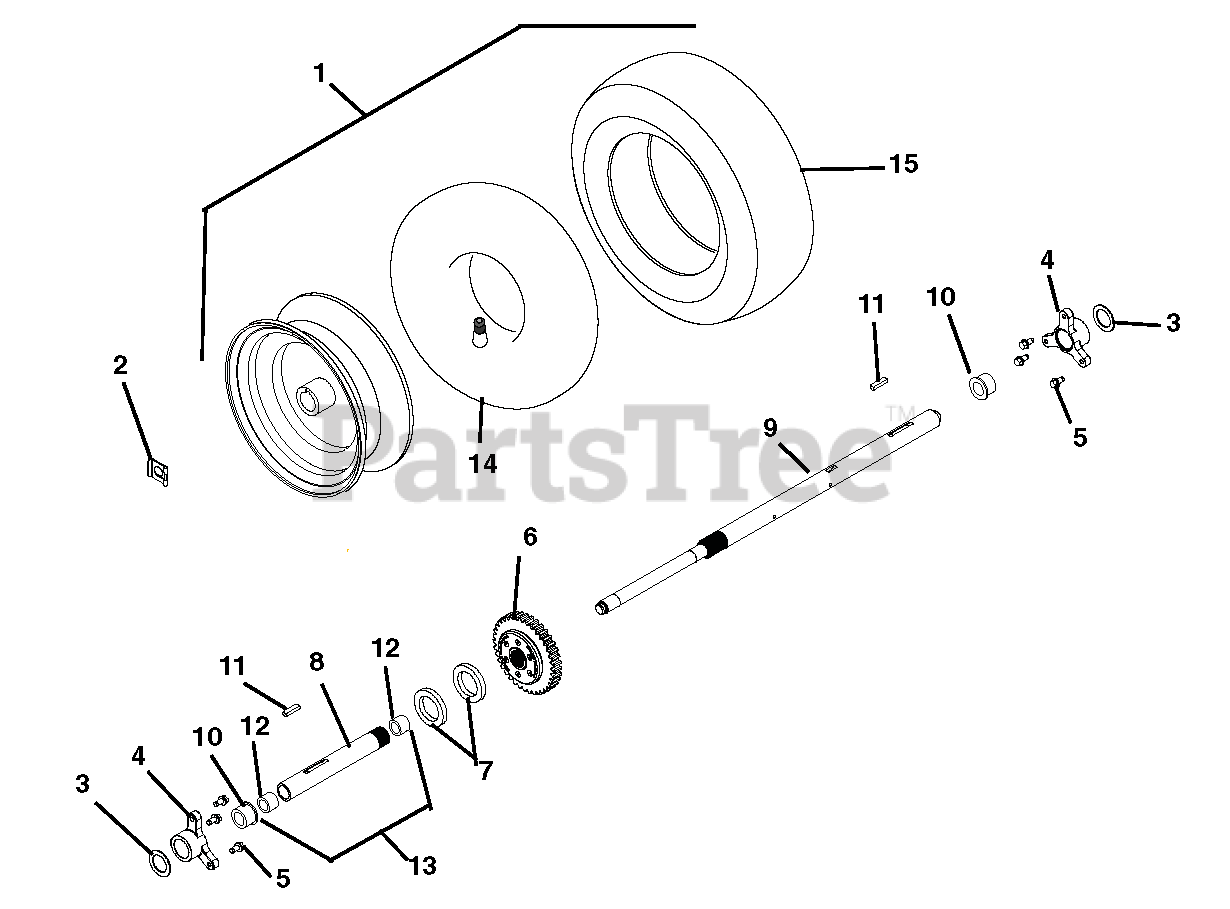

926312 (ST 1332 DLE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000501 & Above) Wheels And Axles Parts Diagram

32" Snow Blower, 13hp Tecumseh

Wheels And Axles Parts Diagram

  • Title
1

Ariens 07100229

TIRE/WHEEL,RH 16X4.8-8 DIFF T2
(Superseded to 07101201)

Note: (Includes 15-16) (016, 017, 036, 310, 311)

$113.99

$

Usually ships in 4-12 days

0

1

Ariens 07100230

TIRE/WHEEL,LH 16X4.8-8 DIFF T2
(Superseded to 07101202)

Note: (Includes 15-16) (016, 017, 036, 310, 311)

$113.99

$

Usually ships in 4-12 days

0

1

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes 15-16) (312, 313, 500, 501, 502)

$148.99

$

Usually ships in 4-12 days

0

1

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes 15-16) (312, 313, 500, 501, 502)

$148.99

$

In Stock, only 2 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

7

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

8

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$53.99

$

In Stock, Qty 12

0

9

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$96.99

$

In Stock, only 4 left!

0

10

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

11

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

12

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

13

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: (Includes 8 and 14)

$53.99

$

In Stock, Qty 12

0

14

Ariens 07103700

TUBE

Note: (016, 017, 036, 310, 311)

$14.99

$

In Stock, only 1 left!

0

14

Ariens 07108700

TUBE

Note: (312, 313, 500, 501, 502)

$34.99

$

Usually ships in 4-12 days

0

15

Ariens 07100727

TIRE, 4.80-8 K478

Note: (016, 017, 036, 310, 311)

$79.99

$

Usually ships in 4-12 days

0

15

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: (312, 313, 500, 501, 502)

$79.99

$

Usually ships in 4-12 days

0
