926312 (ST 1332 DLE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 000101 - 000500) Gear Case Cast Iron Parts Diagram

32" Snow Blower, 13hp Tecumseh

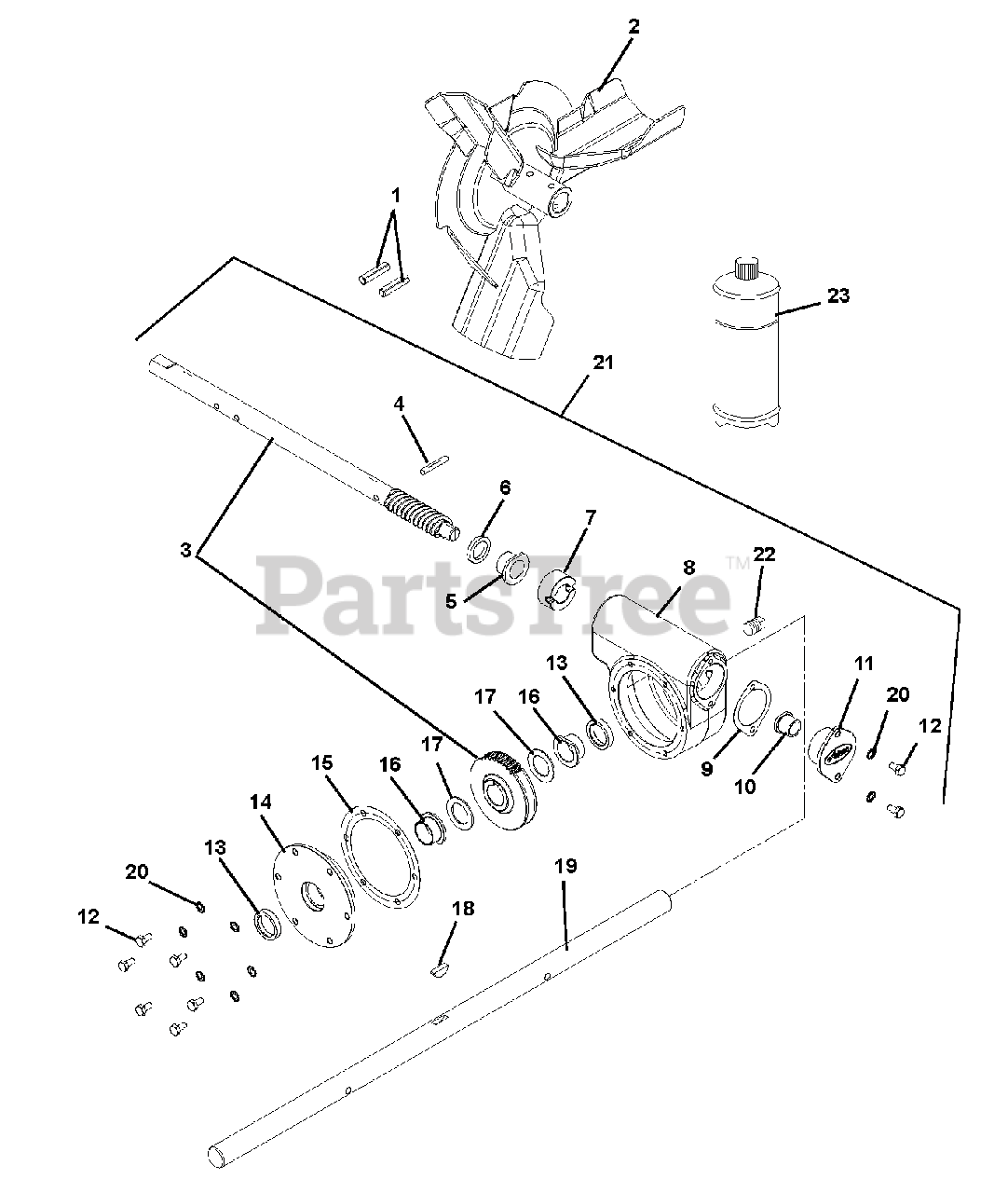

Gear Case Cast Iron Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00485551

IMPELLER, 3 BLADE-14"

$102.99

$

In Stock, Qty 6

0

3

Ariens 52419600

ASSY, WORM SHAFT & GEAR

$162.99

$

In Stock, only 1 left!

0

4

Ariens 05806800

PIN-GRV .250X1.50 TP E

$3.49

$

In Stock, Qty 11

0

5

Ariens 05500008

BSHG-FLG .876 X 1.500 X .750

$10.99

$

In Stock, Qty 12

0

6

Ariens 05600002

SEAL-OIL .875X1.25X.188

$7.99

$

In Stock, Qty 11

0

7

Ariens 00255100

THRUST COLLAR, .875" ID

$6.49

$

In Stock, Qty 11

0

8

Ariens 00388200

GEARCASE, CAST IRON-MACHINED

$

$

Not available

9

Ariens 00425200

GASKET, FRONT - CAST IRON

$3.99

$

In Stock, only 3 left!

0

10

Ariens 05500007

BSHG-FLG .629 X 1.000 X .750

$10.99

$

In Stock, only 3 left!

0

11

Ariens 00388400

COVER, FRONT-CI GEARCASE

$

$

Not available

12

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$11.99

$

In Stock, Qty 20+

0

14

Ariens 00393500

COVER, SIDE-CI GEARCASE

$

$

Not available

15

Ariens 00425100

GASKET, SIDE - CAST IRON

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$9.99

$

In Stock, Qty 16

0

17

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

19

Ariens 00257500

SHAFT, RAKE-26"

Note: (926017, 021, 310, 314)

$125.99

$

Usually ships in 4-12 days

0

19

Ariens 00275000

SHAFT, RAKE-28"

Note: (926016, 022, 311, 315)

$137.99

$

Usually ships in 4-12 days

0

19

Ariens 00276100

SHAFT, RAKE-32"

Note: (926023, 312, 316, 500)

$140.99

$

Usually ships in 4-12 days

0

19

Ariens 00267500

SHAFT, RAKE-36"

Note: (926313, 501)

$

$

Not available

20

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

21

Ariens 52600700

GEAR CASE, CAST IRON-26"

Note: (926017, 021, 310, 314)

$448.99

$

Usually ships in 4-12 days

0

21

Ariens 52600800

GEAR CASE, CAST IRON-28"

Note: (926016, 022, 311, 315)

$407.99

$

Usually ships in 4-12 days

0

21

Ariens 52600900

GEAR CASE, CAST IRON-32"

Note: (926023, 312, 316, 500)

$448.99

$

Usually ships in 4-12 days

0

21

Ariens 52601000

GEAR CASE, CAST IRON-36"

Note: (926313, 501)

$

$

Not available

22

Ariens 00150900

PIPE PLUG, 1/4 NPT

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (9 OZ. CAPACITY)

$18.99

$

In Stock, Qty 20+

0
