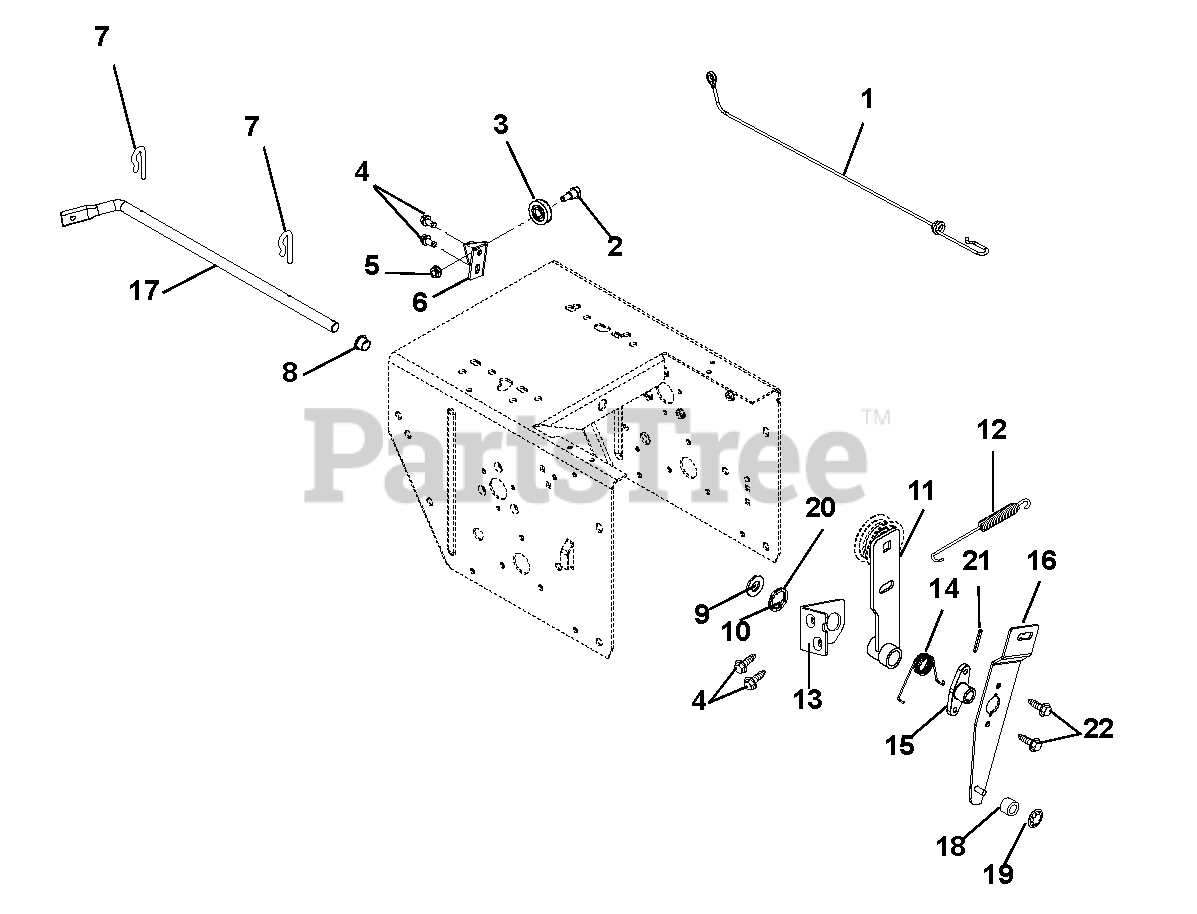

926309 - Ariens 36" Power Brush, Subaru (SN: 040000 & Above) Cables And Controls Parts Diagram

36" Power Brush, Subaru

Cables And Controls Parts Diagram

  • Title

1

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, Qty 13

0

2

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

3

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

4

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

7

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

9

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, Qty 19

0

11

Ariens 00371651

ARM, IDLER-TRACTION
(Superseded to 00371600)

$11.99

$

In Stock, Qty 15

0

12

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

13

Ariens 04511651

BRACKET, SUPPORT
(Superseded to 04511600)

$3.49

$

In Stock, Qty 11

0

14

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

15

Ariens 00384200

HUB, BRAKE ARM

$5.99

$

In Stock, Qty 11

0

16

Ariens 02954400

ARM, IDLER-ATTACHMENT

$77.99

$

In Stock, only 1 left!

0

17

Ariens 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, Qty 16

0

18

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

19

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

20

Ariens 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 8

0

21

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
