926309 - Ariens 36" Power Brush, Subaru (SN: 035000 - 039999) Wheels And Axles Parts Diagram

36" Power Brush, Subaru

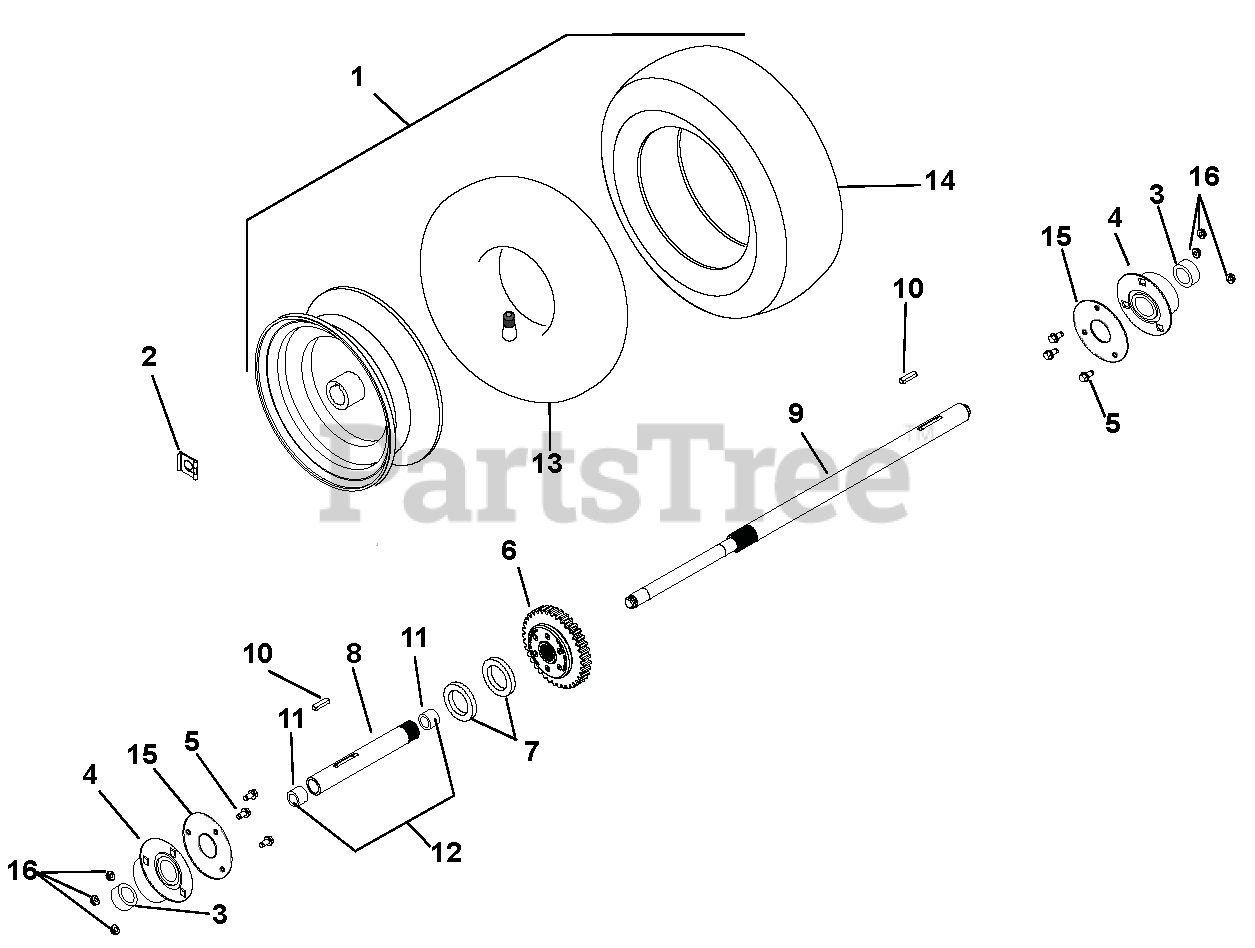

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100231

TIRE/WHEEL, RH 16X6.50-8 DIFF
(Superseded to 07101139)

Note: (Includes Item 14)

$148.99

$

Usually ships in 4-12 days

0

Ariens 07100232

TIRE/WHEEL, LH 16X6.50-8 DIFF
(Superseded to 07101140)

Note: (Includes Item 14)

$148.99

$

In Stock, only 2 left!

0

2

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

3

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.49

$

In Stock, Qty 12

0

4

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$43.99

$

In Stock, Qty 20+

0

5

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

7

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

8

Ariens 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

Note: (Included in Item 12)

$53.99

$

In Stock, Qty 12

0

9

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$96.99

$

In Stock, only 4 left!

0

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: (Included in Item 12)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: (Includes Items 8 and 11)

$53.99

$

In Stock, Qty 12

0

13

Ariens 07108700

TUBE

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 07100728

TIRE, 16X6.50-8 K478

$79.99

$

Usually ships in 4-12 days

0

15

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$

$

Not available

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0
