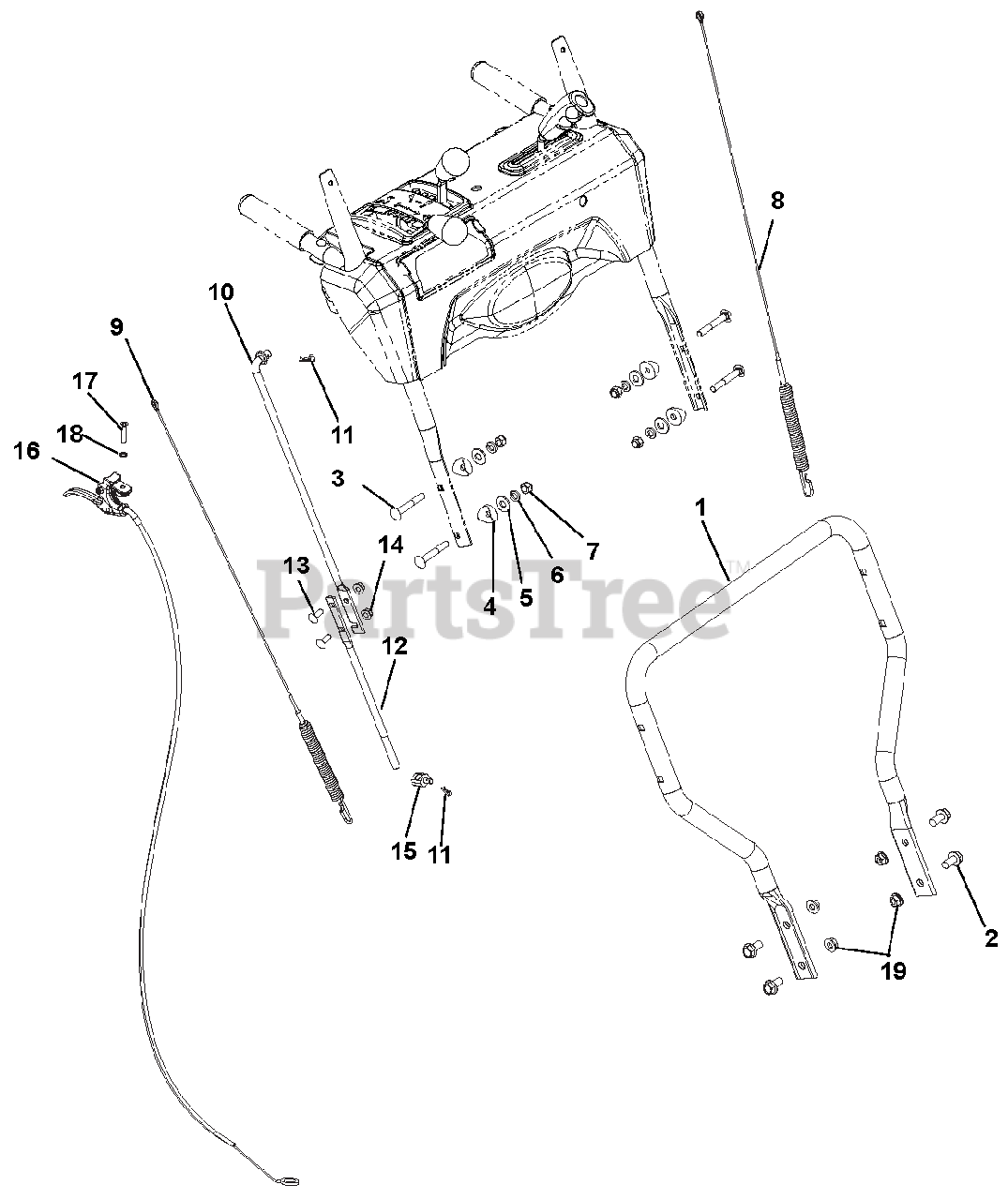

926309 - Ariens 36" Power Brush, Subaru (SN: 035000 - 039999) Handlebars, Levers And Dash Panel Parts Diagram

36" Power Brush, Subaru

Handlebars, Levers And Dash Panel Parts Diagram

  • Title

1

Ariens 00373251

HANDLEBAR, LOWER

$100.99

$

Usually ships in 4-12 days

0

2

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

9

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$28.99

$

In Stock, Qty 20+

0

10

Ariens 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

11

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 04343867

ROD, SHIFT - LOWER

$24.99

$

Usually ships in 4-12 days

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

16

Ariens 21602800

CABLE, CONTROL SWING-MCD
(Superseded to 06900523)

$68.99

$

In Stock, Qty 8

0

17

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
