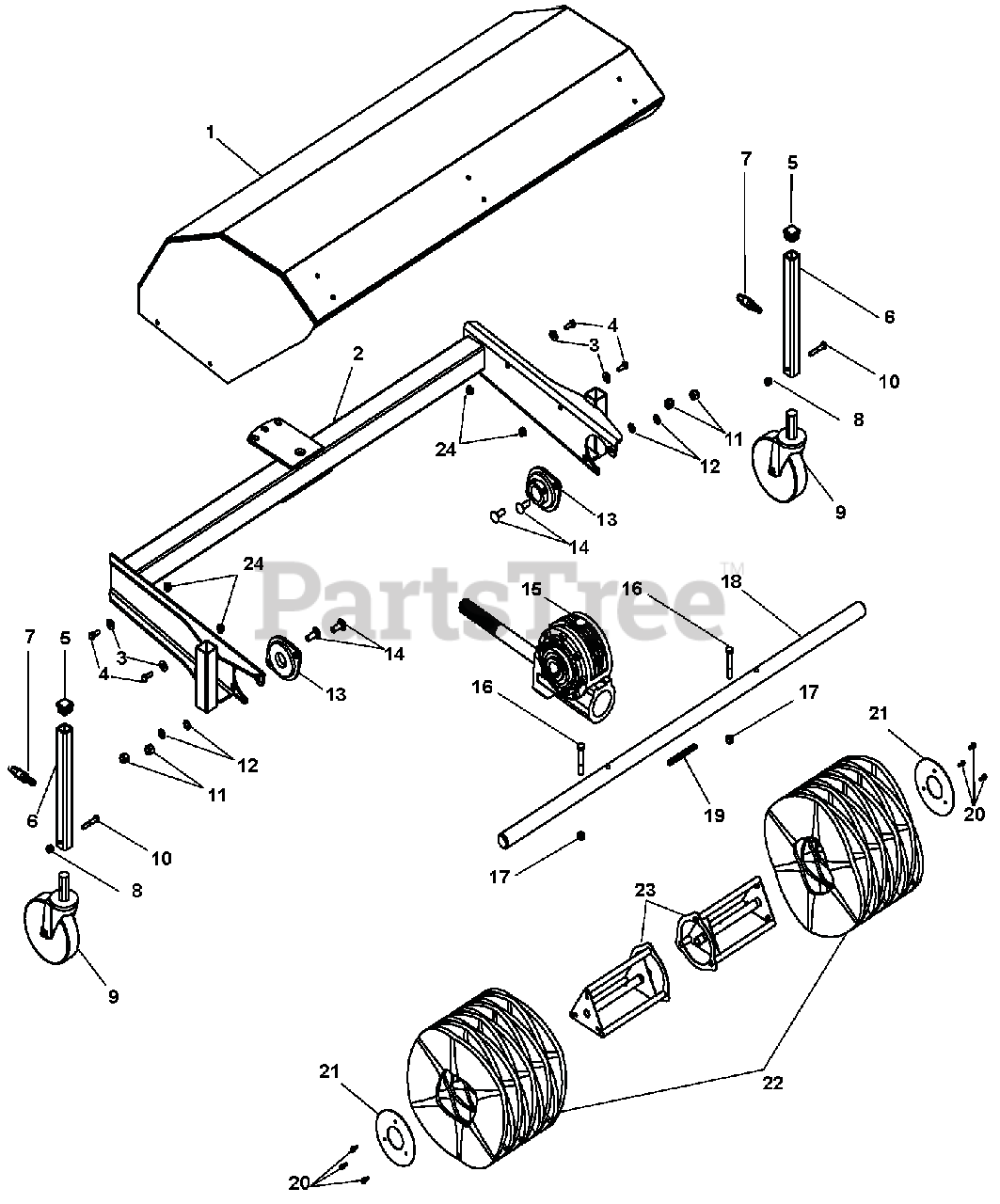

926309 - Ariens 36" Power Brush, Subaru (SN: 035000 - 039999) Brush Head Parts Diagram

36" Power Brush, Subaru

Brush Head Parts Diagram

  • Title
1

Ariens 52609400

HOOD, 36" BRUSH - W/DECALS

$610.99

$

Usually ships in 4-12 days

0

2

Ariens 21601400

FRAME, BRUSH-W.U. 3' BRUSH

$

$

Not available

3

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 21601100

PLUG, SQUARE-1" PLASTIC
(Superseded to 00166800)

$

$

Not available

6

Ariens 21601600

LEG, CASTER WHEEL

$56.99

$

Usually ships in 4-12 days

0

7

Ariens 21601000

KNOB, BLACK

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 21602000

CASTER WHEEL,5"X1.250" 7/8 STE

$

$

Not available

10

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

11

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 21601900

WASHER, SAE 3/8

$

$

Not available

13

Ariens 21601200

BEARING, 1 1/8" FLANGETTE
(Superseded to 03733900)

$69.99

$

Usually ships in 4-12 days

0

14

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Ariens 21601300

GEARBOX, WORM ALUMINUM-8.25:1
(Superseded to 04542000)

$445.99

$

Usually ships in 4-12 days

0

16

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 21601700

SHAFT, THRU 1-1/8 X 3' MCD
(Superseded to 04594500)

$130.99

$

Usually ships in 4-12 days

0

19

Ariens 21601800

KEY, SQUARE .25X.25X3 LG
(Superseded to 06600121)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 21600800

HHCS, SERRATED FLANGE 3/8-16X1
(Superseded to 07001823)

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 21600700

PLATE, END RETAINER
(Superseded to 04594651)

$

$

Not available

22

Ariens 52609500

KIT, BRISTLE - SET OF 18
(Superseded to 72602600)

$407.99

$

In Stock, only 2 left!

0

23

Ariens 52610900

KIT-36" BRUSH DRV CORE REPL
(Superseded to 52612900)

Note: (Contains part numbers 16 and 17)

$374.99

$

Usually ships in 4-12 days

0

24

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0
