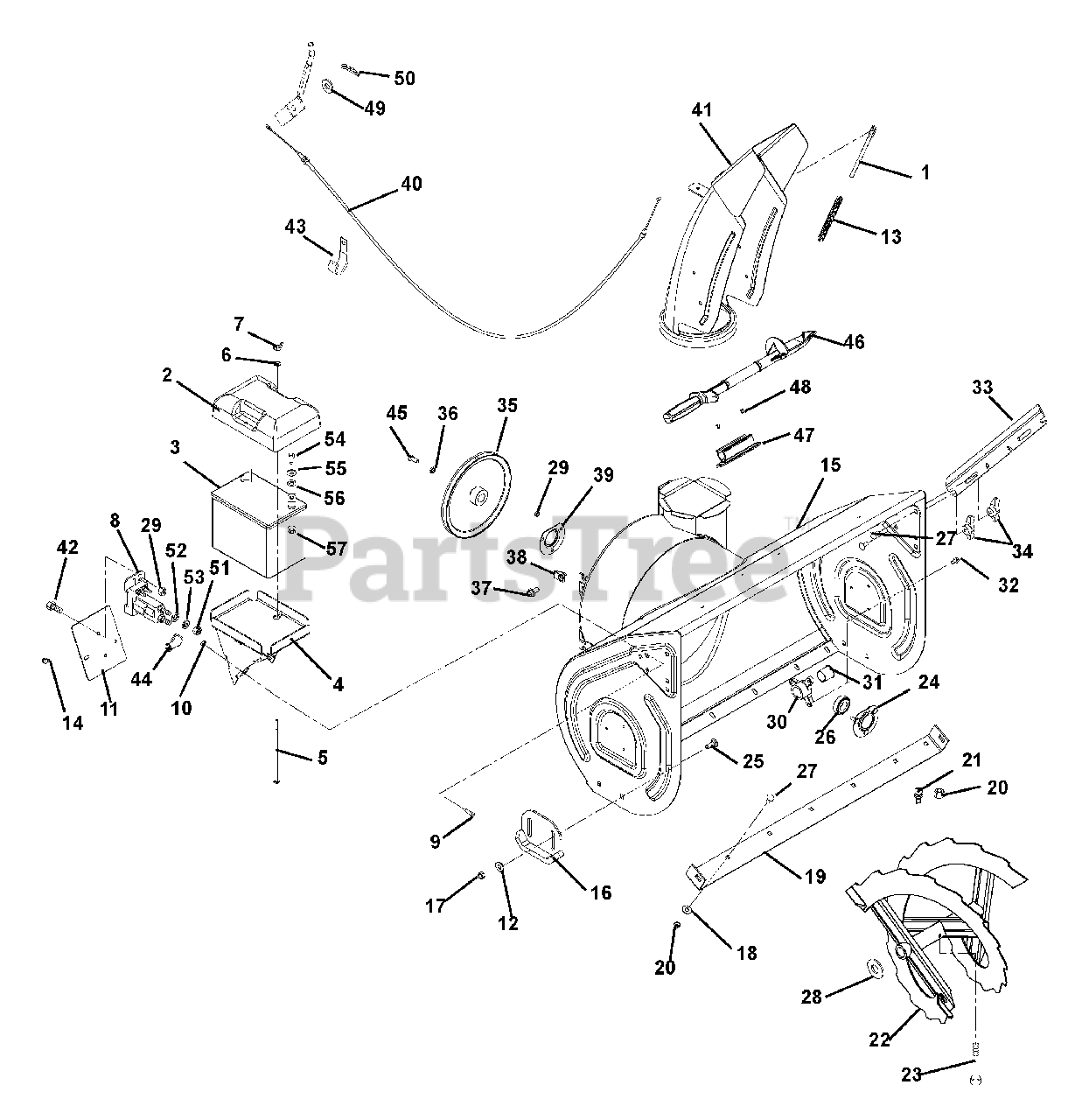

926303 (1328 LE) - Ariens 28" Snow Blower, 13hp Tecumseh (SN: 000184 & Above) Chute, Auger And Battery Parts Diagram

28" Snow Blower, 13hp Tecumseh

Chute, Auger And Battery Parts Diagram

  • Title

1

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 3 left!

0

2

Ariens 04912900

COVER, BATTERY

Note: (500, 501)

$11.99

$

Usually ships in 4-12 days

0

3

Battery Recommend 240 Minimum CCA at 0° F. Size U1R or U1L

Note: (500, 501)

$

$

Not available

4

Ariens 02488659

TRAY, BATTERY
(Superseded to 52422200)

Note: (500, 501)

$122.99

$

Usually ships in 4-12 days

0

5

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

Note: (500, 501)

$4.49

$

In Stock, only 2 left!

0

6

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (500, 501)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

Note: (500, 501)

$4.99

$

In Stock, Qty 19

0

8

Ariens 03679000

SOLENOID
(Superseded to 59223400)

Note: (500, 501)

$60.99

$

In Stock, Qty 20+

0

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (500, 501)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (500, 501)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 02484459

COVER, SOLENOID

Note: (500, 501)

$15.99

$

In Stock, only 1 left!

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, Qty 8

0

14

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (500, 501)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 52600200

HOUSING, BLOWER-26" W/DECAL
(Superseded to 52608400)

Note: (001, 004, 005, 101, 300, 301, 504)

$

$

Not available

15

Ariens 52600300

HOUSING, BLOWER-28" W/DECAL
(Superseded to 52608500)

Note: (002, 006, 102, 303, 304)

$448.99

$

In Stock, only 1 left!

0

15

Ariens 52600400

HOUSING, BLOWER-32" W/DECAL
(Superseded to 52608600)

Note: (003, 103, 302)

$

$

Not available

15

Ariens 52600500

HOUSING, BLOWER-32"BAT W/DECAL

Note: (500)

$

$

Not available

15

Ariens 52600600

HOUSING, BLOWER-36" W/DECAL
(Superseded to 52608800)

Note: (501)

$

$

Not available

16

Ariens 02483059

RUNNER, SKID SHOE-1/2" FLANGE

Note: (001, 004, 005, 101, 300, 301, 504)

$37.99

$

In Stock, Qty 5

0

16

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

Note: (001, 002, 003, 101, 102, 103, 302, 303, 304, 504)

$19.99

$

In Stock, Qty 20+

0

17

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

Note: (004, 005, 006, 300, 301, 500, 501)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (003, 103, 302, 500, 501)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00268659

BLADE, SCRAPER-26"
(Superseded to 04182259)

Note: (001, 004, 005, 101, 300, 301, 504)

$34.99

$

In Stock, Qty 17

0

19

Ariens 00175059

BLADE, SCRAPER-28"
(Superseded to 04182159)

Note: (002, 006, 102, 303, 304)

$39.99

$

In Stock, Qty 16

0

19

Ariens 00174959

BLADE, SCRAPER-32"
(Superseded to 04182059)

Note: (003, 103, 302, 500) (011)

$54.99

$

In Stock, Qty 14

0

19

Ariens 00268859

BLADE, SCRAPER-36"
(Superseded to 04181659)

Note: (501)

$51.99

$

In Stock, only 4 left!

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (001, 002, 004, 005, 006, 101, 102, 300, 301, 304, 504)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (003, 103, 302, 500, 501)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

22

Ariens 52421100

RAKE, LH-26"(1 ID X 15.75 OD)

Note: (Includes Item 20) (001, 004, 005, 101, 300, 301, 504)

$284.99

$

Usually ships in 4-12 days

0

22

Ariens 52421200

RAKE, RH-26" (1 ID X 15.75 OD)

Note: (Includes Item 20) (001, 004, 005, 101, 300, 301, 504)

$284.99

$

Usually ships in 4-12 days

0

22

Ariens 52421300

RAKE, LH-28" (1 ID X 15.75 OD)

Note: (Includes Item 20) (002, 006, 102, 303, 304)

$270.99

$

Usually ships in 4-12 days

0

22

Ariens 52421400

RAKE, RH-28" (1 ID X 15.75 OD)

Note: (Includes Item 20) (002, 006, 102, 303, 304)

$270.99

$

Usually ships in 4-12 days

0

22

Ariens 52421500

RAKE, LH-32" (1 ID X 15.75 OD)

Note: (Includes Item 20) (003, 103, 302, 500)

$298.99

$

Usually ships in 4-12 days

0

22

Ariens 52421600

RAKE, RH-32" (1 ID X 15.75 OD)

Note: (Includes Item 20) (003, 103, 302, 500)

$244.99

$

Usually ships in 4-12 days

0

22

Ariens 52421700

RAKE, LH-36" (1ID X 15.75 OD)

Note: (Includes Item 20) (501)

$297.99

$

Usually ships in 4-12 days

0

22

Ariens 52421800

RAKE, RH-36" (1 ID X 15.75 OD)

Note: (Includes Item 20) (501)

$

$

Not available

23

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 20)

$4.99

$

In Stock, Qty 20+

0

24

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 16

0

25

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 20+

0

27

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (001, 002, 004, 005, 006, 101, 102, 300, 301, 304, 504) (007, 008, 009, 010, 012)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (003, 103, 302, 500, 501)

$2.49

$

In Stock, Qty 20+

0

28

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

31

Ariens 05500011

BSHG-FLG, SPLIT NYLINER 1.0"ID
(Superseded to 05500030)

$6.99

$

In Stock, Qty 20+

0

32

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 00262159

CUTTER, DRIFT

$22.99

$

Usually ships in 4-12 days

0

34

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

35

Ariens 00258500

PULLEY, 4L W/HUB, .87 X 8.5
(Superseded to 52610800)

$60.99

$

Usually ships in 4-12 days

0

36

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

39

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

40

Ariens 06900018

CABLE, DEFLECTOR
(Superseded to 06900406)

$45.99

$

In Stock, Qty 17

0

41

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

$159.99

$

Usually ships in 4-12 days

0

42

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

Note: (500, 501)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

44

Ariens 07533200

BOOT, EYELET TERMINAL

Note: (500, 501)

$3.49

$

In Stock, only 3 left!

0

45

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

47

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

48

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

49

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 12

0

51

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

52

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

53

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

56

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

57

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0
