926302 (ST 1332 LE) - Ariens 32" Snow Blower, 13hp Tecumseh (SN: 003501 & Above) Gear Case Aluminum Parts Diagram

32" Snow Blower, 13hp Tecumseh

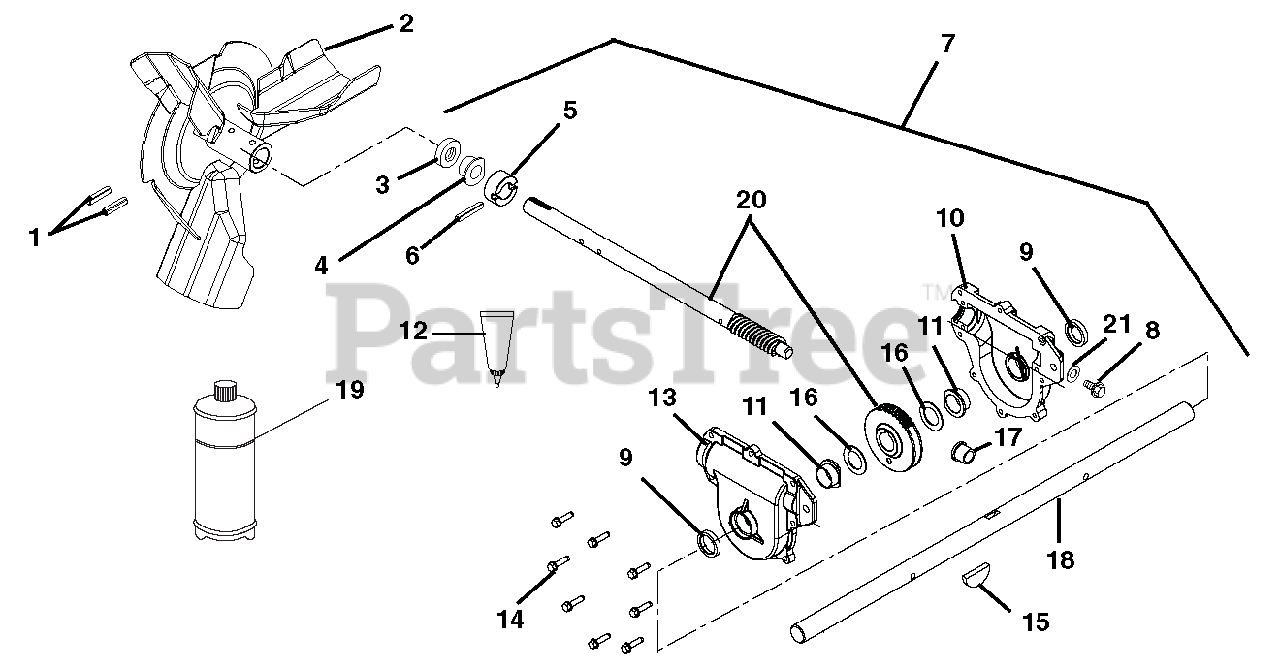

Gear Case Aluminum Parts Diagram

  • Title

1

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00485551

IMPELLER, 3 BLADE-14"

$102.99

$

In Stock, Qty 6

0

3

Ariens 05600001

SEAL-OIL .875X1.375X.25 RBR OD

$5.99

$

In Stock, Qty 20+

0

4

Ariens 05500008

BSHG-FLG .876 X 1.500 X .750

$10.99

$

In Stock, Qty 12

0

5

Ariens 00255100

THRUST COLLAR, .875" ID

$6.49

$

In Stock, Qty 11

0

6

Ariens 05806800

PIN-GRV .250X1.50 TP E

$3.49

$

In Stock, Qty 11

0

7

Ariens 52607400

GEAR CASE, 32" ALUMINUM

Note: (Contains Items 3-6, 8-18, 20, 22)

$324.99

$

Usually ships in 4-12 days

0

8

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$3.49

$

In Stock, only 1 left!

0

9

Ariens 05618800

SEAL-OIL 1.000X1.375X.250

$11.99

$

In Stock, Qty 20+

0

10

Ariens 00254100

GEARCASE, ALUMINUM, LH
(Superseded to 52104900)

$86.99

$

Usually ships in 4-12 days

0

11

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$9.99

$

In Stock, Qty 16

0

12

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$17.99

$

In Stock, Qty 9

0

13

Ariens 00254000

GEARCASE, ALUMINUM, RH

$96.99

$

Usually ships in 4-12 days

0

14

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

16

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05500007

BSHG-FLG .629 X 1.000 X .750

$10.99

$

In Stock, only 3 left!

0

18

Ariens 03392500

SHAFT, RAKE-32"

$106.99

$

Usually ships in 4-12 days

0

19

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (9 OZ. CAPACITY)

$18.99

$

In Stock, Qty 20+

0

20

Ariens 52419600

ASSY, WORM SHAFT & GEAR

$162.99

$

In Stock, only 1 left!

0

21

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, Qty 8

0
