926091 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Engine, Frame and Belt Drive Parts Diagram

Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI

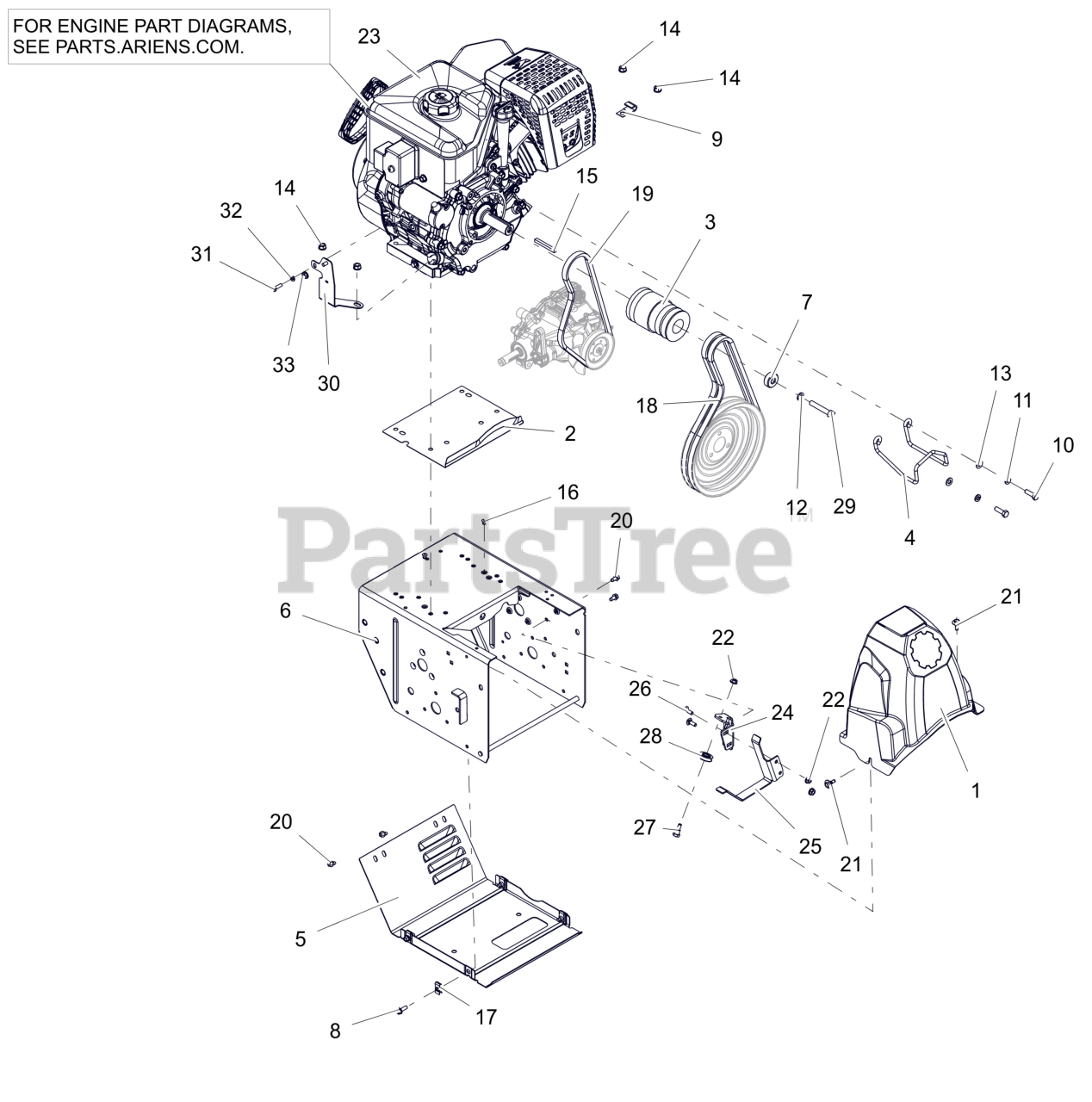

Engine, Frame and Belt Drive Parts Diagram

  • Title

1

Ariens 09382100

COVER, BELT

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

$193.99

$

Usually ships in 4-12 days

0

4

Ariens 05273300

FINGER, BELT

$25.99

$

In Stock, only 1 left!

0

5

Ariens 04516659

COVER, BOTTOM - VENTILATED

$43.99

$

Usually ships in 4-12 days

0

6

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$194.99

$

Usually ships in 4-12 days

0

7

Ariens 05501403

BSHG, SPCR .406 X 1.250 X .500

$18.99

$

Usually ships in 0 days

0

8

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

10

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$

$

Not available

11

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

16

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

17

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$53.99

$

In Stock, Qty 20+

0

19

Ariens 07200630

V-BELT, 4L-WRAPPED

$26.99

$

In Stock, only 1 left!

0

20

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 08201218

ENGINE,EFI420 GEN3 120V/60W
(Superseded to 20001536)

$967.99

$

Usually ships in 4-12 days

0

24

Ariens 04434351

BRACKET, CLUTCH CABLE

$

$

Not available

25

Ariens 04519951

FINGER, BELT - FLAT

$

$

Not available

26

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 18

0

27

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

28

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

29

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

30

Ariens 09482300

WLDMT- LG BLOCK FUSE MOUNT

$25.99

$

Usually ships in 4-12 days

0

31

Ariens 05901610

BLT,HEX M6-1X20 G8.8 ZC120

$

$

Not available

32

Ariens 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0
