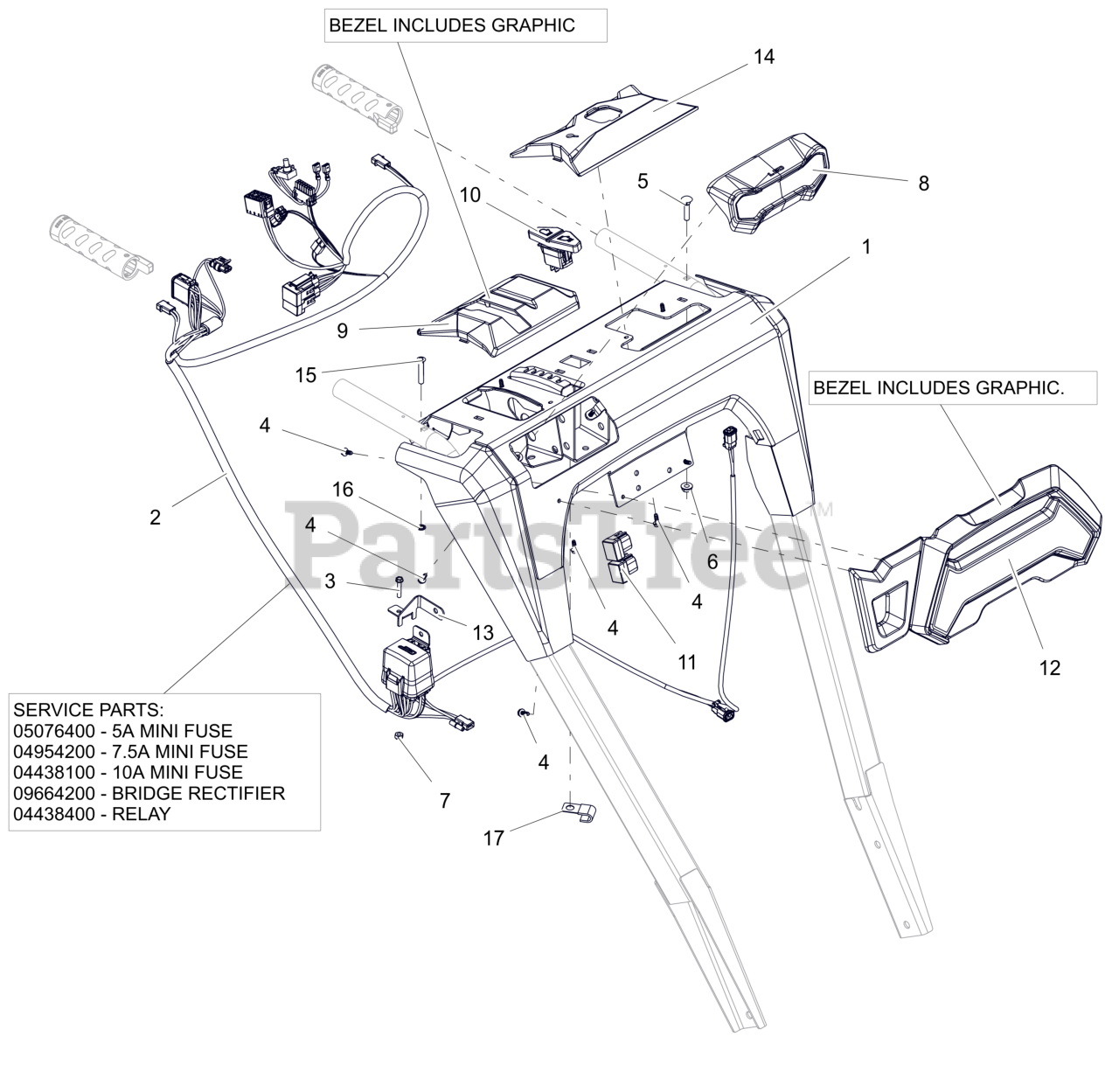

926091 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Dash Parts Diagram

Hydro Pro 28" Track Snow Blower, Ariens AX 420cc EFI

Dash Parts Diagram

  • Title

1

Ariens 52619000

PANEL, DASH HYDRO EFI ECR TRACK

$293.99

$

Usually ships in 4-12 days

0

2

Ariens 09391600

HARNESS-WIRE- LT HG EFI ECHUTE

$310.99

$

Usually ships in 4-12 days

0

2

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 04954200

FUSE, 7.5 AMP MINI-ATC

Note: Component Service Part

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 04438100

FUSE,10 AMP MINI-ATC

Note: Component Service Part

$4.99

$

Usually ships in 4-12 days

0

2

Ariens 09664200

RECTIFIER, BRIDGE

Note: Component Service Part

$45.99

$

Usually ships in 4-12 days

0

2

Ariens 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$19.99

$

In Stock, only 1 left!

0

3

Ariens 05901838

BLT, HWH #10-24X1.00 ZCC

$1.99

$

Usually ships in 4-12 days

0

4

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

6

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 09382600

HEADLIGHT ASM- LED

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 52618500

BEZEL, SHIFT HYDRO TRACK DECAL

$61.99

$

Usually ships in 4-12 days

0

10

Ariens 09395000

SWITCH- ROCKER SPST-ON/OFF

$19.99

$

In Stock, only 4 left!

0

11

Ariens 09444100

PACK, DIODE

$34.99

$

Usually ships in 4-12 days

0

12

Ariens 09467800

BEZEL- LARGE - PROFESSIONAL

$28.99

$

In Stock, only 1 left!

0

13

Ariens 09482400

BRKT, MOUNT RECTIFIER

$14.99

$

Usually ships in 4-12 days

0

14

Ariens 52618600

BEZEL, OPERATOR EFI DECAL

$64.99

$

Usually ships in 4-12 days

0

15

Ariens 06100236

SCR,OVAL .25-20X1.50 ZCC

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, only 4 left!

0
