926088 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Dash Parts Diagram

Hydro 36" Power Brush, Kohler

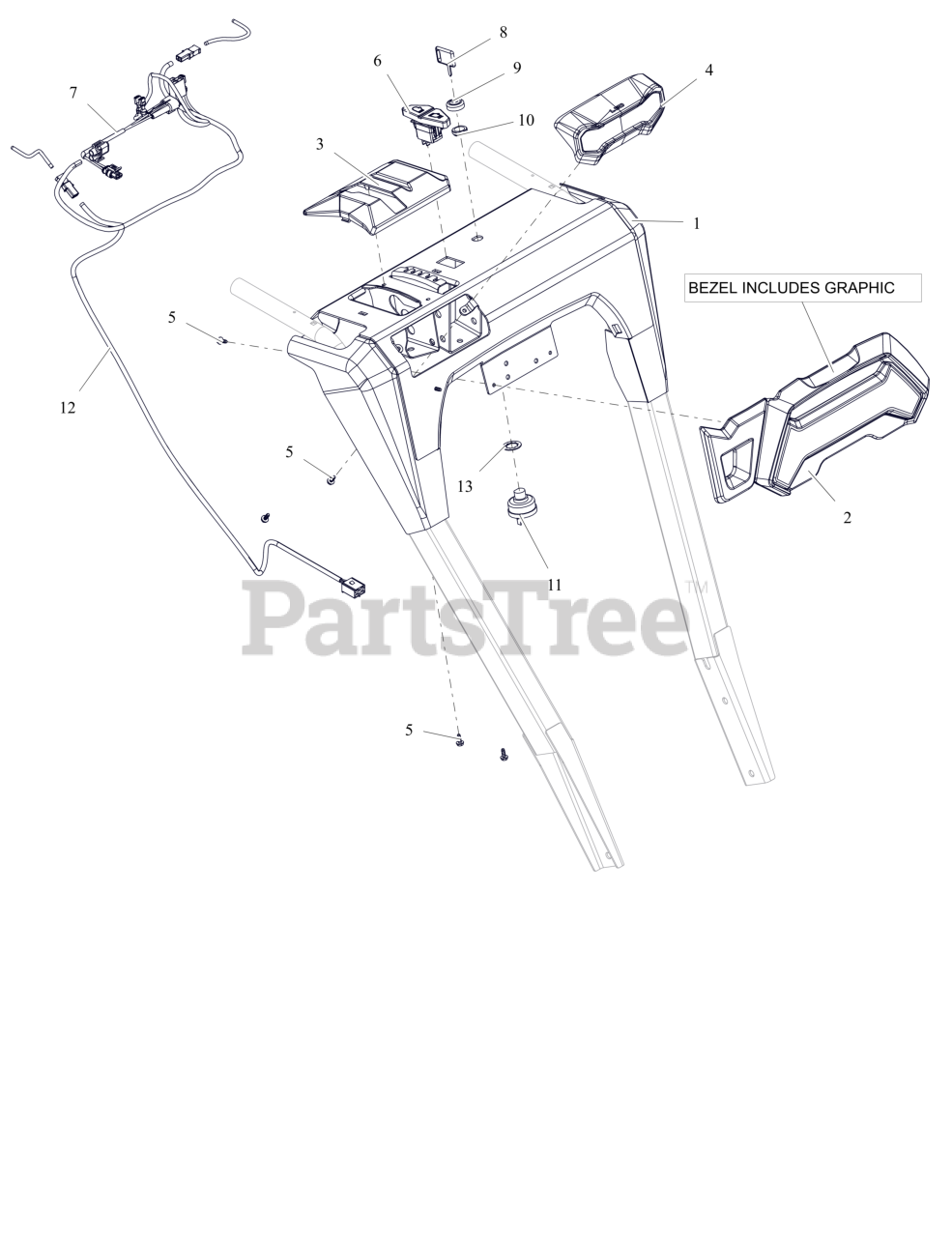

Dash Parts Diagram

  • Title

1

Ariens 52617100

PANEL, DASH-12V PB W/DECAL

$387.99

$

Usually ships in 4-12 days

0

2

Ariens 09481000

BEZEL- LARGE - POWER BRUSH

$

$

Not available

3

Ariens 52618200

BEZEL, SHIFT HYDRO PIVOT DECAL

$

$

Not available

4

Ariens 09382600

HEADLIGHT ASM- LED

$64.99

$

Usually ships in 4-12 days

0

5

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 09395000

SWITCH- ROCKER SPST-ON/OFF

$19.99

$

In Stock, Qty 6

0

7

Ariens 09424800

HARNESS- WIRE - LED LT JUMPER

$25.99

$

Usually ships in 4-12 days

0

8

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

9

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

11

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 6

0

12

Ariens 04974000

HARNESS,ELEC - HANDLEBAR 12V

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$3.99

$

Usually ships in 4-12 days

0
