926087 - Ariens 36" Power Brush, Kohler (SN: 000101 & Above) Handlebars Parts Diagram

36" Power Brush, Kohler

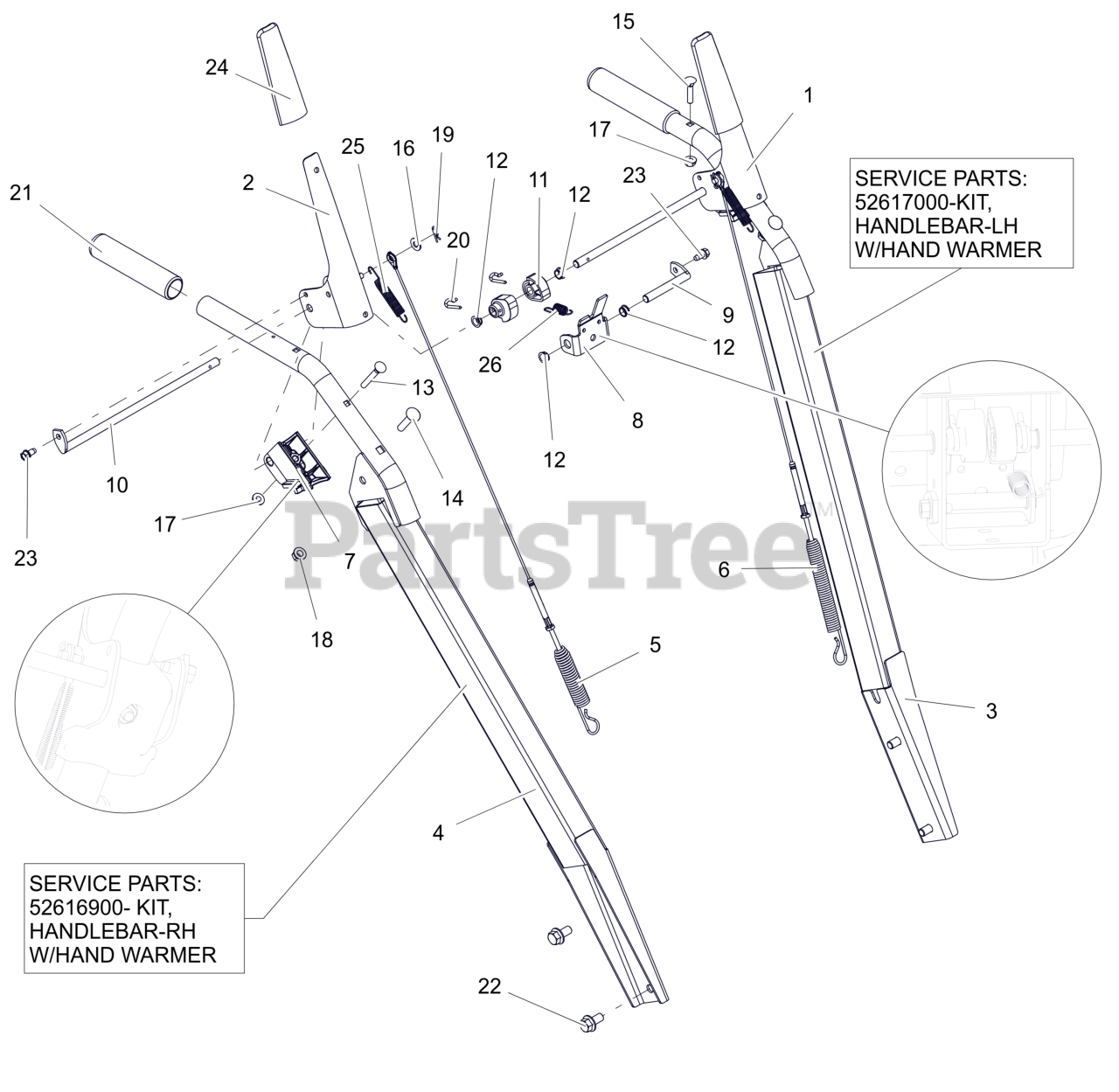

Handlebars Parts Diagram

  • Title
1

Ariens 04310451

LEVER, CLUTCH-LH

$28.99

$

Usually ships in 4-12 days

0

1

Ariens 52617000

KIT, HANDLEBAR-LH W/WARM GRIP

Note: Component Service Assembly

$

$

Not available

2

Ariens 04310551

LEVER, CLUTCH-RH

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 52616900

KIT, HANDLEBAR-RH W/WARM GRIP

Note: Component Service Assembly

$129.99

$

Usually ships in 4-12 days

0

3

Ariens 04878651

HANDLEBAR, HEAVYDUTY-PRO LH

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 04878751

HANDLEBAR, HEAVYDUTY-PRO-RH

$85.99

$

Usually ships in 4-12 days

0

5

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$28.99

$

In Stock, Qty 20+

0

6

Ariens 06900502

CABLE, UPPER TRACTION

$31.99

$

In Stock, Qty 20+

0

7

Ariens 05193600

BLOCK, CLUTCH PADDLE

$

$

Not available

8

Ariens 04320400

BRACKET, INTERLOCK ARM

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 04320500

ROD, PIVOT - INTERLOCK

$19.99

$

In Stock, only 1 left!

0

10

Ariens 04320600

ROD, PADDLE MOUNT - PRO

$

$

Not available

11

Ariens 04322100

CAM, INTERLOCK

$3.99

$

In Stock, Qty 7

0

12

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

13

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

In Stock, only 1 left!

0

14

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

16

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 15

0

20

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

21

Ariens 07500438

GRIP, HANDLEBAR

$9.49

$

Usually ships in 4-12 days

0

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07500440

COVER, PADDLE
(Superseded to 07500533)

$

$

Not available

25

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, Qty 12

0

26

Ariens 08337000

SPRING-EXT .047X.438X1.45

$5.99

$

In Stock, Qty 20+

0
