926084 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Ariens AX 420cc (SN: 000101 & Above) Discharge Chute Parts Diagram

Hydro Pro 28" Track Snow Blower, Ariens AX 420cc

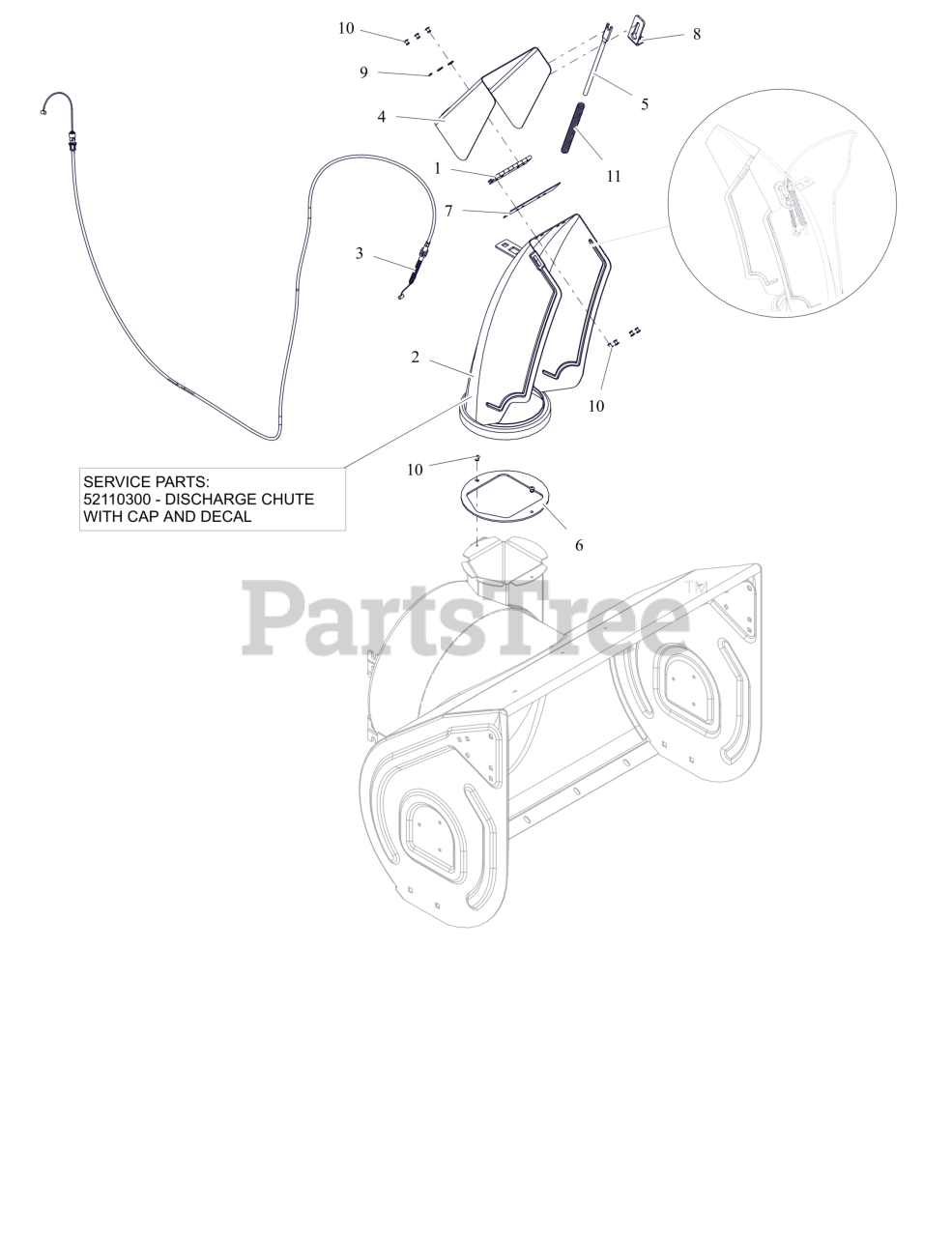

Discharge Chute Parts Diagram

  • Title
1

$11.99

$

In Stock, only 1 left!

0

2

Ariens 04750959

CHUTE,DISCHARGE,RMT,ID

$79.99

$

Usually ships in 4-12 days

0

2

Ariens 52110300

CHUTE, DISCHARGE W/CAP

Note: Component Service Assembly

$115.99

$

Usually ships in 4-12 days

0

3

Ariens 06900608

CABLE, E-CHUTE CAP

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 52110100

CAP, LARGE REMOTE W/DECAL

$45.99

$

In Stock, only 1 left!

0

5

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 2 left!

0

6

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 00628400

CAP SEAL 5.50

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 05108359

BRACKET, ANCHOR-CHUTE CABLE
(Superseded to 05108300)

$3.49

$

In Stock, only 1 left!

0

9

Ariens 06401029

WSHR,FLT .196X.500X.066 ZCC

$

$

Not available

10

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 7

0

11

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, Qty 6

0
