926081 (PRO 36) - Ariens Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Discharge Chute Controls Parts Diagram

Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI

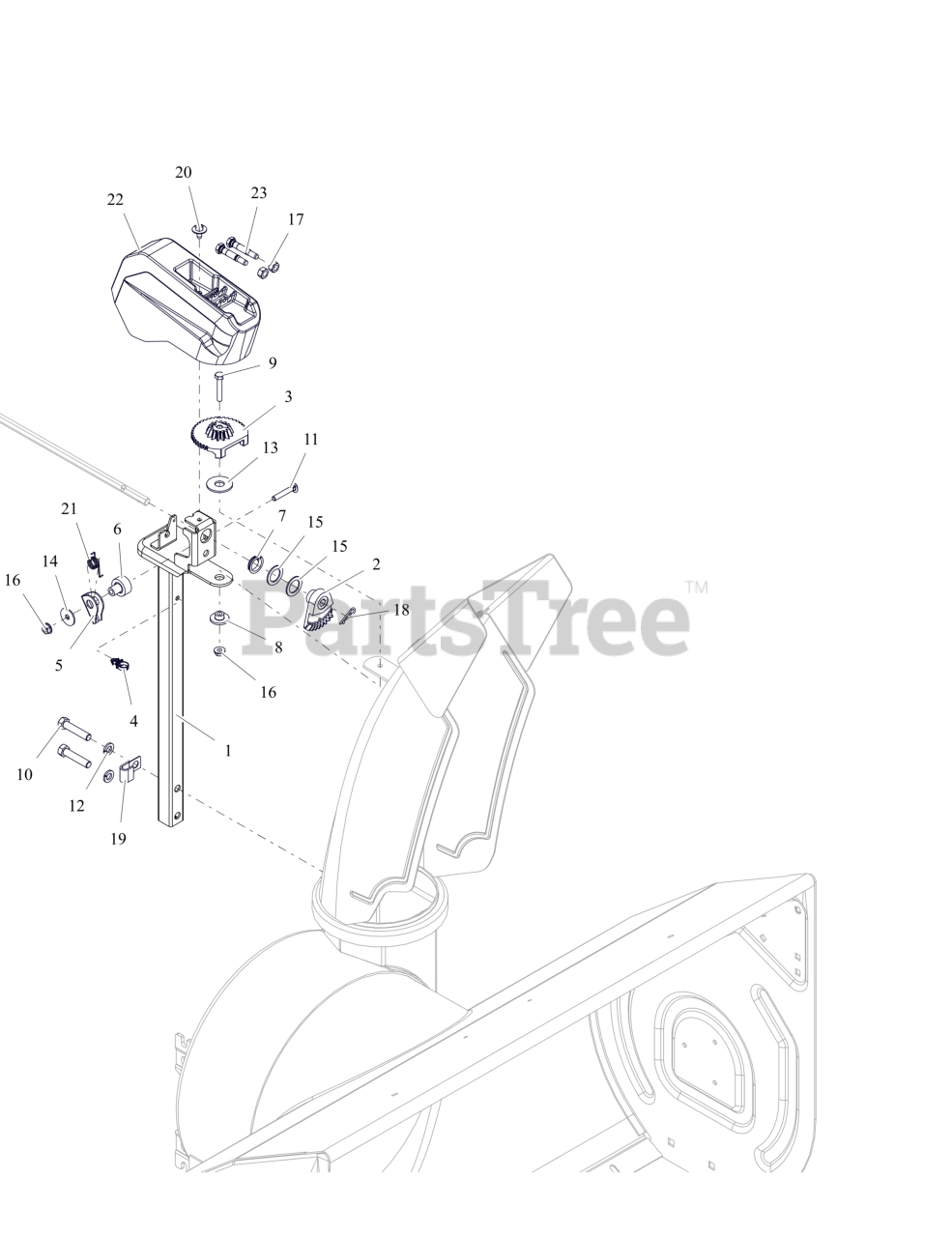

Discharge Chute Controls Parts Diagram

  • Title

1

Ariens 03897451

PEDESTAL, CHUTE - QUICK STICK

$41.99

$

Usually ships in 4-12 days

0

2

Ariens 00184300

GEAR, CHUTE-ACTUATION

$22.99

$

In Stock, Qty 20+

0

3

Ariens 03898700

GEAR, CHUTE
(Superseded to 09478600)

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 04451600

CLIP, CABLE GUIDE

$2.49

$

In Stock, only 2 left!

0

5

Ariens 05081900

ARM, LOCKING

$4.99

$

In Stock, Qty 20+

0

6

Ariens 05500024

BUSHING, LOCK ARM

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

8

Ariens 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, Qty 18

0

9

Ariens 05901739

BLT, HEX .25-20X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05901809

BLT, HEX .38-16X1.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06200331

BLT, RHSN .25-20X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06400904

WSHR-FLT-NYL .515X1.375X.093

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06401020

WSHR,FLT .281X1.000X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06401119

WSHR, FLT .754X1.125X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

20

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 4 left!

0

21

Ariens 08300014

SG-TORS

$1.49

$

In Stock, Qty 20+

0

22

Ariens 09382200

COVER, CHUTE PEDESTAL

$11.99

$

Usually ships in 4-12 days

0

23

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY (INCLUDES NUT)

$4.99

$

In Stock, Qty 20+

0
