926081 (PRO 36) - Ariens Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Dash Parts Diagram

Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI

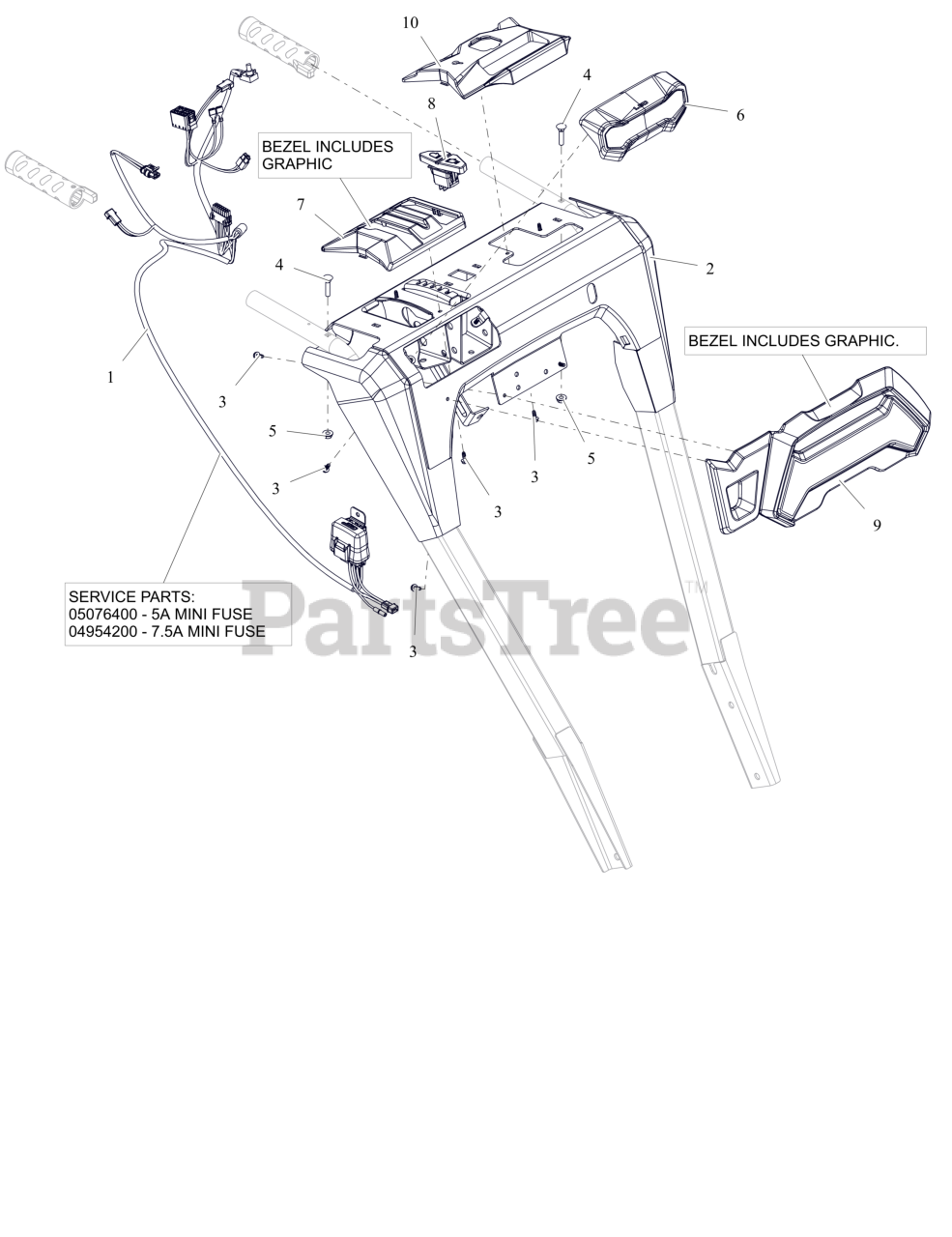

Dash Parts Diagram

  • Title

1

Ariens 09391400

HARNESS- WIRE - LT HG EFI

$

$

Not available

1

Ariens 05076400

FUSE, 5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

1

Ariens 04954200

FUSE, 7.5 AMP MINI-ATC

Note: Component Service Part

$

$

Not available

2

Ariens 52617900

PANEL, DASH-HYDRO EFI W/DECAL

$

$

Not available

3

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

6

Ariens 09382600

HEADLIGHT ASM- LED

$64.99

$

Usually ships in 4-12 days

0

7

Ariens 09383200

BEZEL, SHIFT - HYDRO

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 09395000

SWITCH- ROCKER SPST-ON/OFF

$19.99

$

In Stock, Qty 5

0

9

Ariens 09467800

BEZEL- LARGE - PROFESSIONAL

$28.99

$

In Stock, only 1 left!

0

10

Ariens 52618800

BEZEL, OPERATOR EFI CHUTE DECAL

$

$

Not available
