926079 (PRO 32) - Ariens Hydro Pro 32" Track Snow Blower, Ariens AX 420cc (SN: 005000 - 019999) Brake And Idlers Parts Diagram

Hydro Pro 32" Track Snow Blower, Ariens AX 420cc

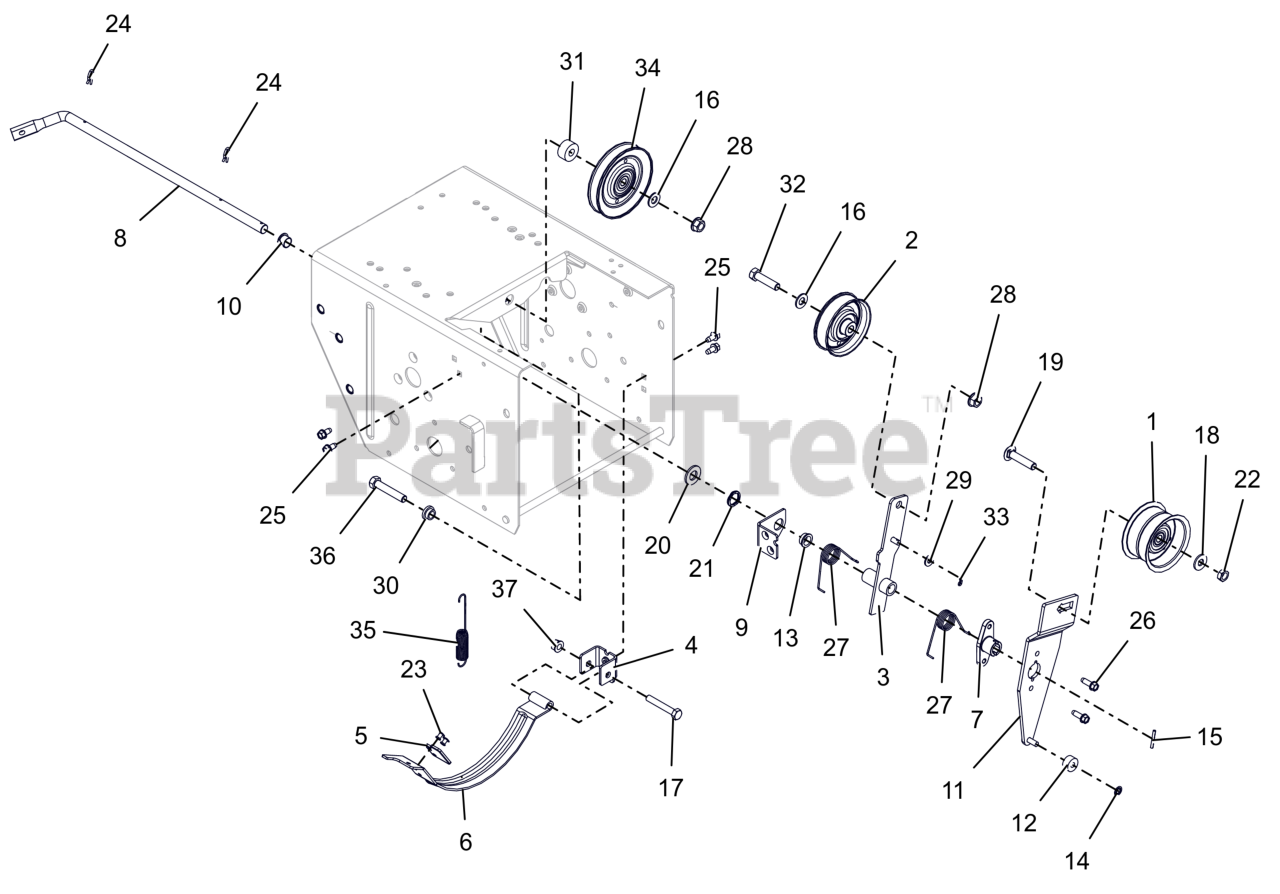

Brake And Idlers Parts Diagram

  • Title

1

Ariens 07348900

IDLER, FLANGE -2.75 OD X .375 ID

$

$

Not available

2

Ariens 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

In Stock, only 1 left!

0

3

Ariens 04424151

ARM, TRACTION CLUTCH

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 9

0

6

Ariens 00374900

ARM, BRAKE-ATTACHMENT

$25.99

$

Usually ships in 4-12 days

0

7

Ariens 00384200

HUB, BRAKE ARM

$5.99

$

In Stock, Qty 11

0

8

Ariens 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, Qty 16

0

9

Ariens 04511651

BRACKET, SUPPORT
(Superseded to 04511600)

$3.49

$

In Stock, Qty 11

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

11

Ariens 05144200

ARM, IDLER - ATTACHMENT

$22.99

$

Usually ships in 4-12 days

0

12

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

13

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, Qty 19

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

15

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06200329

BLT, RHSSN .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

20

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 8

0

22

Ariens 06500914

NUT-LK-CTR-JAM .375-16 GB ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

24

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

27

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

28

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05501122

BSHG, FLANGE .391X.56X.313X.75

$6.99

$

Usually ships in 4-12 days

0

31

Ariens 05501123

BSHG,POCKET .391X.570X1.0X.450

$11.99

$

Usually ships in 4-12 days

0

32

Ariens 05901928

BLT, HEX .38-16X1.50 G5 ZCC

$1.49

$

In Stock, Qty 14

0

33

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 13

0

34

Ariens 07300528

SHV, .38"ID X 4.00"OD V-IDLER

$39.99

$

In Stock, only 2 left!

0

35

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

36

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, only 1 left!

0

37

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0
