926078 (PRO 28) - Ariens Hydro Pro 28" Track Snow Blower, Ariens AX 420cc (SN: 020000 & Above) Engine Frame and Belt Drive Parts Diagram

Hydro Pro 28" Track Snow Blower, Ariens AX 420cc

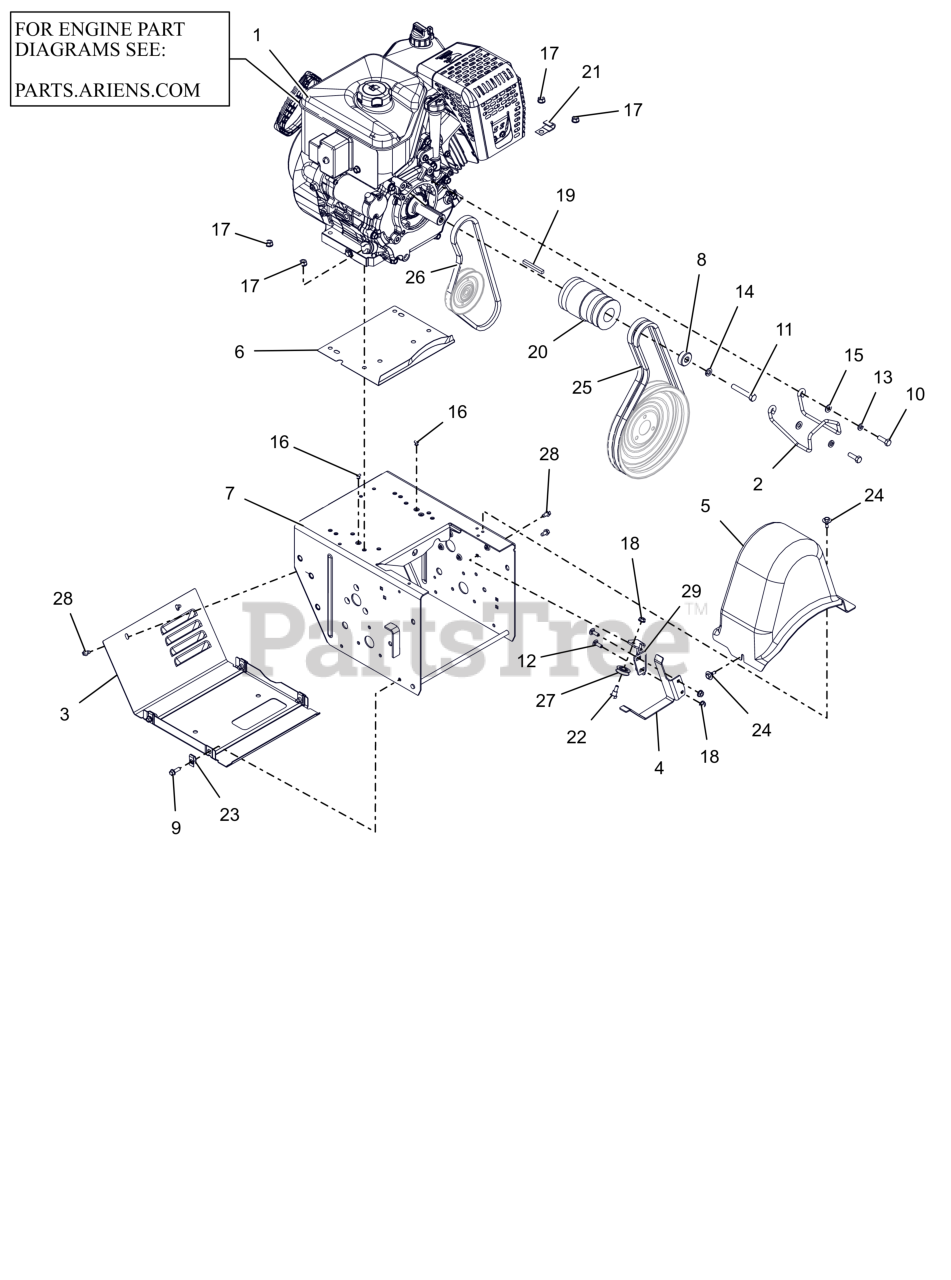

Engine Frame and Belt Drive Parts Diagram

  • Title

1

Ariens 08201022

ENGINE, AX420 GEN 3 120V/60W

$

$

Currently unavailable

2

Ariens 05273300

FINGER, BELT

$25.99

$

Usually ships in 4-12 days

0

3

Ariens 04516659

COVER, BOTTOM - VENTILATED

$43.99

$

Usually ships in 4-12 days

0

4

Ariens 04519951

FINGER, BELT - FLAT

$

$

Not available

5

Ariens 04989100

COVER, BELT-LARGE

$20.99

$

In Stock, only 4 left!

0

6

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

7

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$194.99

$

Usually ships in 4-12 days

0

8

Ariens 05501403

BSHG, SPCR .406 X 1.250 X .500

$18.99

$

Usually ships in 4-12 days

0

9

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$

$

Not available

11

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 13

0

13

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 18

0

14

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 7

0

17

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 11

0

20

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

$193.99

$

Usually ships in 4-12 days

0

21

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

22

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

23

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$53.99

$

In Stock, Qty 20+

0

26

Ariens 07200630

V-BELT, 4L-WRAPPED

$26.99

$

Usually ships in 4-12 days

0

27

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

28

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 04434351

BRACKET, CLUTCH CABLE

$

$

Not available
