926077 (PRO 28) - Ariens Professional 28" Snow Blower, Ariens AX 420cc (SN: 020000 & Above) Gear Case - 28" Parts Diagram

Professional 28" Snow Blower, Ariens AX 420cc

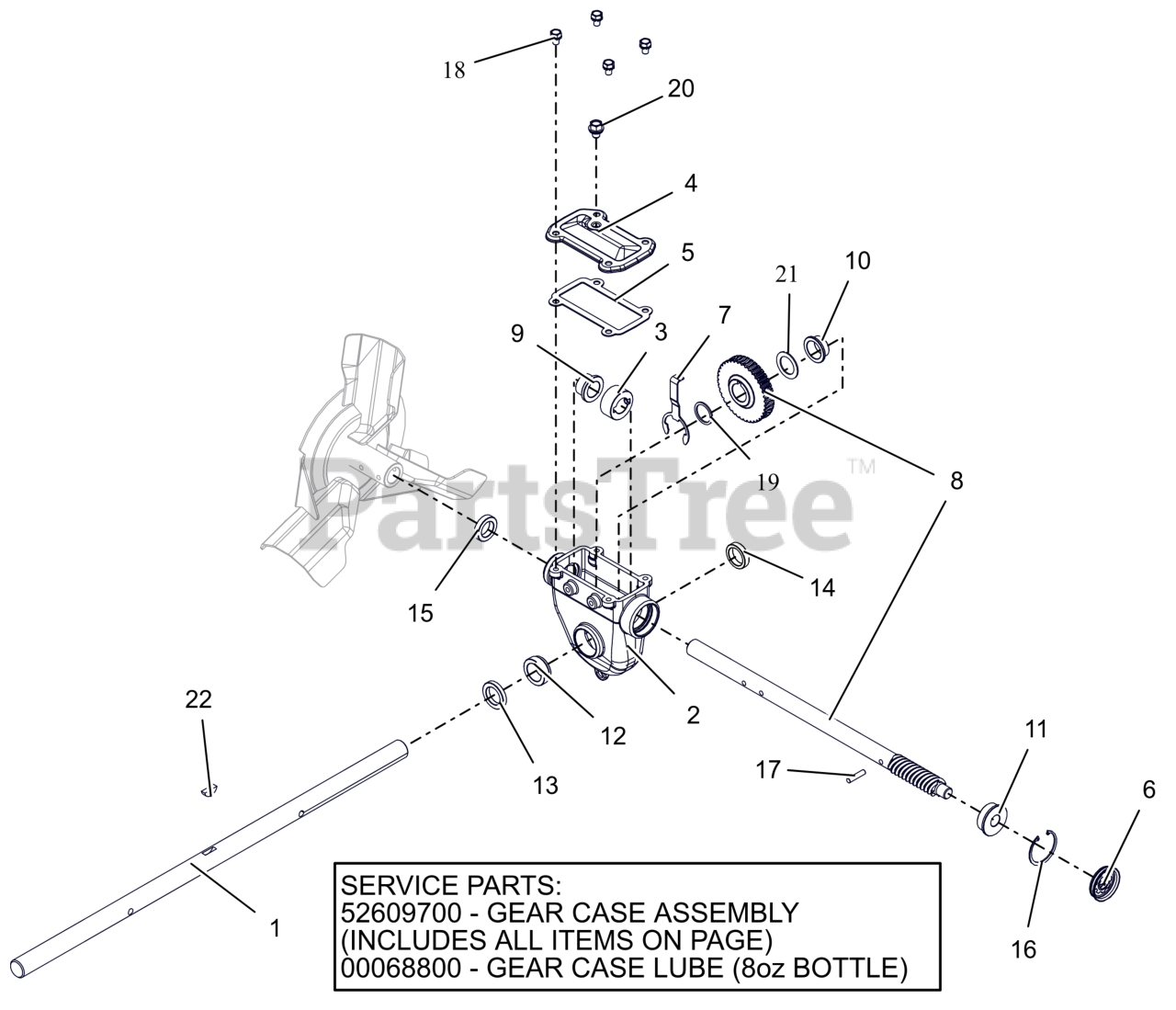

Gear Case - 28" Parts Diagram

  • Title
1

Ariens 03392400

SHAFT, RAKE-28"

$109.99

$

Usually ships in 4-12 days

0

2

Ariens 04276900

GEARCASE, LARGE MACHINED

$116.99

$

Usually ships in 4-12 days

0

2

Ariens 52609700

GEAR CASE, 28" IRON PRO TOP-LD

Note: SERVICE PART (COMPLETE ASSEMBLY)

$374.99

$

In Stock, only 1 left!

0

2

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

3

Ariens 04277100

THRUST COLLAR, .875"ID SLIPFIT

$9.49

$

In Stock, only 1 left!

0

4

Ariens 04280351

COVER, TOP - LARGE IRON

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 04282500

GASKET, TOP - LARGE GEARCASE

$3.99

$

In Stock, Qty 5

0

6

Ariens 04302900

COVER, GEAR CASE 1.75"

$15.99

$

In Stock, Qty 6

0

7

Ariens 04323700

BUSHING RETAINER, LARGE

$

$

Not available

8

Ariens 52609600

ASSY, WORM SHAFT & GEAR

$105.99

$

In Stock, only 1 left!

0

9

Ariens 05501024

BSHG-FLG .879X1.128X.75X1.45

$10.99

$

In Stock, only 2 left!

0

10

Ariens 05501025

BSHG-FLG 1.006X1.128X.555X1.45

$5.99

$

In Stock, only 1 left!

0

11

Ariens 05501027

BSHG-FLG .628X1.503X.58X1.725

$

$

Not available

12

Ariens 05501033

BSHG-FLG LARGE, RIGHT

$9.99

$

In Stock, Qty 10

0

13

Ariens 05600510

SEAL-OIL .999X1.500X.250 TBC29

$7.99

$

In Stock, Qty 20+

0

14

Ariens 05600511

SEAL-OIL .999X1.375X.312 TBC29

$6.99

$

In Stock, Qty 17

0

15

Ariens 05600512

SEAL-OIL .873X1.375X.312 TBC29

$6.49

$

In Stock, Qty 16

0

16

Ariens 05702100

RG-RTNG-INT 1.750X.062

$5.99

$

In Stock, only 1 left!

0

17

Ariens 05800208

PIN-STR .250X1.12 6150

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05902008

BLT, SEMS .31-18X.50 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06401134

WSHR, FLT 1.010X1.250X.068 ZCC

$3.99

$

In Stock, Qty 11

0

20

Ariens 07001830

SCR, .380-15X.500 W/SEAL WASHER

$2.99

$

Usually ships in 4-12 days

0

21

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06608800

KEY-WDRF .25X.875 HRD #A

$3.99

$

Usually ships in 4-12 days

0
