926077 (PRO 28) - Ariens Professional 28" Snow Blower, Ariens AX 420cc (SN: 020000 & Above) Dash Parts Diagram

Professional 28" Snow Blower, Ariens AX 420cc

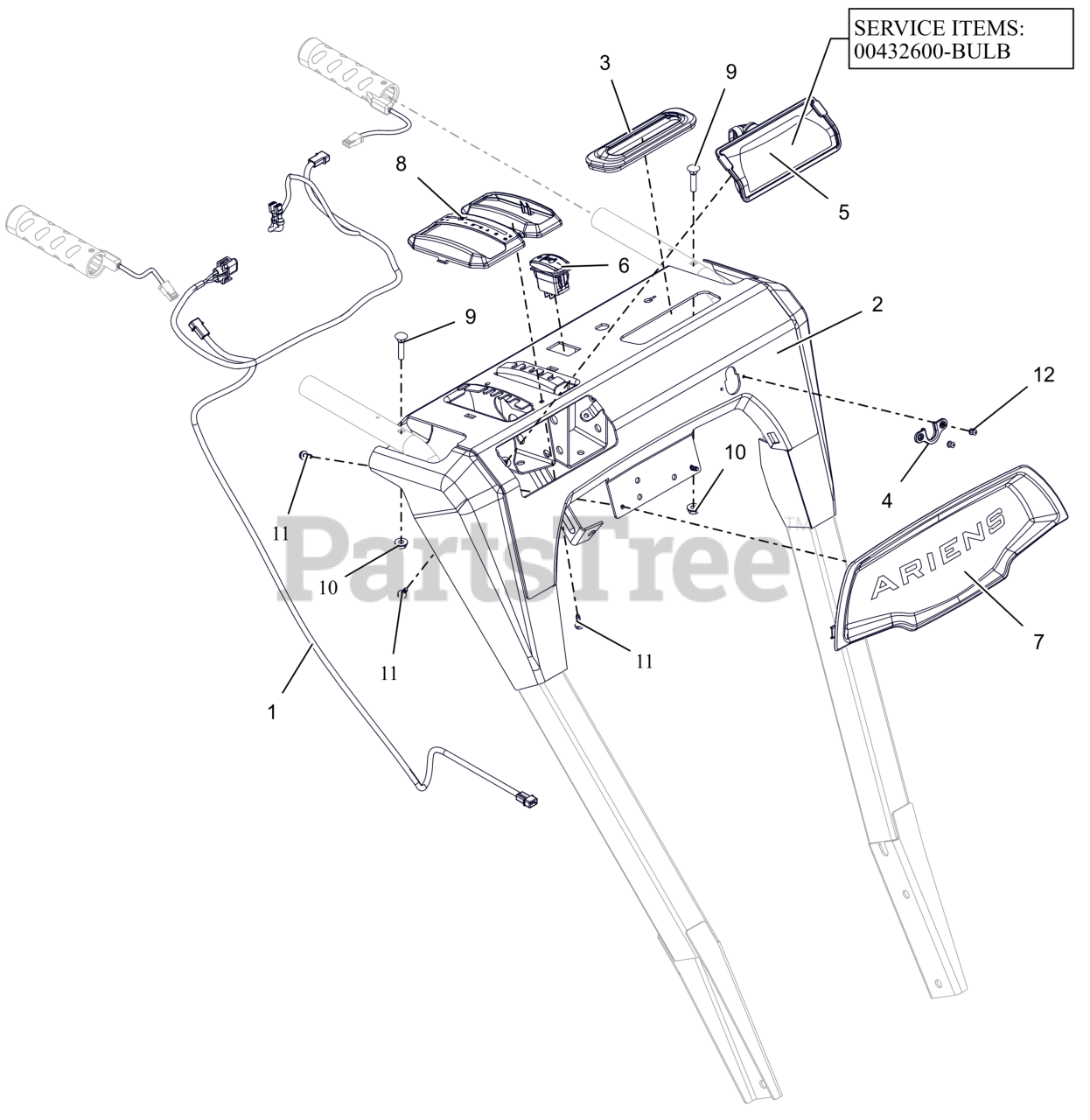

Dash Parts Diagram

  • Title

1

Ariens 04329600

HARNESS, LIGHT & WARMER

$45.99

$

Usually ships in 4-12 days

0

2

Ariens 52615700

PANEL, DASH-FRICTION W/DECAL

$164.99

$

Usually ships in 4-12 days

0

3

Ariens 04757600

GROMMET, BOOT, QUICK TURN

$11.99

$

In Stock, only 2 left!

0

4

Ariens 04762800

GROMMET, CABLE, QUICK TURN 2

$

$

Not available

5

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

5

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$14.99

$

In Stock, Qty 16

0

6

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$19.99

$

In Stock, Qty 5

0

7

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

8

Ariens 05126500

BEZEL, SHIFT - FRICTION SNOW

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available
