926075 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Dash Parts Diagram

Hydro 36" Power Brush, Kohler

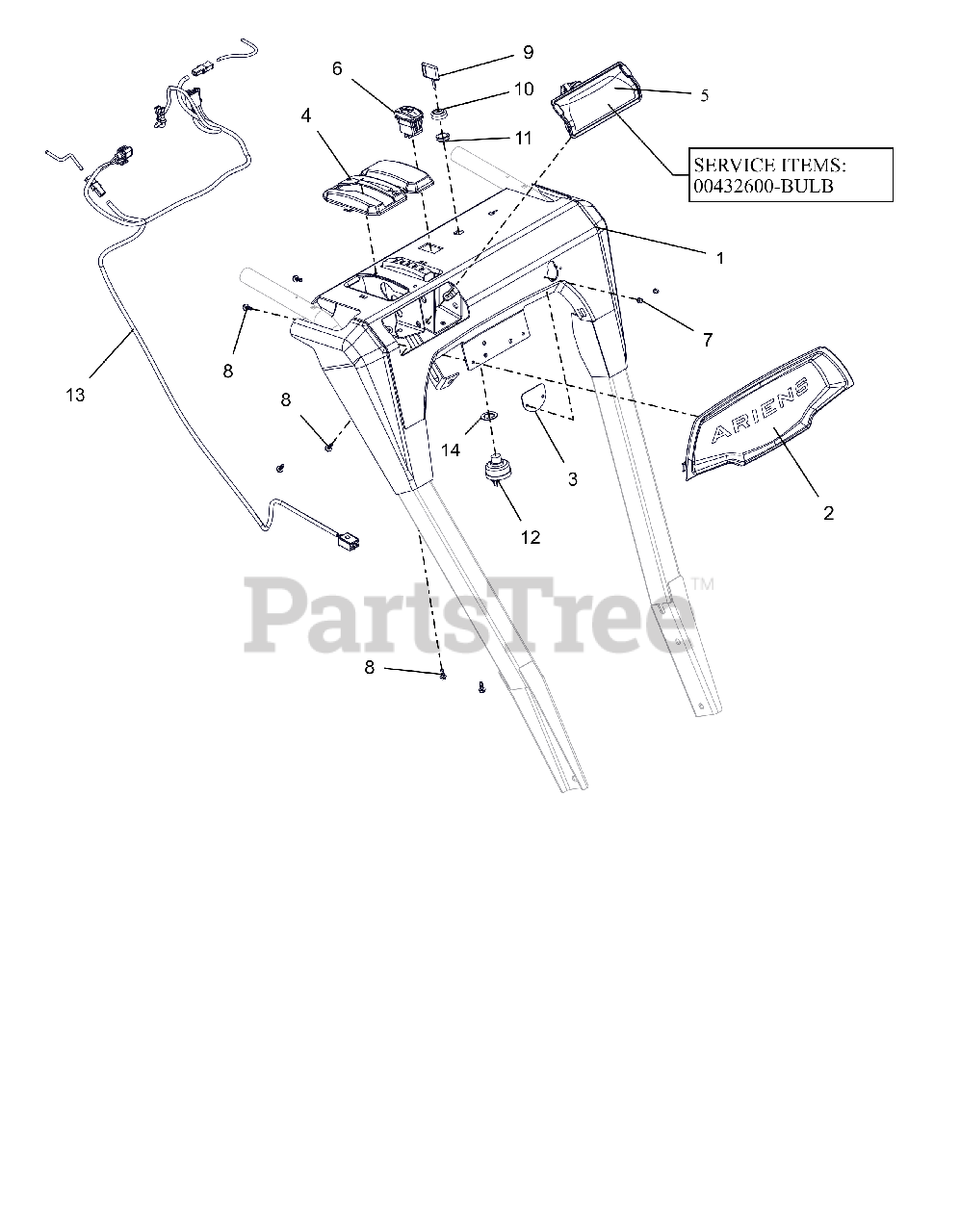

Dash Parts Diagram

  • Title

1

Ariens 52615000

PANEL, DASH - W/CTR DECAL(12V)

$156.99

$

Usually ships in 4-12 days

0

2

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 04792351

COVER, DASH BRKT, BRUSH

$

$

Not available

4

Ariens 04824700

BEZEL, SHIFT - HYDRO BRUSH

$

$

Not available

5

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$42.99

$

In Stock, Qty 9

0

5

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: SERVICE PART

$14.99

$

In Stock, Qty 20+

0

6

Ariens 04836700

SWITCH,ROCKER SPST-ON/OFF
(Superseded to 09395000)

$19.99

$

In Stock, Qty 6

0

7

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

8

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

10

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

In Stock, only 1 left!

0

12

Ariens 02739600

IGNITION SWITCH ASSEMBLY
(Superseded to 52709300)

$56.99

$

In Stock, Qty 6

0

13

Ariens 04974000

HARNESS,ELEC - HANDLEBAR 12V

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 06306900

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06300124)

$3.99

$

In Stock, only 1 left!

0
