926075 - Ariens Hydro 36" Power Brush, Kohler (SN: 000101 & Above) Controls Parts Diagram
Hydro 36" Power Brush, Kohler

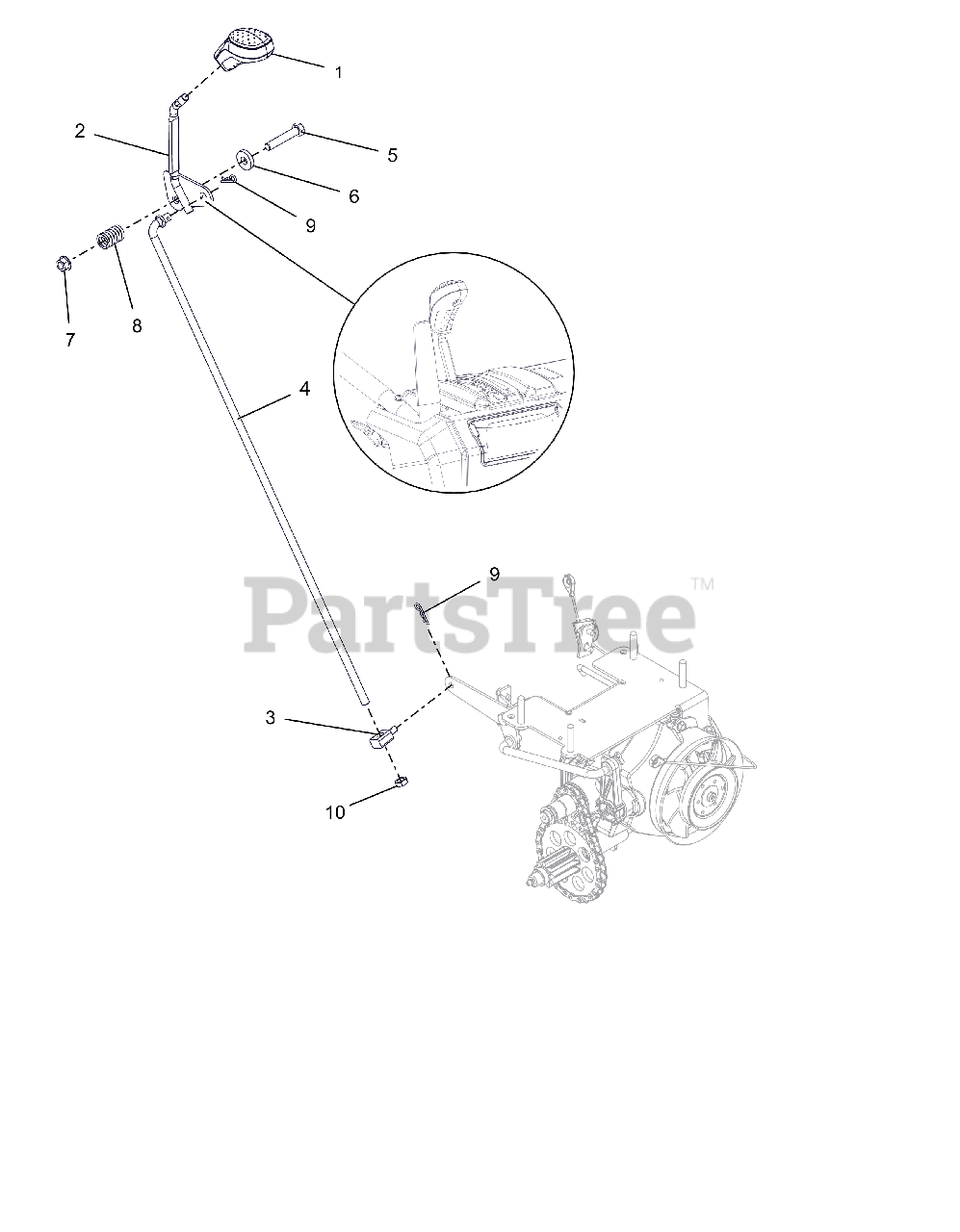

Controls Parts Diagram
Ariens 04816300
KNOB, CONTROL, DASH
$7.99
$
In Stock, Qty 11
Ariens 04846900
WELDMENT,LG DASH SPEED CONTROL
$
$
Not available
Ariens 00386700
PIVOT,SHIFT ROD .375-16(TRUNN)
$7.99
$
In Stock, Qty 18
$27.99
$
Usually ships in 4-12 days
Ariens 05901718
BLT,HEX .38-16X2.00 G5 ZCC
$2.99
$
In Stock, only 1 left!
Ariens 06401108
WSHR, FLT .406X1.00X.188 ZCC
$2.49
$
In Stock, Qty 20+
Ariens 06500822
NUT-LK-TOP-FLG .38-16 ZC120
$1.49
$
In Stock, Qty 20+
Ariens 08335700
SG-COMP .125X.781X1.250
$9.49
$
In Stock, only 1 left!
Ariens 06700222
PIN, HAIR #213 .08X1.19 ZCC
$0.99
$
In Stock, Qty 20+
Ariens 06500910
NUT-JAM .375-16 G2 ZCC
$0.99
$
In Stock, Qty 20+
