926074 - Ariens 36" Power Brush, Kohler (SN: 000101 & Above) Engine and Frame Parts Diagram

36" Power Brush, Kohler

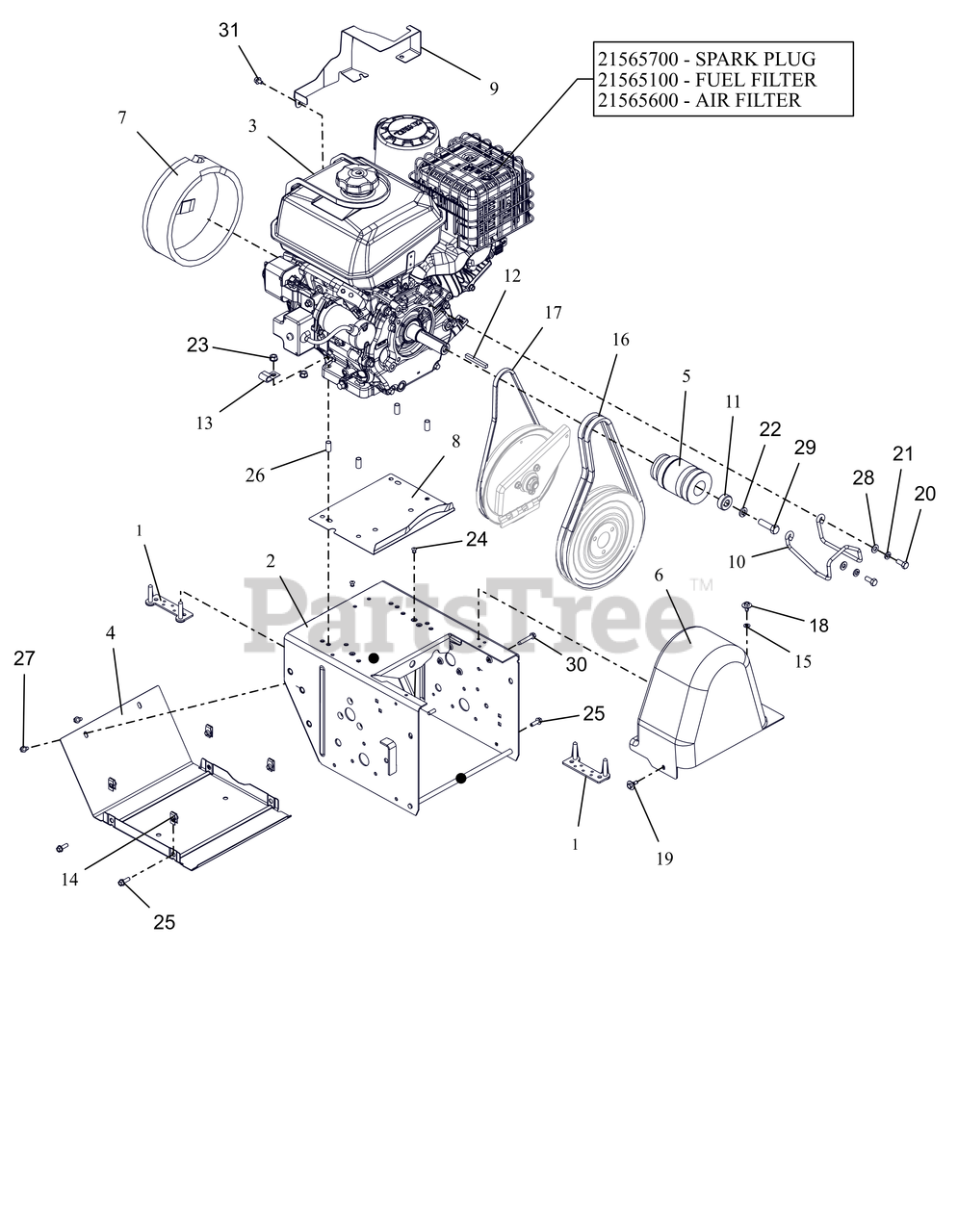

Engine and Frame Parts Diagram

  • Title

1

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

$

$

Not available

2

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$194.99

$

Usually ships in 4-12 days

0

3

Ariens 08201314

ENGINE, KOHLER - CH395 120V

$

$

Currently unavailable

3

Ariens 21565700

PLUG,SPARK - KOHLER CH395/440

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

3

Ariens 21565100

FILTER, FUEL (IN TANK)

Note: SERVICE PART

$11.99

$

Usually ships in 4-12 days

0

3

Ariens 21565600

FILTER,AIR - KOHLER CH395/440

Note: SERVICE PART

$19.99

$

Usually ships in 4-12 days

0

4

Ariens 00375159

COVER, BOTTOM

$82.99

$

Usually ships in 4-12 days

0

5

Ariens 03846500

SHEAVE, SUBARU EX27

$168.99

$

Usually ships in 4-12 days

0

6

Ariens 03965700

COVER, BELT-TALL PRO

$156.99

$

Usually ships in 4-12 days

0

7

Ariens 05173700

COVER, RECOIL - KOHLER CH395

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

9

Ariens 05173851

BRKT, ENGINE - KOHLER CH395

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

In Stock, only 1 left!

0

11

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

12

Ariens 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

13

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

16

Ariens 07200601

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, only 2 left!

0

17

Ariens 07231000

V-BELT, 3L-RAW EDGE

$27.99

$

In Stock, Qty 12

0

18

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 4 left!

0

19

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, Qty 11

0

23

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

25

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05500937

BSHG-SLV .325X.400X.795

$

$

Not available

27

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 05902004

BLT, HEX .44-20X1.50 G5ZCCEP80

$5.99

$

In Stock, Qty 5

0

30

Ariens 07400140

SCR,TAP .25-20X1.50 HWH TR ZCC

$3.49

$

Usually ships in 4-12 days

0

31

Ariens 05901915

BLT, HEX M6-1.0X10 G10.9 ZCC

$3.99

$

Usually ships in 4-12 days

0
