926071 (ST 32 DLE) - Ariens Pro 32" Snow Blower, 420cc Briggs & Stratton (SN: 010000 & Above) Wheels And Axle - 32" Parts Diagram

Pro 32" Snow Blower, 420cc Briggs & Stratton

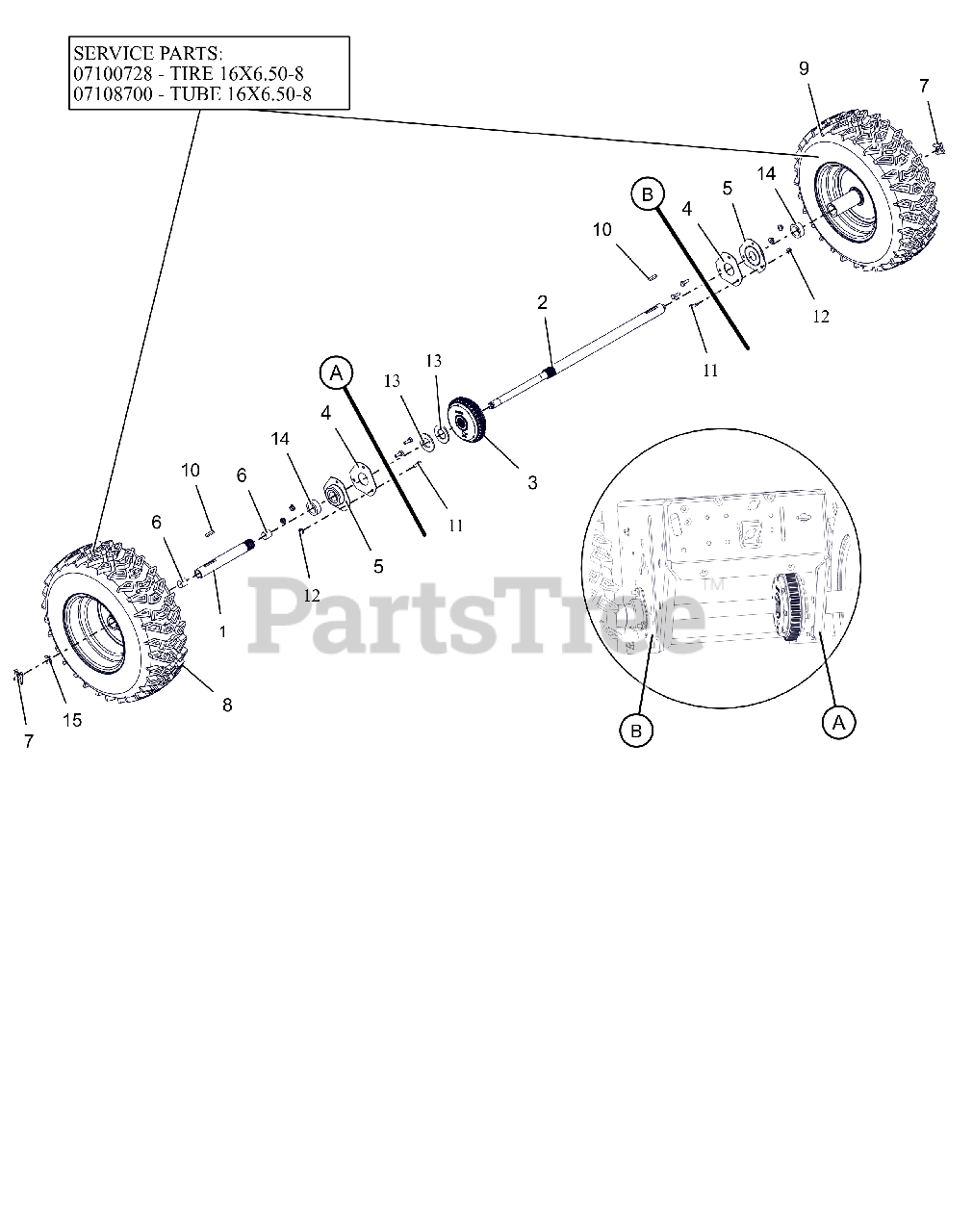

Wheels And Axle - 32" Parts Diagram

  • Title

1

Ariens 52604100

AXLE, SHORT-AUTO W/BUSHINGS

$53.99

$

In Stock, Qty 13

0

2

Ariens 00660900

AXLE, LONG-PRO AUTO DIFF

$96.99

$

In Stock, only 4 left!

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$155.99

$

In Stock, Qty 9

0

4

Ariens 04796351

PLATE, BEARING SPACER

$

$

Not available

5

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, Qty 20+

0

6

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

8

Ariens 07101139

TIRE/WHEEL,RH 16X6.5-8 DIFF T2

$148.99

$

Usually ships in 4-12 days

0

9

Ariens 07101140

TIRE/WHEEL,LH 16X6.5-8 DIFF T2

$148.99

$

In Stock, only 2 left!

0

8-9

Ariens 07100728

TIRE, 16X6.50-8 K478

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

8-9

Ariens 07108700

TUBE

Note: SERVICE PART

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06401203

WSHR, FLT 1.062X2.000X.134 ZCC

$3.99

$

In Stock, only 3 left!

0

14

Ariens 05501014

SPACER, PRO AXLE BEARING

$7.49

$

In Stock, Qty 12

0

15

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0
