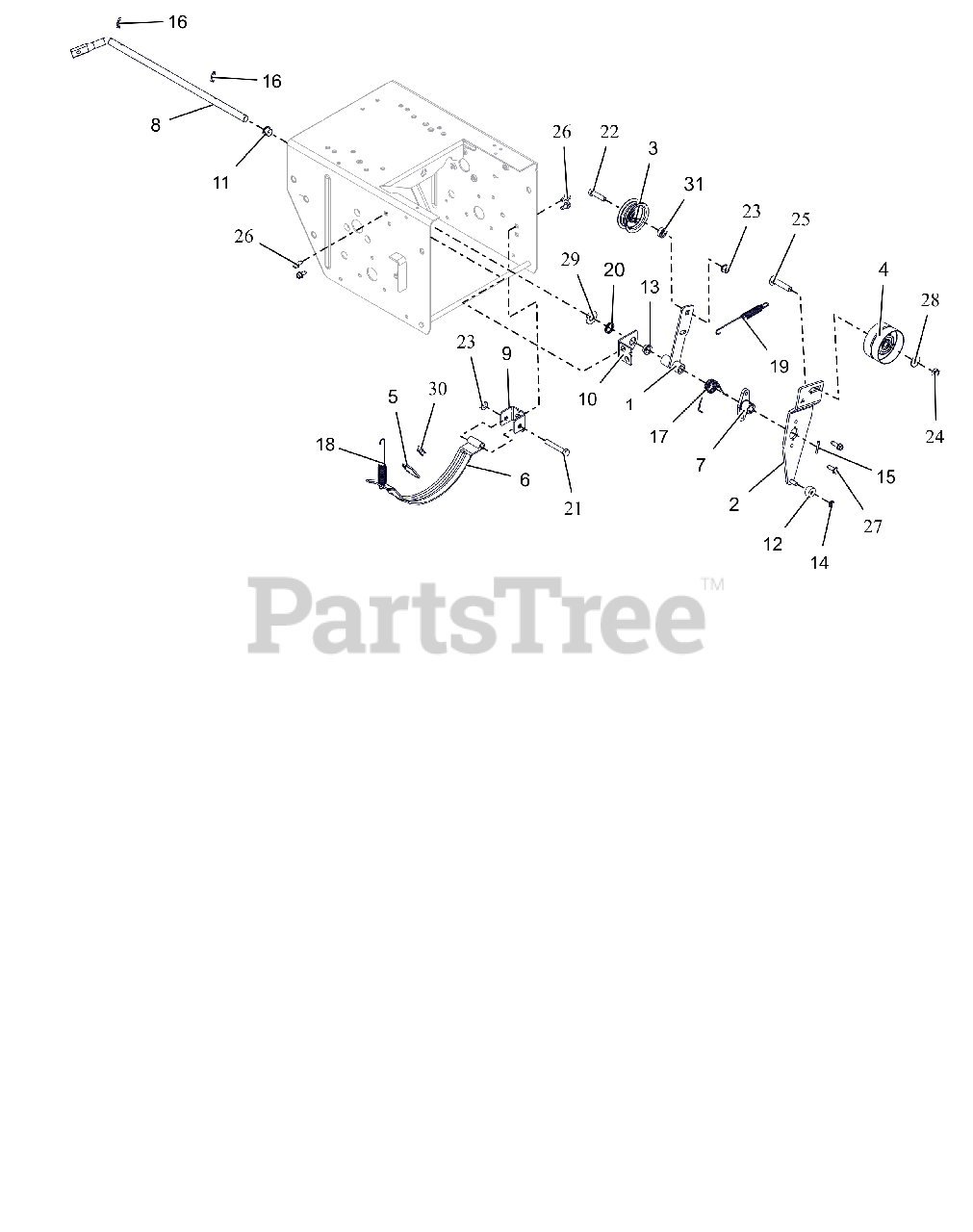

926071 (ST 32 DLE) - Ariens Pro 32" Snow Blower, 420cc Briggs & Stratton (SN: 010000 & Above) Brake And Idlers Parts Diagram

Pro 32" Snow Blower, 420cc Briggs & Stratton

Brake And Idlers Parts Diagram

  • Title

1

Ariens 00371651

ARM, IDLER-TRACTION
(Superseded to 00371600)

$11.99

$

In Stock, Qty 17

0

2

Ariens 02954400

ARM, IDLER-ATTACHMENT

$77.99

$

In Stock, only 1 left!

0

3

Ariens 07338900

IDLER, FLAT - 2.00"

$22.99

$

In Stock, only 3 left!

0

4

Ariens 07333500

IDLER, FLAT-2.75 OD X .375 ID

$22.99

$

In Stock, Qty 9

0

5

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 11

0

6

Ariens 00374900

ARM, BRAKE-ATTACHMENT

$25.99

$

Usually ships in 4-12 days

0

7

Ariens 00384200

HUB, BRAKE ARM

$5.99

$

In Stock, Qty 11

0

8

Ariens 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, Qty 18

0

9

Ariens 00430751

PIVOT, BRAKE
(Superseded to 00430700)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 04511651

BRACKET, SUPPORT
(Superseded to 04511600)

$3.49

$

In Stock, Qty 11

0

11

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

12

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$

$

Not available

13

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, Qty 20+

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

17

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

18

Ariens 08300017

SG-TENS .056X.60X4.40

$5.99

$

In Stock, Qty 20+

0

19

Ariens 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

20

Ariens 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 8

0

21

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.49

$

In Stock, Qty 12

0

23

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06500914

NUT-LK-CTR-JAM .375-16 GB ZCC

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06200329

BLT, RHSSN .38-16X1.75 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

26

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

28

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 16

0

31

Ariens 05501115

SPCR, BRG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0
