926071 (ST 32 DLE) - Ariens Pro 32" Snow Blower, 420cc Briggs & Stratton (SN: 005000 - 009999) Auger And Impeller - 32" Parts Diagram

Pro 32" Snow Blower, 420cc Briggs & Stratton

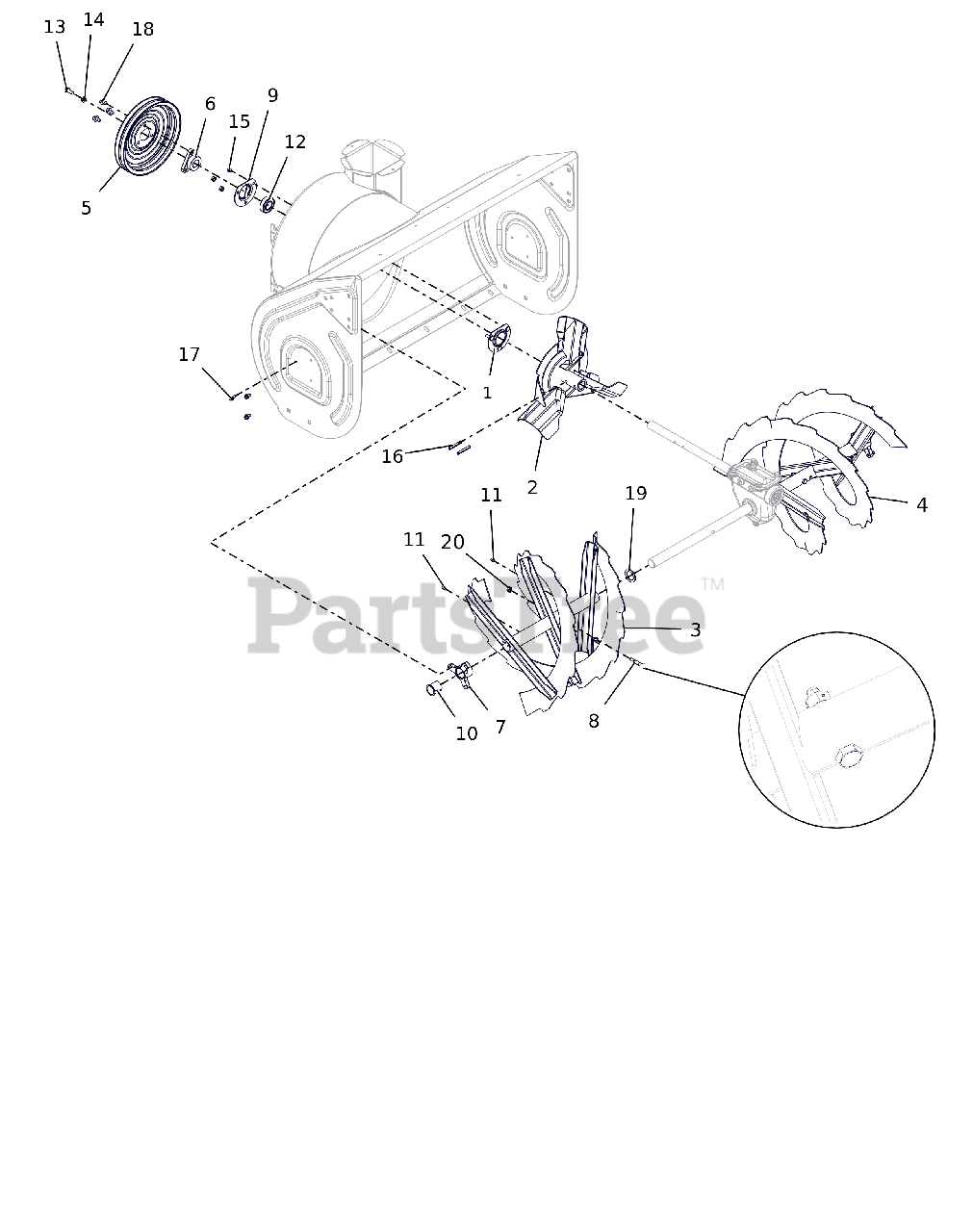

Auger And Impeller - 32" Parts Diagram

  • Title

1

Ariens 00428700

BEARING FLANGE

$18.99

$

In Stock, Qty 5

0

2

Ariens 00485551

IMPELLER, 3 BLADE-14"

$102.99

$

Usually ships in 4-12 days

0

3

Ariens 52606700

RAKE, RH-32"(1 ID X 15.75 OD)

$190.99

$

Usually ships in 4-12 days

0

4

Ariens 52606600

RAKE, LH-32"(1 ID X 15.75 OD)

$167.99

$

Usually ships in 4-12 days

0

5

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$39.99

$

In Stock, Qty 5

0

6

Ariens 00268703

PULLEY HUB, D-BORE .87 PRO

$9.49

$

In Stock, Qty 5

0

7

Ariens 00275100

BUSHING, RAKE SHAFT 1"

$11.99

$

In Stock, Qty 20+

0

8

Ariens 00659100

BOLT, SHEAR - DELUXE
(Superseded to 52100100)

$4.99

$

In Stock, Qty 20+

0

9

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

10

Ariens 05500030

BSHG-FLG SPLIT NYLINER 1.0" HP

$6.99

$

In Stock, Qty 20+

0

11

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 16

0

12

Ariens 05400713

BRG-BALL .876X1.75X.50 RSTFP

$37.99

$

In Stock, Qty 9

0

13

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
