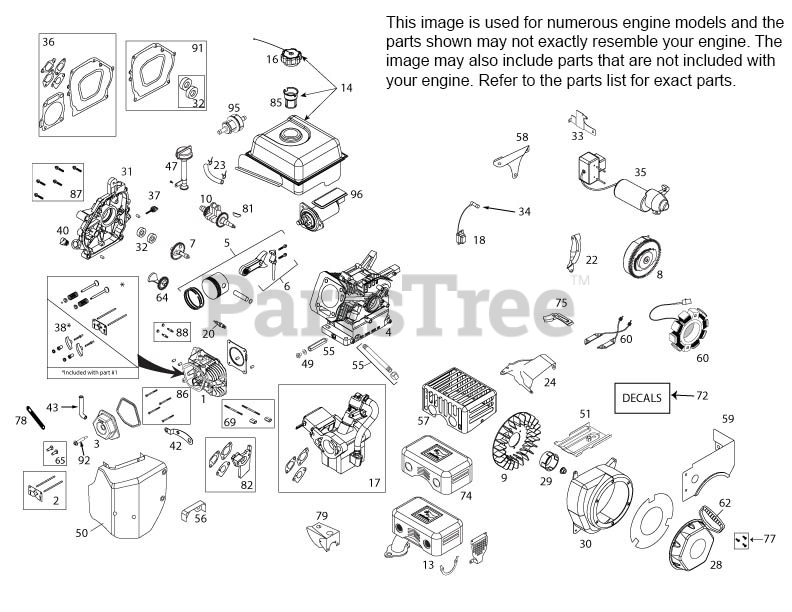

926070 (ST 36 DLE) - Ariens Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI (SN: 020000 & Above) Engine - 08201218 Parts Diagram

Hydro Pro 36" Snow Blower, Ariens AX 420cc EFI

Engine - 08201218 Parts Diagram

  • Title

1

Ariens 20001482

CYLINDER HEAD 420CC

$275.99

$

Usually ships in 4-12 days

0

2

Ariens 20001280

PUSH ROD & PLATE KIT (W/GSKT)
(Superseded to 20001365)

$

$

Not available

3

Ariens 20001298

VALVE COVER (W/GASKET)
(Superseded to 20001553)

$34.99

$

Usually ships in 4-12 days

0

5

Ariens 20001483

PISTON AND ROD ASSEMBLY

$92.99

$

Usually ships in 4-12 days

0

7

Ariens 20001287

CAMSHAFT - MCR

$91.99

$

Usually ships in 4-12 days

0

8

Ariens 20001142

FLYWHEEL - ELECTRIC START

$213.99

$

Usually ships in 4-12 days

0

9

Ariens 20001296

COOLING FAN - FLYWHEEL

$10.99

$

Usually ships in 4-12 days

0

10

Ariens 20001484

CRANKSHAFT

$

$

Not available

13

Ariens 20001380

MUFFLER ASSEMBLY - GEN III

$149.99

$

Usually ships in 4-12 days

0

14

Ariens 20001454

FUEL TANK, MATT BLK W/DECALS

$131.99

$

Usually ships in 4-12 days

0

16

Ariens 20001374

CAP, FUEL TANK RED
(Superseded to 52107500)

$20.99

$

In Stock, Qty 8

0

17

Ariens 20001461

THROTTLE BODY ASSM, EFI- 369CC

$258.99

$

Usually ships in 4-12 days

0

18

Ariens 20001159

IGNITION COIL (CDI) (STANDARD)

$35.99

$

In Stock, only 1 left!

0

20

Ariens 20001271

SPARK PLUG
(Superseded to 20001246)

$6.99

$

In Stock, Qty 20+

0

23

Ariens 20001449

FUEL HOSE KIT, QTY 3 W/CLAMPS

$11.99

$

In Stock, Qty 9

0

24

Ariens 20001411

SPEED CONTROL SHIELD (GEN III)

$26.99

$

Usually ships in 4-12 days

0

28

Ariens 20001462

RECOIL STARTER, ROUND STYLE

$64.99

$

In Stock, only 2 left!

0

29

Ariens 20001463

STARTER CUP, ROUND STYLE

$

$

Not available

30

Ariens 20001464

BLOWER HOUSING, MATT BLK-EFI

$

$

Not available

31

Ariens 20001465

CYL COVER, COMP ASSEMBLY-EFI

$217.99

$

Usually ships in 4-12 days

0

32

Ariens 20001295

OIL SEAL KIT

$15.99

$

Usually ships in 4-12 days

0

33

Ariens 20001140

ELECT START SWITCHBOX BRACKET

$11.99

$

Usually ships in 4-12 days

0

34

Ariens 20001158

SPARK PLUG BOOT (W/MTL SHIELD)

$9.49

$

In Stock, only 2 left!

0

35

Ariens 20001440

120V ELECTRIC STARTER W/BOLTS

$200.99

$

Usually ships in 4-12 days

0

36

Ariens 20001366

ENGINE GASKET KIT

$72.99

$

Usually ships in 4-12 days

0

37

Ariens 20001293

SMALL BLACK OIL DIPSTICK

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 20001284

ROCKER ARM KIT (W/GASKET)

$19.99

$

Usually ships in 4-12 days

0

40

Ariens 20001294

NON-REMOVABLE PLASTIC PLUG

$

$

Not available

43

Ariens 20001299

BREATHER TUBE
(Superseded to 20001405)

$

$

Not available

47

Ariens 20001388

HIGH OIL-FILL TUBE & CAP

$13.99

$

In Stock, Qty 8

0

49

Ariens 20001303

OIL DRAIN PLUG (W/WASHER)

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 20001467

HEATER BOX (MATTE BLACK)-EFI

$36.99

$

Usually ships in 4-12 days

0

51

Ariens 20001281

SHIELD - CYLINDER

$7.49

$

Usually ships in 4-12 days

0

55

Ariens 20001446

OIL DRAIN TUBE W/CAP NUT

$22.99

$

In Stock, only 3 left!

0

56

Ariens 20001391

CARBURETOR VAPOR SHIELD

$

$

Not available

57

Ariens 20001392

MUFFLER HEAT SHIELD - GEN III

$55.99

$

Usually ships in 4-12 days

0

58

Ariens 20001146

SHIELD - GOVERNOR LINKAGE

$7.49

$

Usually ships in 4-12 days

0

59

Ariens 20001466

FUEL TANK SKIRT, MATT BLK-EFI

$21.99

$

Usually ships in 4-12 days

0

60

Ariens 20001456

CHARGING COIL (60-WATT AC)-EFI

$91.99

$

Usually ships in 4-12 days

0

62

Ariens 20001058

STARTER GRIP
(Superseded to 20001064)

$12.99

$

In Stock, only 2 left!

0

64

Ariens 20001288

COUNTER WEIGHT KIT

$75.99

$

Usually ships in 4-12 days

0

65

Ariens 20001267

TAPPET KIT (SET OF 2)

$

$

Not available

69

Ariens 20001352

CARB MTG STUD KIT 414CC

$8.99

$

Usually ships in 4-12 days

0

72

Ariens 20001457

LABEL KIT-EFI
(Superseded to 20001655)

$38.99

$

Usually ships in 4-12 days

0

75

Ariens 20001152

SHIELD - FLYWHEEL

$6.99

$

Usually ships in 4-12 days

0

77

Ariens 20001186

RECOIL BOLT KIT

$4.99

$

In Stock, Qty 6

0

78

Ariens 20001155

BREATHER TUBE RETAINING STRAP

$6.99

$

Usually ships in 4-12 days

0

79

Ariens 20001153

SHIELD - CARBURETOR COVER

$

$

Not available

81

Ariens 20001333

WOODRUFF FLYWHEEL KEY 5-PACK

$5.99

$

In Stock, only 2 left!

0

82

Ariens 20001335

CARBURETOR SPACER

$

$

Not available

86

Ariens 20001359

HEAD BOLT KIT 291-414CC

$14.99

$

Usually ships in 4-12 days

0

87

Ariens 20001355

CRANKCASE COVER BOLT KIT 414CC

$11.99

$

Usually ships in 4-12 days

0

88

Ariens 20001049

MUFFLER SHOULDER BOLT

$9.99

$

Usually ships in 4-12 days

0

91

Ariens 20001420

CRANKCASE GASKET KIT(369-414)

$36.99

$

Usually ships in 4-12 days

0

92

Ariens 20001048

VALVE COVER BOLT (SINGLE BOLT)

$7.99

$

Usually ships in 4-12 days

0

95

Ariens 20001458

FUEL FILTER, IN-LINE

$11.99

$

In Stock, Qty 10

0

96

Ariens 20001459

FUEL PUMP-EFI W/P-FLTER&SCRWS
(Superseded to 20001752)

$68.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

$

$

Not available

9999

Ariens 20001103

STARTER SWITCH SCREWS

$9.49

$

In Stock, only 1 left!

0

9999

Ariens 20003129

ECU SERVICE LCT/CSI - 420CC

$245.99

$

Usually ships in 4-12 days

0

9999

Ariens 05079500

CHARGER, BATTERY - EFI 7.2V

Note: NOT SHOWN

$37.99

$

Usually ships in 4-12 days

0
