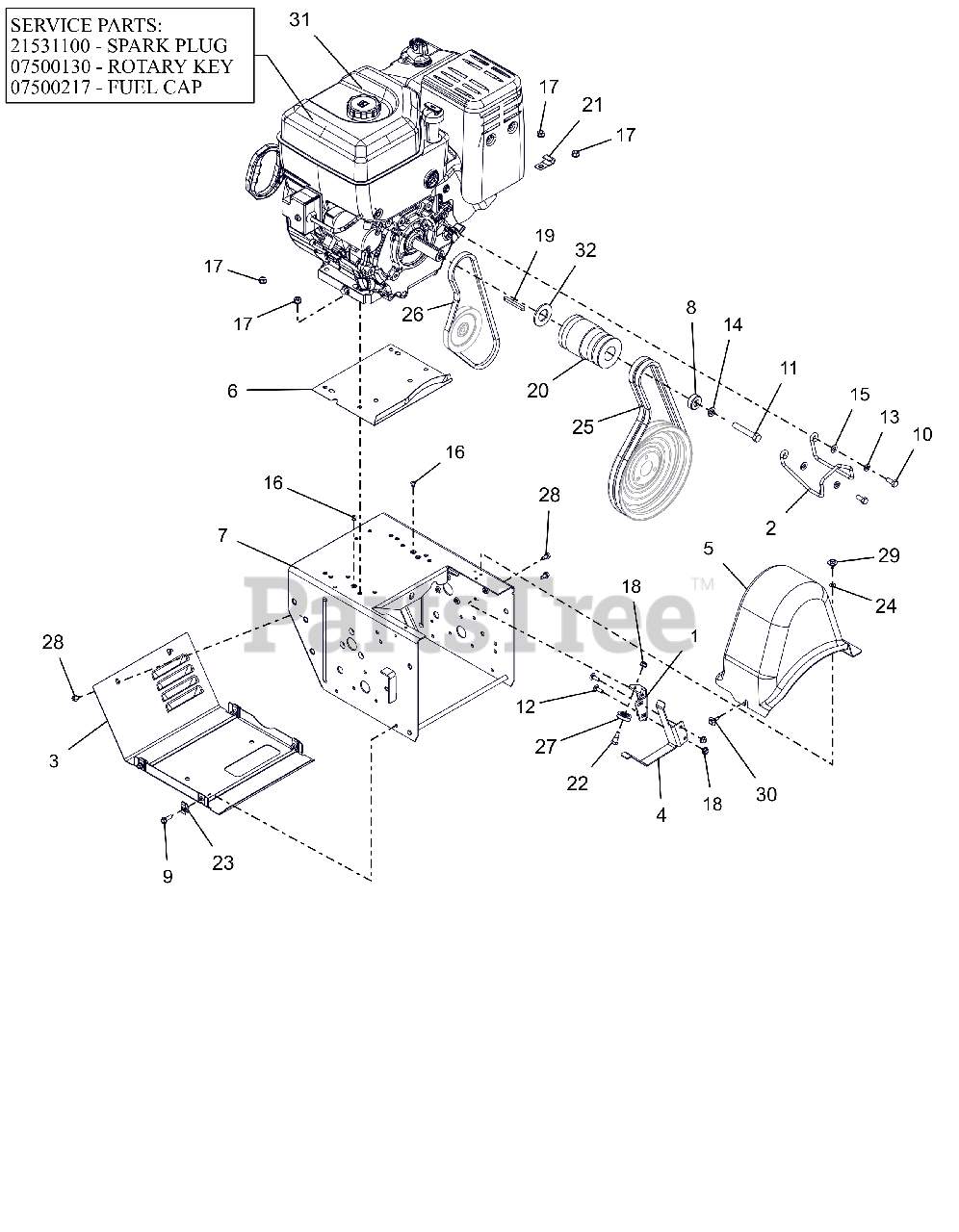

926069 (ST 32 DLET) - Ariens Hydro Pro 32" Track Snow Blower, Briggs & Stratton (SN: 001500 & Above) Engine, Frame And Belt Drive Parts Diagram

Hydro Pro 32" Track Snow Blower, Briggs & Stratton

Engine, Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 04434351

BRACKET, CLUTCH CABLE

$

$

Not available

2

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

In Stock, only 1 left!

0

3

Ariens 04516659

COVER, BOTTOM - VENTILATED

$43.99

$

Usually ships in 4-12 days

0

4

Ariens 04519951

FINGER, BELT - FLAT

$

$

Not available

5

Ariens 04989100

COVER, BELT-LARGE

$20.99

$

In Stock, only 4 left!

0

6

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

7

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$194.99

$

Usually ships in 4-12 days

0

8

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

9

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05902017

BLT, HEX .44-20X2.50 G5 ZCC

$2.49

$

In Stock, only 1 left!

0

12

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 18

0

13

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, Qty 11

0

15

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 14

0

17

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06600226

KEY, SQ .248/.246 X 2.25

$

$

Currently unavailable

20

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

$193.99

$

Usually ships in 4-12 days

0

21

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 7

0

22

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

23

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

25

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$53.99

$

In Stock, Qty 20+

0

26

Ariens 07200630

V-BELT, 4L-WRAPPED

$26.99

$

In Stock, only 1 left!

0

27

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

28

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, only 4 left!

0

30

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 08200705

ENGINE, BRIGGS PF 2100, 120V

$

$

Not available

31

Ariens 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: SERVICE PART

$4.49

$

In Stock, Qty 13

0

31

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: SERVICE PART

$7.99

$

In Stock, Qty 20+

0

31

Ariens 07500217

CAP, FUEL - BRIGGS & STRATTON

Note: SERVICE PART

$64.99

$

Usually ships in 4-12 days

0

32

Ariens 06401203

WSHR, FLT 1.062X2.000X.134 ZCC

$3.99

$

In Stock, only 3 left!

0
