926069 (ST 32 DLET) - Ariens Hydro Pro 32" Track Snow Blower, Briggs & Stratton (SN: 000101 - 001499) Engine Frame and Belt Drive Parts Diagram

Hydro Pro 32" Track Snow Blower, Briggs & Stratton

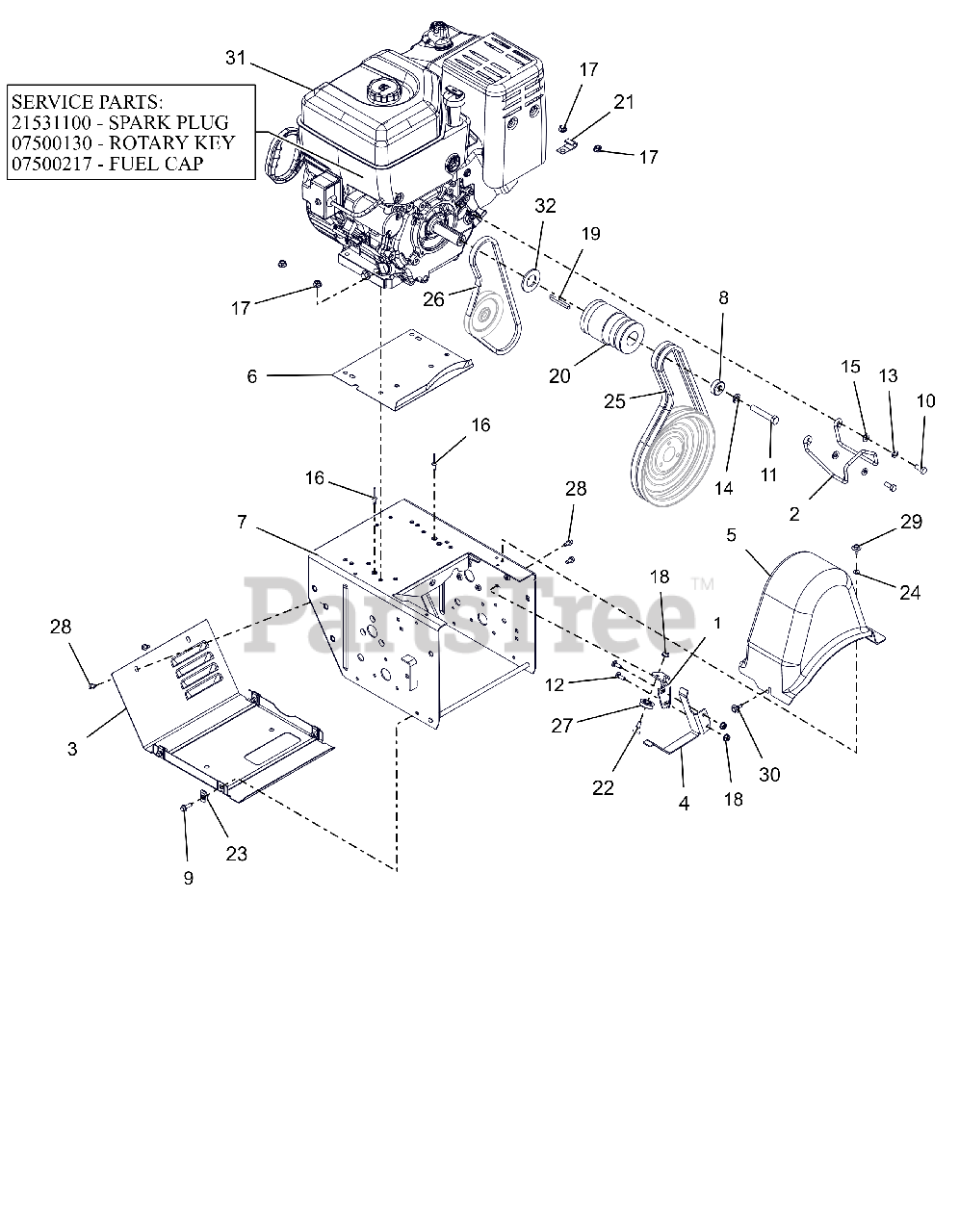

Engine Frame and Belt Drive Parts Diagram

  • Title

1

Ariens 04434351

BRACKET, CLUTCH CABLE

$19.99

$

Usually ships in 4-12 days

0

2

Ariens 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

Usually ships in 4-12 days

0

3

Ariens 04516659

COVER, BOTTOM - VENTILATED

$43.99

$

Usually ships in 4-12 days

0

4

Ariens 04519951

FINGER, BELT - FLAT

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 04989100

COVER, BELT-LARGE

$21.99

$

In Stock, only 2 left!

0

6

Ariens 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

7

Ariens 04999959

FRAME, MAIN - PRO (WELDMENT)

$194.99

$

Usually ships in 4-12 days

0

8

Ariens 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 11

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, only 3 left!

0

13

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 15

0

14

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

15

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, only 3 left!

0

17

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06600226

KEY, SQ .248/.246 X 2.25

$

$

Currently unavailable

20

Ariens 04510800

SHEAVE, COMBO HYDRO TRACK 4L

$193.99

$

Usually ships in 4-12 days

0

21

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, only 4 left!

0

22

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

23

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

25

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$54.99

$

In Stock, Qty 20+

0

26

Ariens 07200630

V-BELT, 4L-WRAPPED

$27.99

$

Usually ships in 4-12 days

0

27

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

28

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

30

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 08200705

ENGINE, BRIGGS PF 2100, 120V

$

$

Not available

31

Ariens 21531100

PLUG, SPARK 20HP B&S VANGUARD

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

31

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: SERVICE PART

$10.99

$

In Stock, Qty 20+

0

31

Ariens 07500217

CAP, FUEL - BRIGGS & STRATTON

Note: SERVICE PART

$64.99

$

Usually ships in 4-12 days

0

32

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0
