926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 001000 - 001999) Transmission Mount Parts Diagram

36" Power Brush, Subaru, Hydro

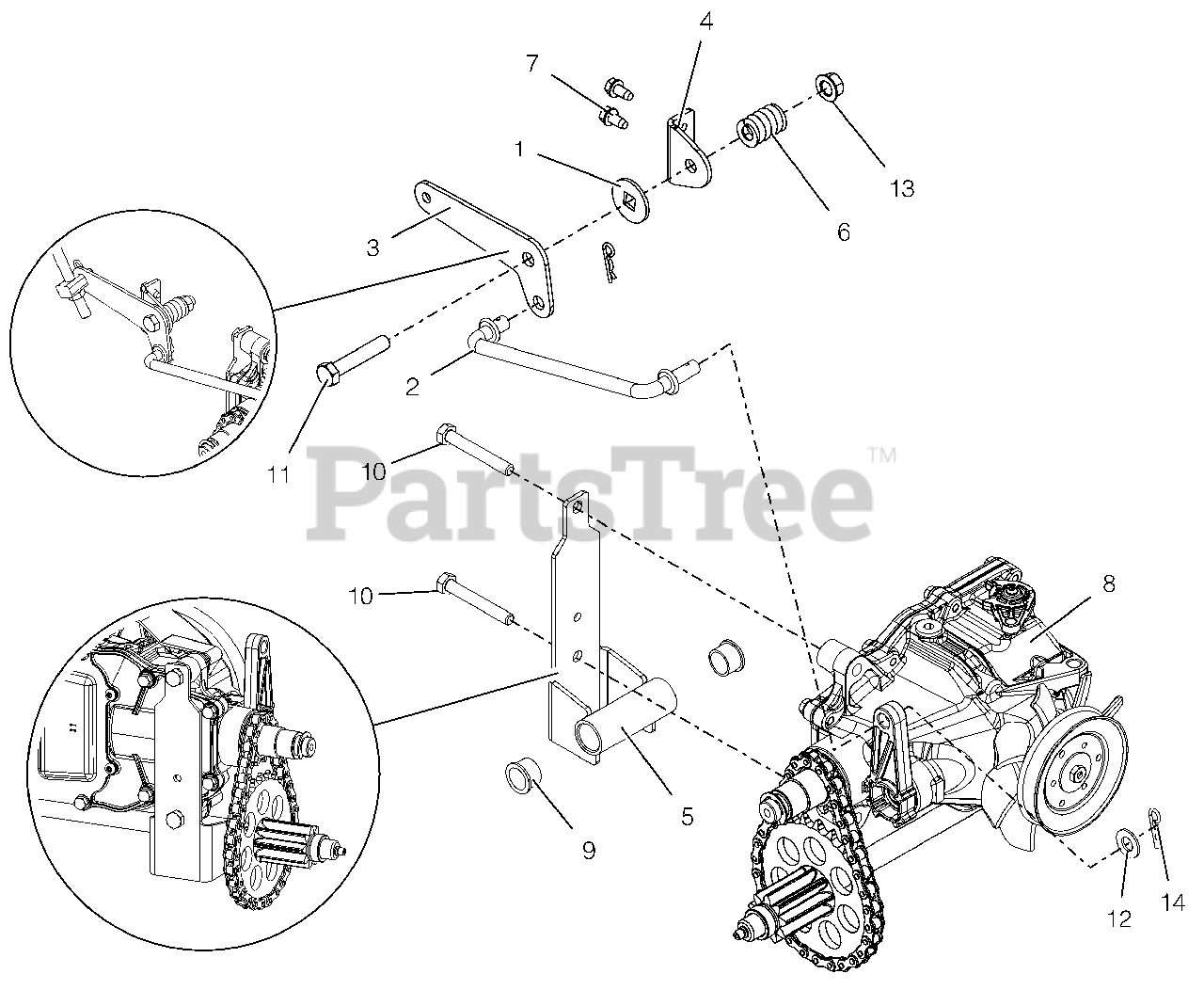

Transmission Mount Parts Diagram

  • Title

1

Gravely 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

2

Gravely 04376500

ROD, HYDRO TRANS SHIFT

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 04376651

PIVOT, HYDRO TRANS SHIFT

$7.99

$

Usually ships in 4-12 days

0

4

Gravely 04376751

BRACKET, HYDRO SHIFT PIVOT

$

$

Not available

5

Gravely 04662900

TRANS MOUNT, TENSIONING, WHEEL

$42.99

$

Usually ships in 4-12 days

0

6

Gravely 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 20+

0

7

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 04438900

TRANSMISSION, HYDROSTATIC

$814.99

$

Usually ships in 4-12 days

0

9

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

12

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0
