926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 000999) Wheels And Axles Parts Diagram

36" Power Brush, Subaru, Hydro

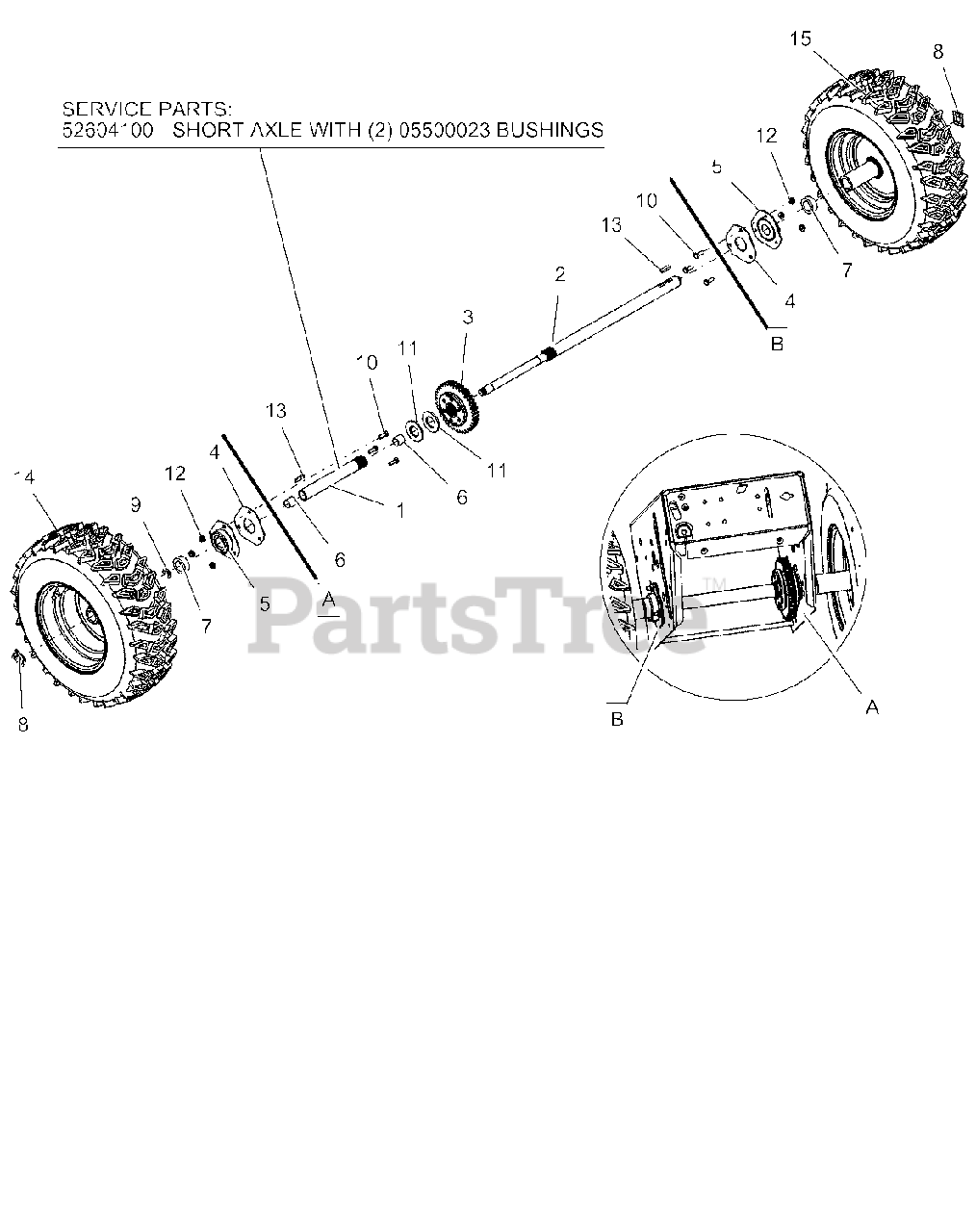

Wheels And Axles Parts Diagram

  • Title

1

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART (INCLUDED WITH THE SHORT AXLE)

$3.99

$

In Stock, Qty 20+

0

1

Gravely 00660800

AXLE, SHORT-PRO AUTO DIFF
(Superseded to 52604100)

$53.99

$

In Stock, Qty 12

0

1

Gravely 52604100

AXLE, SHORT-AUTO W/BUSHINGS

Note: SERVICE PART

$53.99

$

In Stock, Qty 12

0

2

Gravely 00660900

AXLE, LONG-PRO AUTO DIFF

$96.99

$

In Stock, only 4 left!

0

3

Gravely 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

4

Gravely 04796351

PLATE, BEARING SPACER

$

$

Not available

5

Gravely 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, Qty 20+

0

6

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05501014

SPACER, PRO AXLE BEARING

$7.49

$

In Stock, Qty 12

0

8

Gravely 05700001

CLIP, SNAP .625 DIA

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07101139

TIRE/WHEEL,RH 16X6.5-8 DIFF T2

$148.99

$

Usually ships in 4-12 days

0

15

Gravely 07101140

TIRE/WHEEL,LH 16X6.5-8 DIFF T2

$148.99

$

In Stock, only 2 left!

0
