926064 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 000999) Transmission Parts Diagram

36" Power Brush, Subaru, Hydro

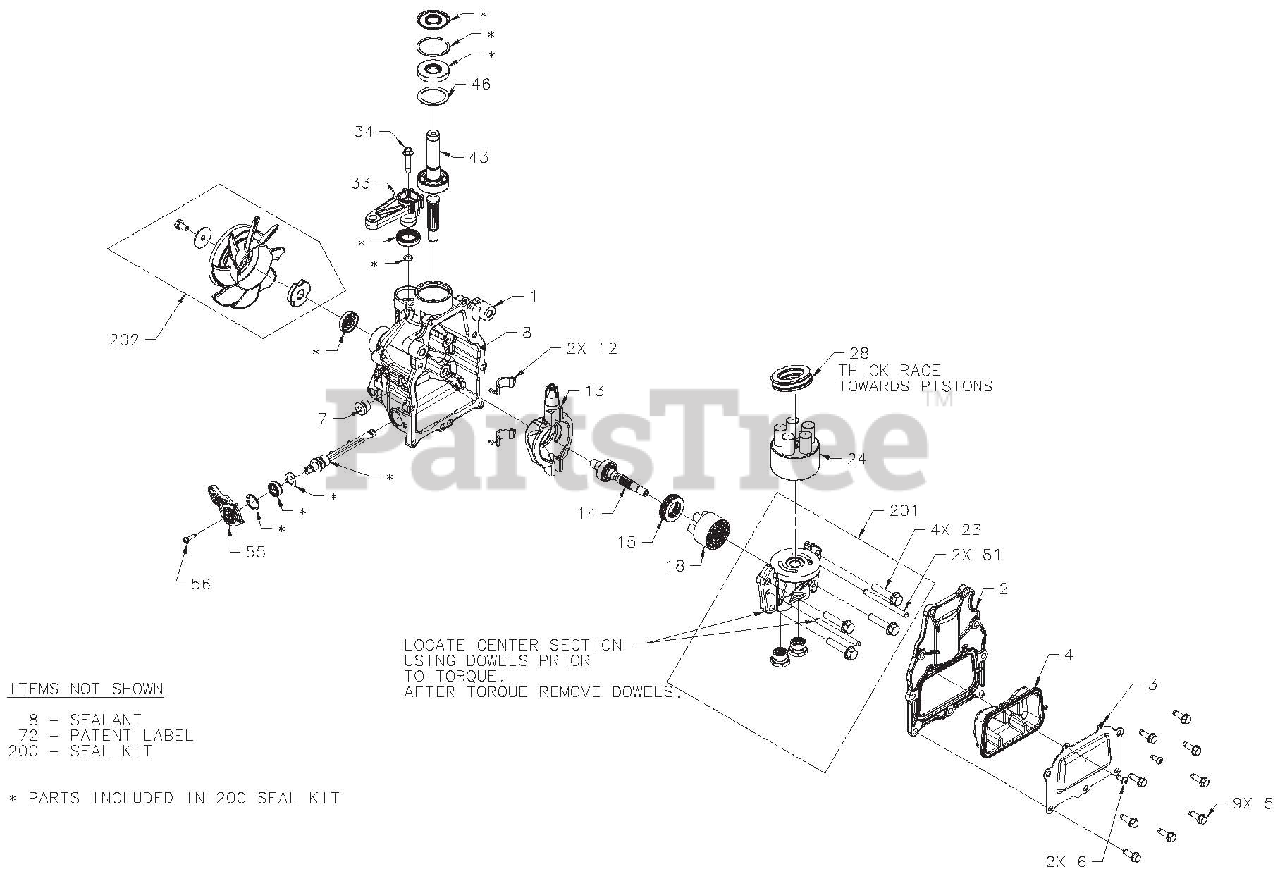

Transmission Parts Diagram

  • Title

1

Gravely 27104800

HOUSING, MAIN, SHOT

Note: Hydro-Gear p/n 54217

$146.99

$

Usually ships in 4-12 days

0

2

Gravely 27104900

COVER

Note: Hydro-Gear p/n 53934

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 27105000

PLATE, EXPANSION

Note: Hydro-Gear p/n 53943

$

$

Not available

4

Gravely 27105100

BLADDER

Note: Hydro-Gear p/n 53940

$

$

Not available

5

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$

$

Not available

6

Gravely 21543751

BOLT, SELF TAPPING 1/4-20 X .5

Note: Hydro-Gear p/n 50653

$

$

Not available

7

Gravely 08613700

PLUG, STEEL (WITH SEAL)

Note: Hydro-Gear p/n 9005110-5600

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

12

Gravely 27105200

BEARING, CRADLE

Note: Hydro-Gear p/n 54229

$

$

Not available

13

Gravely 27105300

SWASH PLATE

Note: Hydro-Gear p/n 53912

$

$

Not available

14

Gravely 27105400

KIT, INPUT SHAFT

Note: Hydro-Gear p/n 72334

$52.99

$

Usually ships in 4-12 days

0

15

Gravely 27105500

BEARING, 21 X 35 X 10

Note: Hydro-Gear p/n 53894

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 27105600

KIT, 3CC BLOCK

Note: Hydro-Gear p/n 72335

$50.94

$

Usually ships in 4-12 days

0

23

Gravely 27105700

SCREW, HFHCS 5/16-18 X 1.5

Note: Hydro-Gear p/n 53256

$

$

Not available

24

Gravely 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

28

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

33

Gravely 27105800

ARM, CONTROL

Note: Hydro-Gear p/n 54190

$41.99

$

Usually ships in 4-12 days

0

34

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

Note: Hydro-Gear p/n 53246

$2.49

$

In Stock, only 3 left!

0

43

Gravely 27106000

KIT, MOTOR SHAFT

Note: Hydro-Gear p/n 72336

$94.99

$

Usually ships in 4-12 days

0

46

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

55

Gravely 27106100

ARM, BYPASS

Note: Hydro-Gear p/n 54090

$4.49

$

Usually ships in 4-12 days

0

56

Gravely 27106200

SCREW, M4X16, WUPLAST

Note: Hydro-Gear p/n 54051

$3.99

$

Usually ships in 4-12 days

0

62

Gravely 27106300

HUB, PULLEY DIA 1.41

Note: Hydro-Gear p/n 53949

$

$

Not available

72

Label, Patent

Note: Hydro-Gear p/n 54187

$

$

Not available

81

Gravely 27106400

PIN, STRAIGHT HEADLESS

Note: Hydro-Gear p/n 9004820-2536

$

$

Not available

200

Gravely 27106500

KIT, SEAL

Note: Hydro-Gear p/n 72337

$

$

Not available

201

Gravely 27106600

KIT, CENTER SECTION

Note: Hydro-Gear p/n 72338

$110.99

$

Usually ships in 4-12 days

0

202

Gravely 52611600

KIT, RT-310 FAN REPLACEMENT

Note: Hydro-Gear p/n 72339

$

$

Not available
