926063 - Gravely 36" Power Brush, Subaru (SN: 002000 & Above) Friction Drive Parts Diagram

36" Power Brush, Subaru

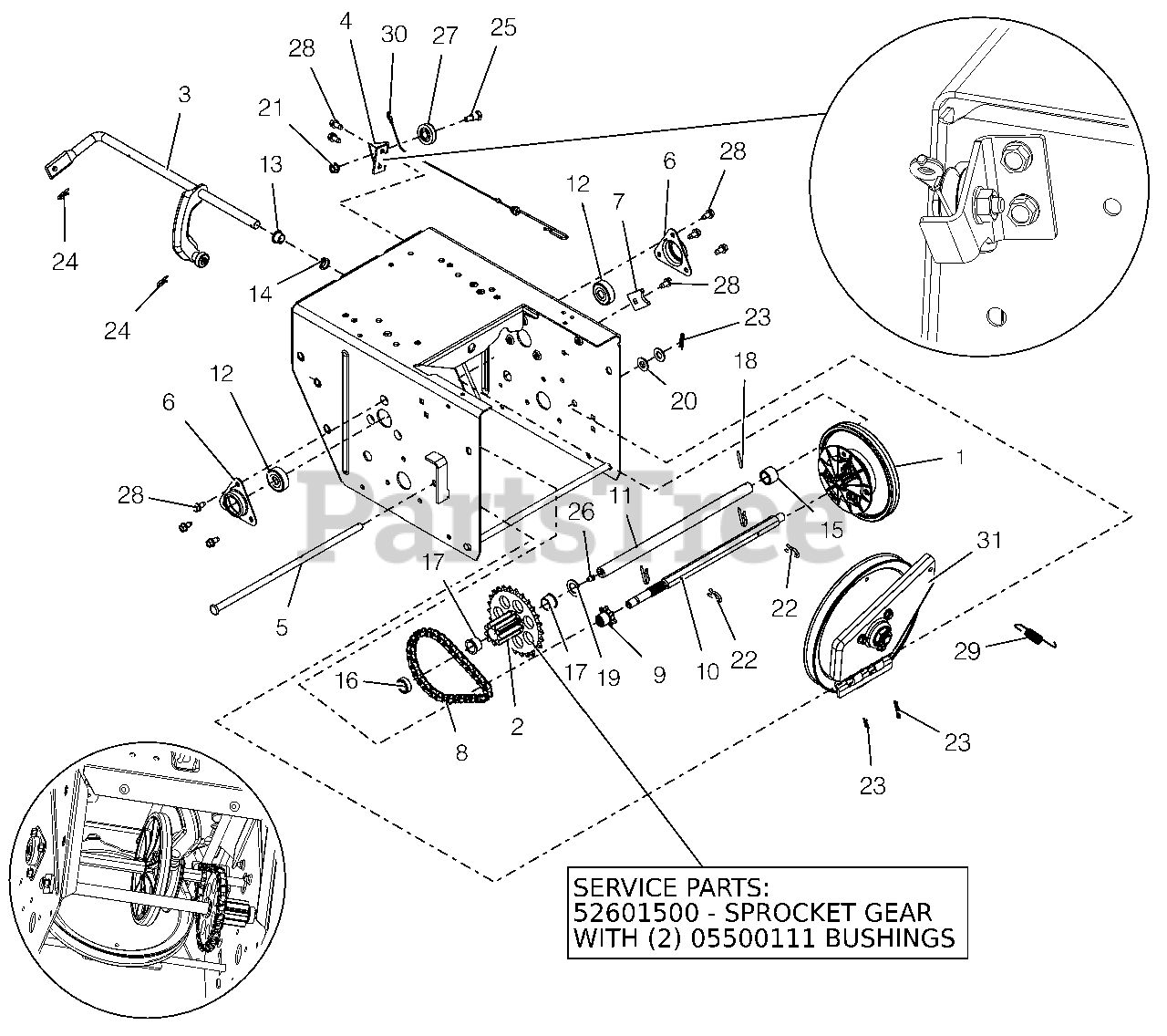

Friction Drive Parts Diagram

  • Title

1

Gravely 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$43.99

$

In Stock, Qty 19

0

2

Gravely 00190600

PINION & SPROCKET

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$45.99

$

In Stock, Qty 12

0

2

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

Note: SERVICE PART

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04872600

ARM, SHIFT-PRO (ASSEMBLY)

$

$

Not available

4

Gravely 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

5

Gravely 04991300

PIN, PIVOT
(Superseded to 52111400)

$

$

Not available

6

Gravely 00383000

FLANGE, BEARING

$12.99

$

In Stock, Qty 17

0

7

Gravely 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

8

Gravely 02466200

CHAIN - #41, 32 PITCHES

$6.99

$

In Stock, Qty 10

0

9

Gravely 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$

$

Not available

10

Gravely 04991400

SHAFT, HEX - HEAT TREATED

$36.99

$

In Stock, only 2 left!

0

11

Gravely 04511800

SHAFT, PINION - HARDENED

$42.99

$

In Stock, only 1 left!

0

12

Gravely 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

13

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 18

0

15

Gravely 05500029

SPACER, .635X.880X.611

$2.49

$

In Stock, only 3 left!

0

16

Gravely 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 16

0

17

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

26

Gravely 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 16

0

27

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

28

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 08300019

SG-TENS .048X.50X2.8

$5.99

$

In Stock, Qty 14

0

30

Gravely 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, only 4 left!

0

31

Gravely 52602700

PLATE, SWING ASSEMBLY-DEEP

$129.99

$

In Stock, only 2 left!

0
