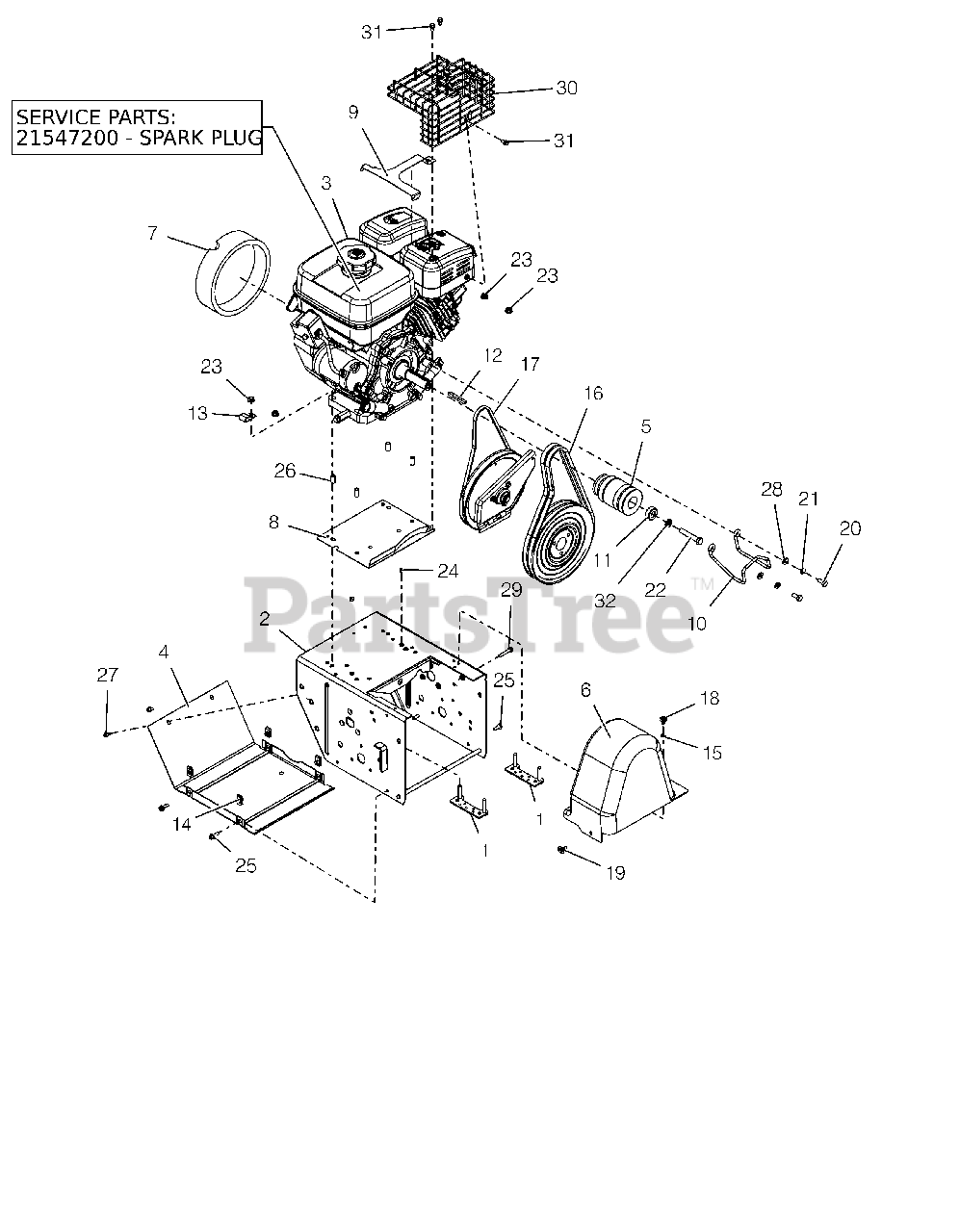

926063 - Gravely 36" Power Brush, Subaru (SN: 002000 & Above) Engine And Frame Parts Diagram

36" Power Brush, Subaru

Engine And Frame Parts Diagram

  • Title

1

Gravely 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

$

$

Not available

2

Gravely 04999953

FRAME, MAIN - PRO (WELDMENT)

$

$

Not available

3

Gravely 08200519

ENGINE,SUBARU EX27 AS 120V

$

$

Not available

3

Gravely 21547200

PLUG, SPARK SUBARU

Note: SERVICE PART

$3.99

$

In Stock, Qty 7

0

4

Gravely 00375153

COVER, BOTTOM

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 03846500

SHEAVE, SUBARU EX27

$168.99

$

Usually ships in 4-12 days

0

6

Gravely 03965700

COVER, BELT-TALL PRO

$156.99

$

Usually ships in 4-12 days

0

7

Gravely 03972500

FOAM COVER, RECOIL-SUBARU

$20.99

$

Usually ships in 4-12 days

0

8

Gravely 04990851

BAFFLE, WATER - LARGE BLOCK

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 03981151

GUARD, SNOW-SUBARU

$62.99

$

Usually ships in 4-12 days

0

10

Gravely 04509700

FINGER, BELT
(Superseded to 05273300)

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 05500938

BSHG-SPACER .47X1.25X.50

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 11

0

13

Gravely 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

14

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

16

Gravely 07200601

V-BELT, HA-RAW EDGE (SET)

$58.99

$

In Stock, only 2 left!

0

17

Gravely 07231000

V-BELT, 3L-RAW EDGE

$27.99

$

In Stock, Qty 10

0

18

Gravely 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0

25

Gravely 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05500937

BSHG-SLV .325X.400X.795

$

$

Not available

27

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07400007

@SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 04332500

MUFFLER GUARD, SUBARU EX27

$97.99

$

Usually ships in 4-12 days

0

31

Gravely 07001736

BLT-SERHFWH M6X1.0X12 8.8 CZ

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0
