926063 - Gravely 36" Power Brush, Subaru (SN: 002000 & Above) Dash Parts Diagram

36" Power Brush, Subaru

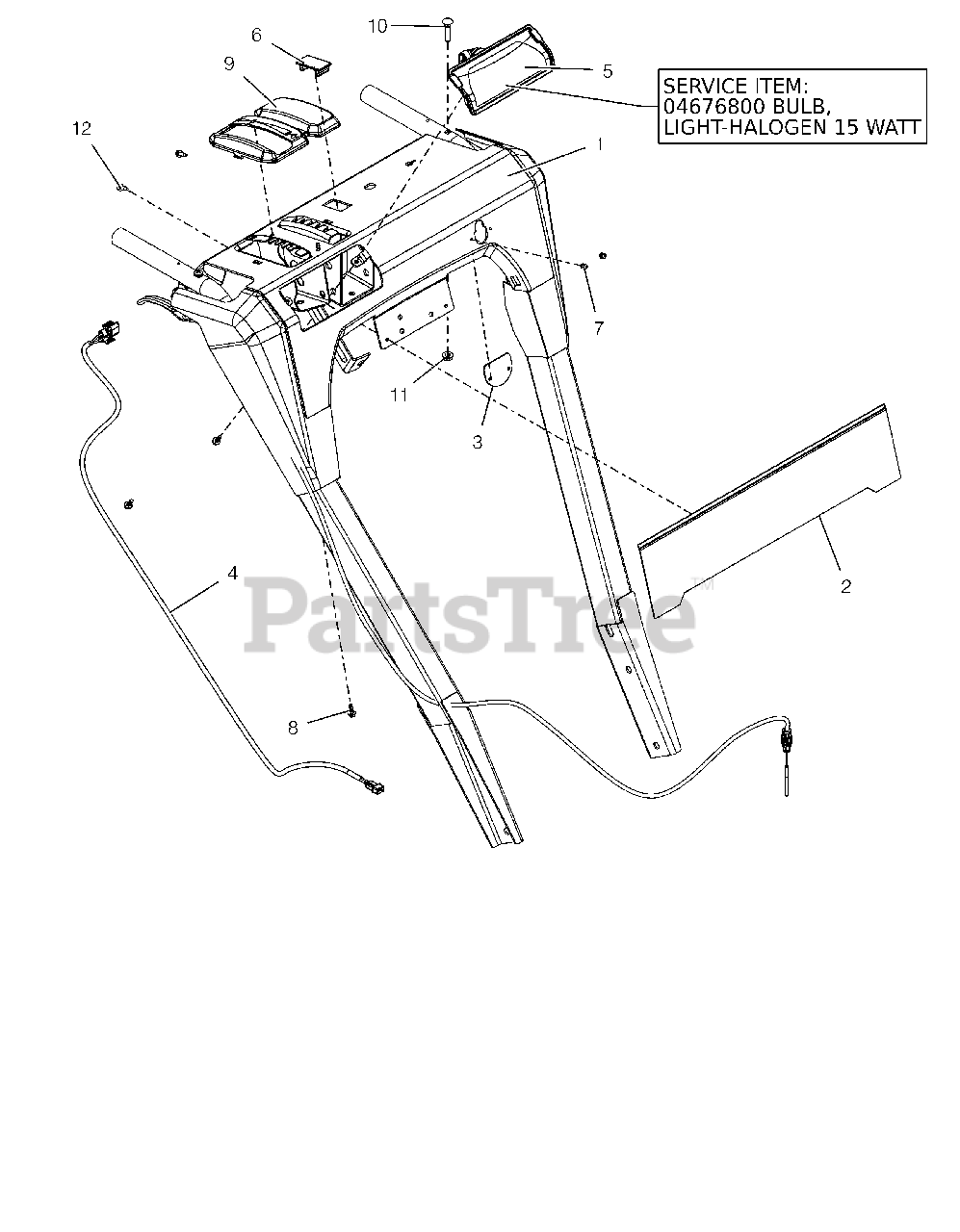

Dash Parts Diagram

  • Title

1

Gravely 52614900

PANEL, DASH - W/CTR DECAL

$188.99

$

Usually ships in 4-12 days

0

2

Gravely 04964251

WLDMT, BRAND PLATE

$93.99

$

Usually ships in 4-12 days

0

3

Gravely 04792351

COVER, DASH BRKT, BRUSH

$

$

Not available

4

Gravely 04329500

HARNESS, LIGHT - DELUXE

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 04812400

HEADLIGHT ASY, HOLO 15W 2 SHOT

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 04676800

BULB, LIGHT-HALOGEN 15 WATT

Note: SERVICE PART

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 07500338

PLUG,DASH PANEL

$

$

Not available

7

Gravely 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

8

Gravely 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 04824600

BEZEL, SHIFT - FRICTION BRUSH

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0
