926063 - Gravely 36" Power Brush, Subaru (SN: 000101 - 000999) Idler And Brake Arm Parts Diagram

36" Power Brush, Subaru

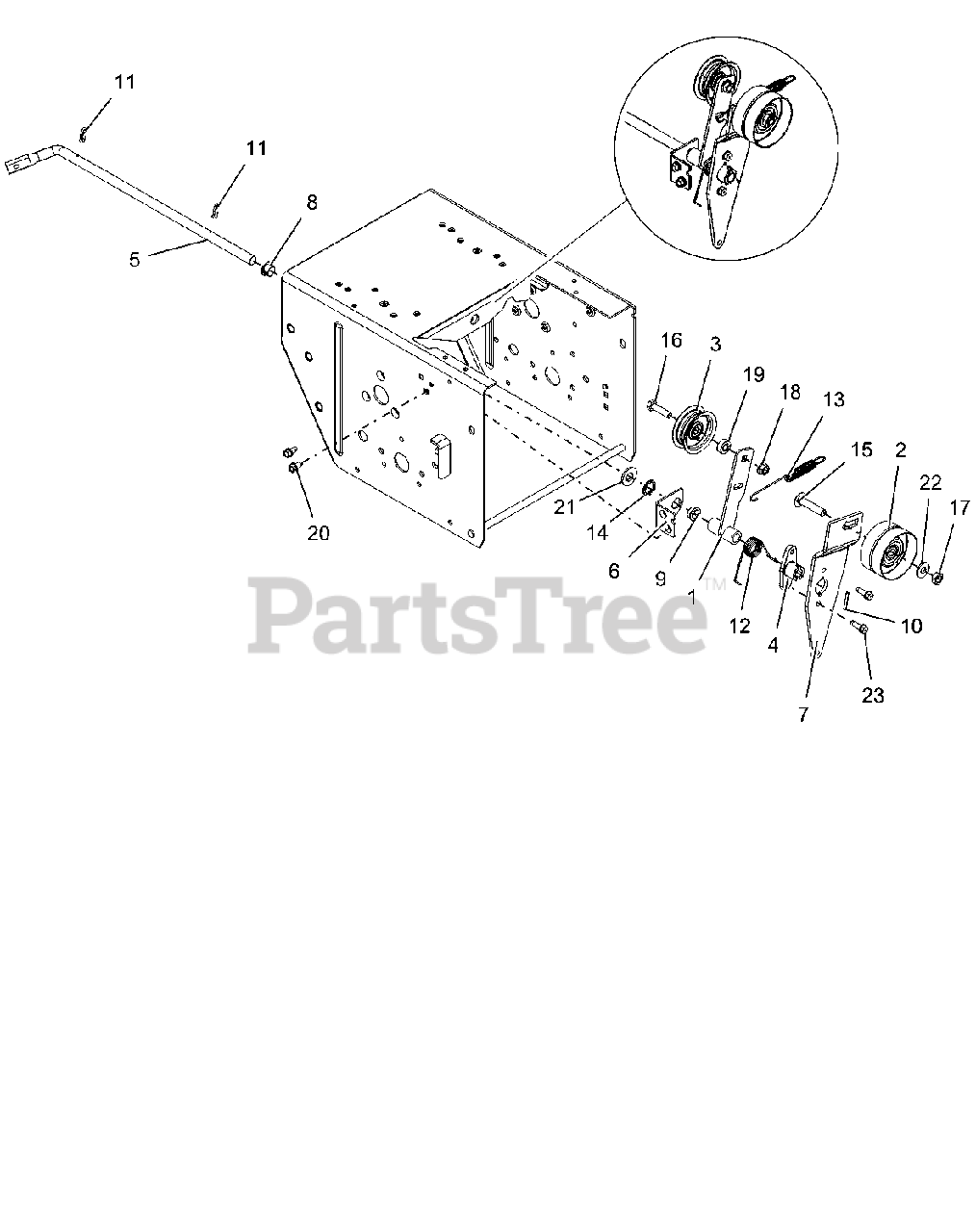

Idler And Brake Arm Parts Diagram

  • Title
1

Gravely 00371651

ARM, IDLER-TRACTION
(Superseded to 00371600)

$11.99

$

In Stock, Qty 17

0

2

Gravely 07333500

IDLER, FLAT-2.75 OD X .375 ID

$22.99

$

In Stock, Qty 9

0

3

Gravely 07338900

IDLER, FLAT - 2.00"

$22.99

$

In Stock, only 3 left!

0

4

Gravely 00384200

HUB, BRAKE ARM

$5.99

$

In Stock, Qty 11

0

5

Gravely 00384351

ARM, ATTACHMENT
(Superseded to 00384300)

$19.99

$

In Stock, Qty 18

0

6

Gravely 04511651

BRACKET, SUPPORT
(Superseded to 04511600)

$3.49

$

In Stock, Qty 11

0

7

Gravely 04712751

ARM, IDLER-ATTACHMENT

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, Qty 20+

0

10

Gravely 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

12

Gravely 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

13

Gravely 08300022

SG-TENS .06X.482X5.35

$5.99

$

In Stock, Qty 20+

0

14

Gravely 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 8

0

15

Gravely 06200111

BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

17

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05501115

SPCR, BRG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0
