926062 - Ariens 36" Power Brush, Subaru (SN: 002000 & Above) Brush Wheels Parts Diagram

36" Power Brush, Subaru

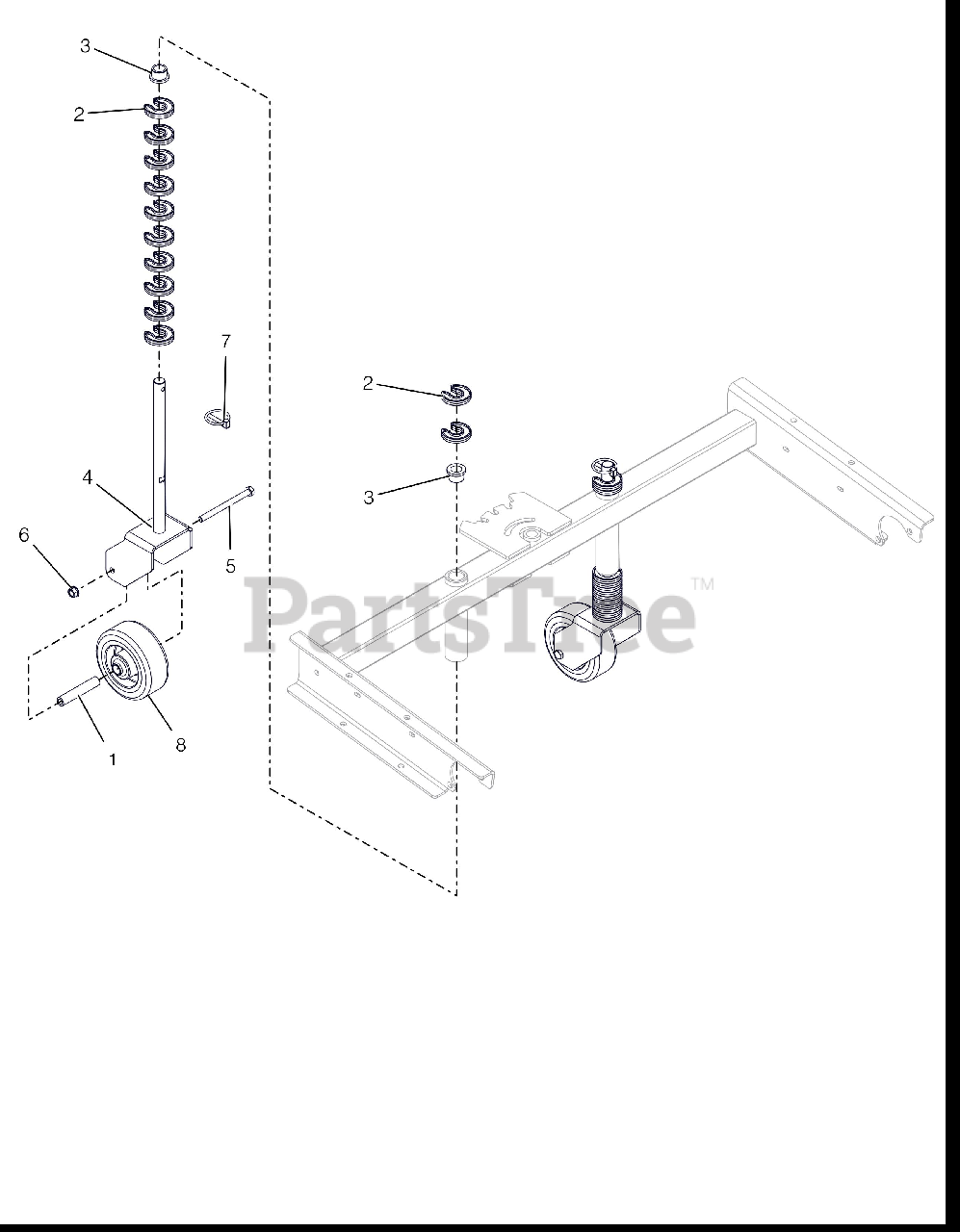

Brush Wheels Parts Diagram

  • Title
1

Ariens 00188000

SPACER, CASTER WHEEL

$

$

Not available

2

Ariens 03265100

CLIP-HOC FIXED

$3.49

$

In Stock, Qty 7

0

3

Ariens 03985500

BUSHING, FLANGE .75X.75X1.0

$5.99

$

In Stock, only 3 left!

0

4

Ariens 04848751

FORK, CASTER

$70.99

$

Usually ships in 4-12 days

0

5

Ariens 05970400

@BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

In Stock, only 2 left!

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06700004

PIN, 1/4X1-9/16 LYNCH
(Superseded to 06700226)

$3.99

$

In Stock, Qty 8

0

8

Ariens 07101101

WHEEL, CASTER - 5"OD

$39.99

$

Usually ships in 4-12 days

0
