926062 - Ariens 36" Power Brush, Subaru (SN: 001000 - 001999) Control Panel Parts Diagram

36" Power Brush, Subaru

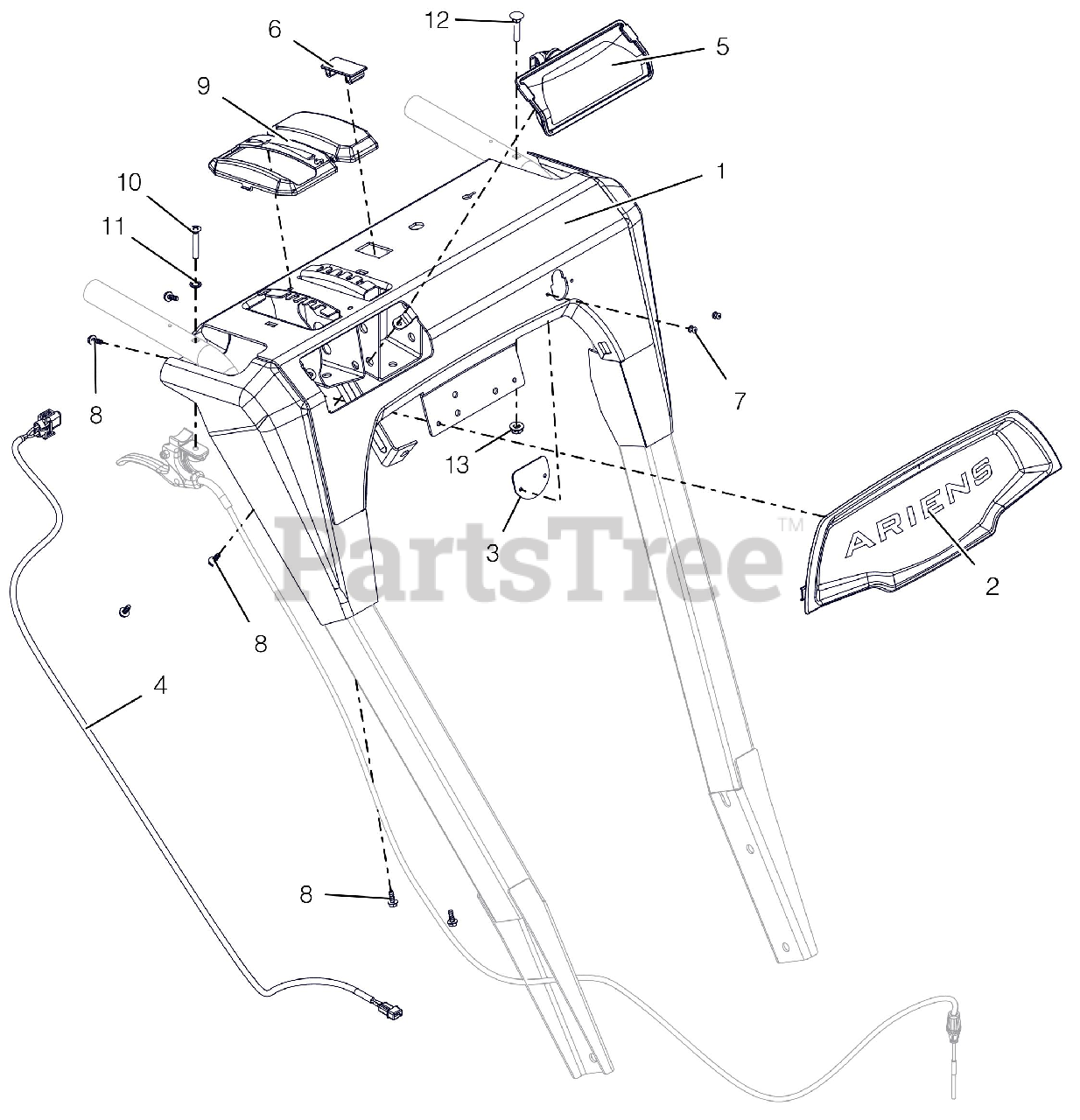

Control Panel Parts Diagram

  • Title

1

Ariens 52614900

PANEL, DASH - W/CTR DECAL

$188.99

$

Usually ships in 4-12 days

0

2

Ariens 04982200

BEZEL, DASH - ARIENS LG DASH

$27.99

$

Usually ships in 4-12 days

0

3

Ariens 04792351

COVER, DASH BRKT, BRUSH

$

$

Not available

4

Ariens 04329500

HARNESS, LIGHT - DELUXE

$30.99

$

Usually ships in 4-12 days

0

5

Ariens 04812400

HEADLIGHT ASY, HOLO 15W 2 SHOT

$42.99

$

Usually ships in 4-12 days

0

6

Ariens 07500338

PLUG,DASH PANEL

$

$

Not available

7

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

$

$

Not available

8

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 04824600

BEZEL, SHIFT - FRICTION BRUSH

$15.99

$

Usually ships in 4-12 days

0

10

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0

11

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 1 left!

0

13

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0
