926062 - Ariens 36" Power Brush, Subaru (SN: 001000 - 001999) Conrols Parts Diagram

36" Power Brush, Subaru

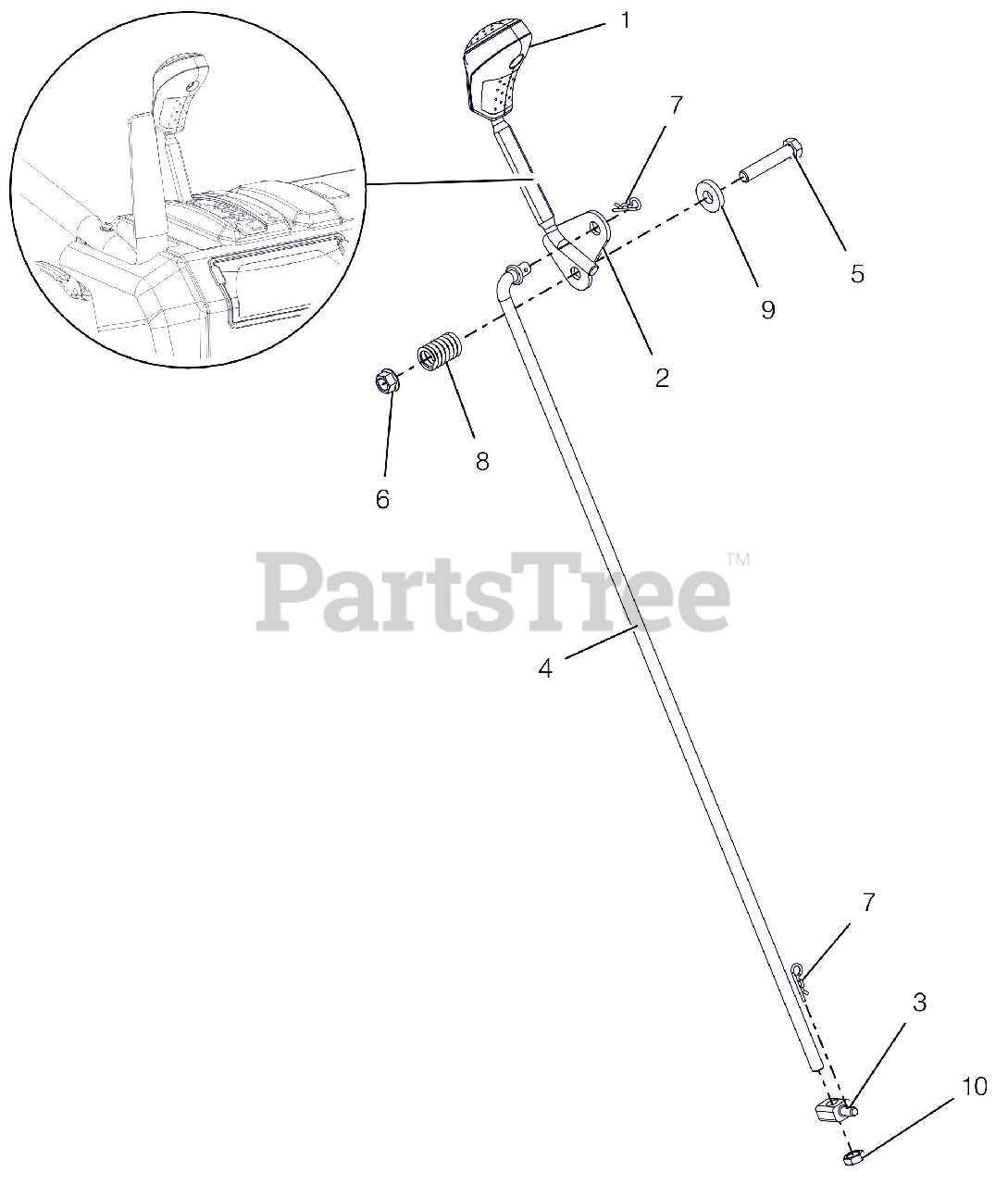

Conrols Parts Diagram

  • Title
1

Ariens 04816300

KNOB, CONTROL, DASH

$7.99

$

In Stock, Qty 11

0

2

Ariens 04846900

WELDMENT,LG DASH SPEED CONTROL

$

$

Not available

3

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$7.99

$

In Stock, Qty 17

0

4

Ariens 04753667

ROD, SHIFT-PRO
(Superseded to 04753600)

$27.99

$

Usually ships in 4-12 days

0

5

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

9

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0
