926062 - Ariens 36" Power Brush, Subaru (SN: 001000 - 001999) Brush Head Parts Diagram

36" Power Brush, Subaru

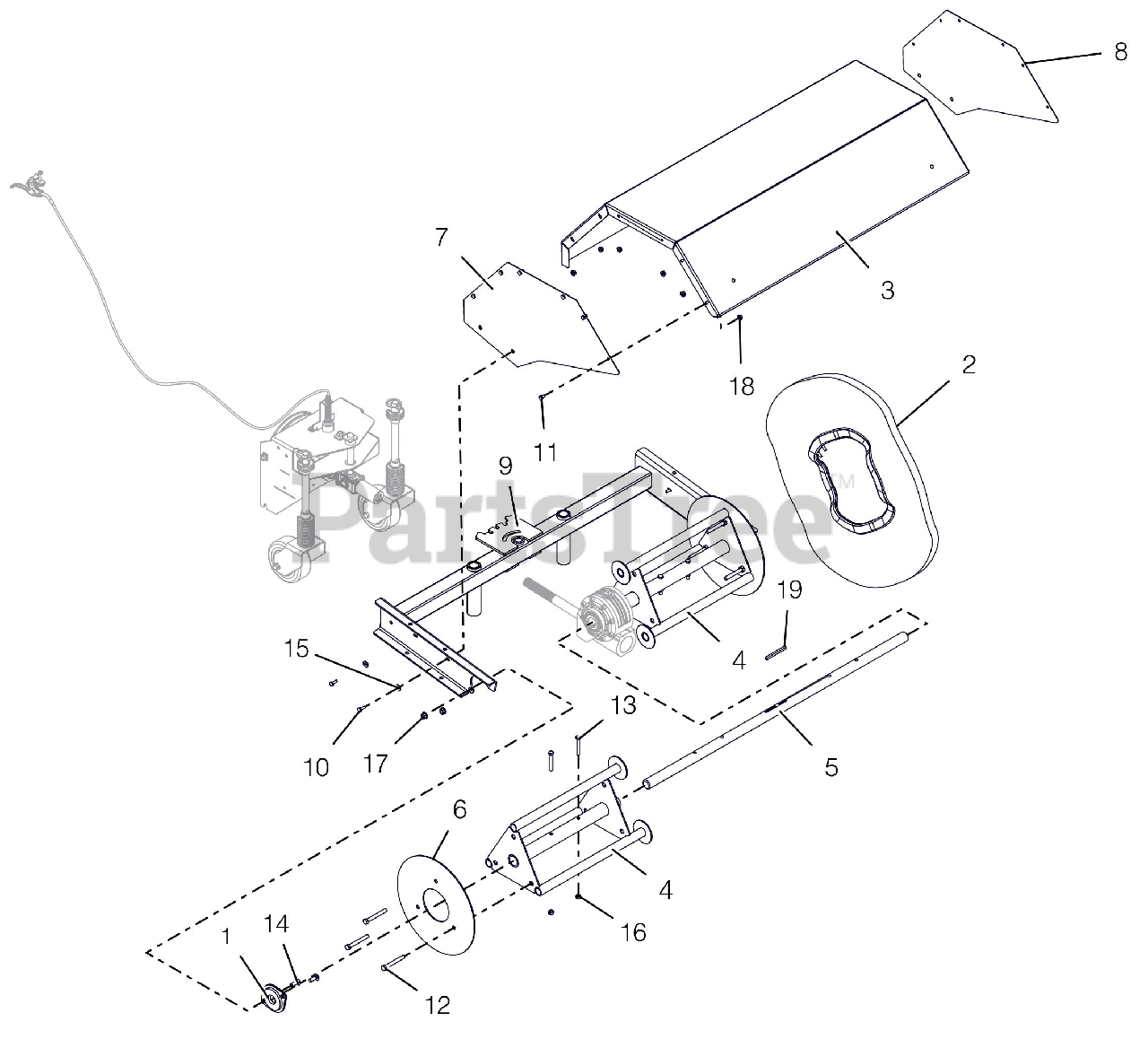

Brush Head Parts Diagram

  • Title

1

Ariens 03733900

BEARING,2 BOLT FLANGE 1-1/8 ID

$69.99

$

Usually ships in 4-12 days

0

2

Ariens 72602600

KIT, BRISTLE - SET OF 18

$407.99

$

In Stock, only 2 left!

0

3

Ariens 52614100

COVER, TOP - 36" BRUSH W/DECAL

$134.99

$

Usually ships in 4-12 days

0

4

Ariens 52612900

PB36 DRIVE CORE SERVICE KIT

$374.99

$

Usually ships in 4-12 days

0

5

Ariens 04594500

CENTER, SHAFT

$130.99

$

Usually ships in 4-12 days

0

6

Ariens 04594651

PLATE, END RETAINER

$

$

Not available

7

Ariens 04682059

WLDT, SIDE COVER - RH

$56.99

$

Usually ships in 4-12 days

0

8

Ariens 04682159

WLDT, SIDE COVER - LH

$58.99

$

Usually ships in 4-12 days

0

9

Ariens 04844951

FRAME, POWER BROOM 36"

$284.99

$

Usually ships in 4-12 days

0

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

13

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0
