926060 (ST 28 DLET) - Ariens Hydro Pro 28" Track Snow Blower, Briggs & Stratton (SN: 000101 - 001499) Track Angle Adjuster Parts Diagram

Hydro Pro 28" Track Snow Blower, Briggs & Stratton

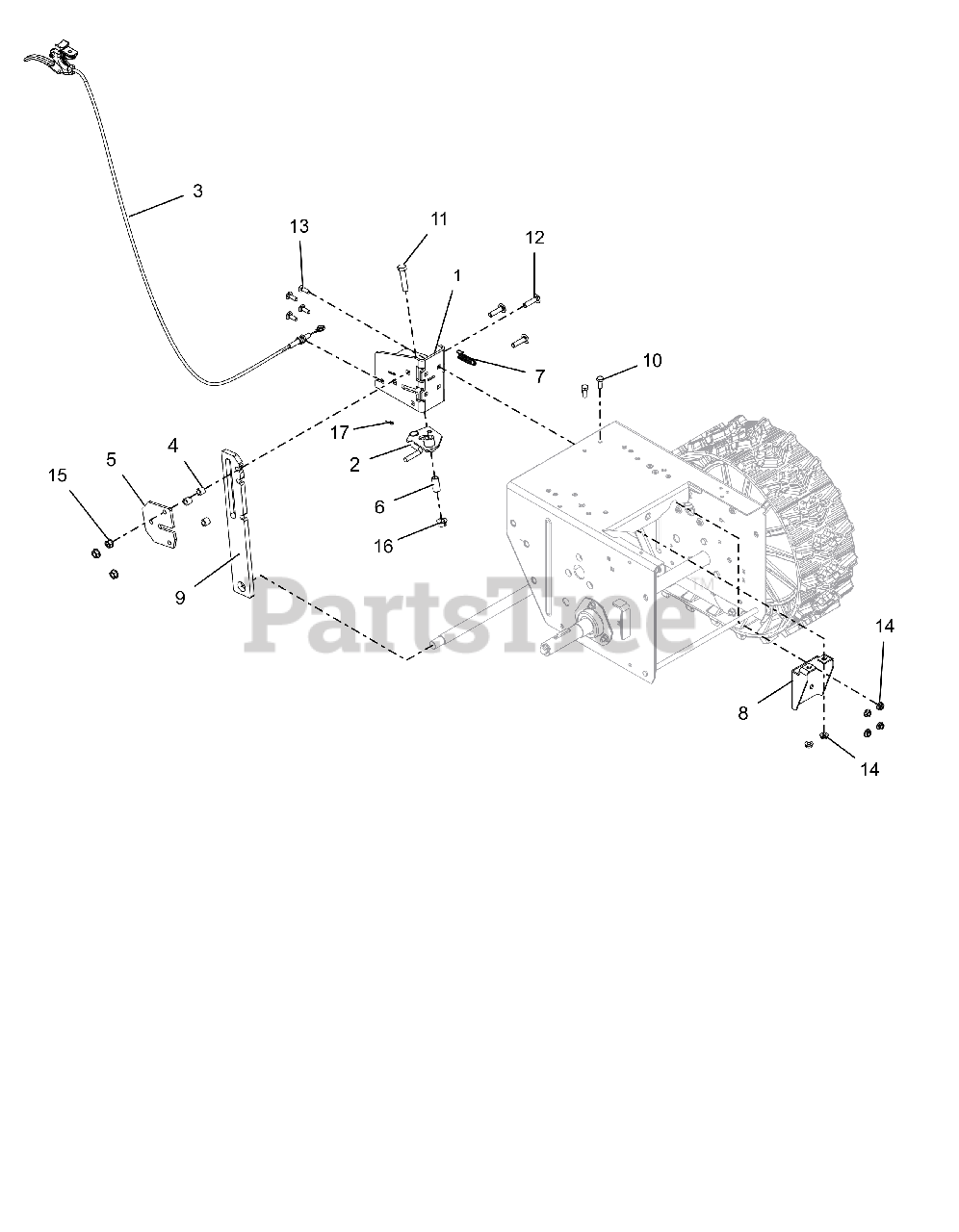

Track Angle Adjuster Parts Diagram

  • Title

1

Ariens 04797851

BRACKET,HEIGHT ADJUSTER-DELUXE

$51.99

$

Usually ships in 4-12 days

0

2

Ariens 04999500

LOCK,HEIGHT ADJUSTER TRIGGER

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 06900510

CABLE, TRACK REMOTE

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

5

Ariens 03294151

PLATE, HEIGHT ADJUSTER

$

$

Not available

6

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

7

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 20+

0

8

Ariens 04993851

BRACKET, REINFORCEMENT

$

$

Not available

9

Ariens 05153551

ADJUSTER, HEIGHT-BWT

$

$

Not available

10

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0
