926059 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 054999) Brush Wheels And Battery Parts Diagram

36" Power Brush, Subaru, Hydro

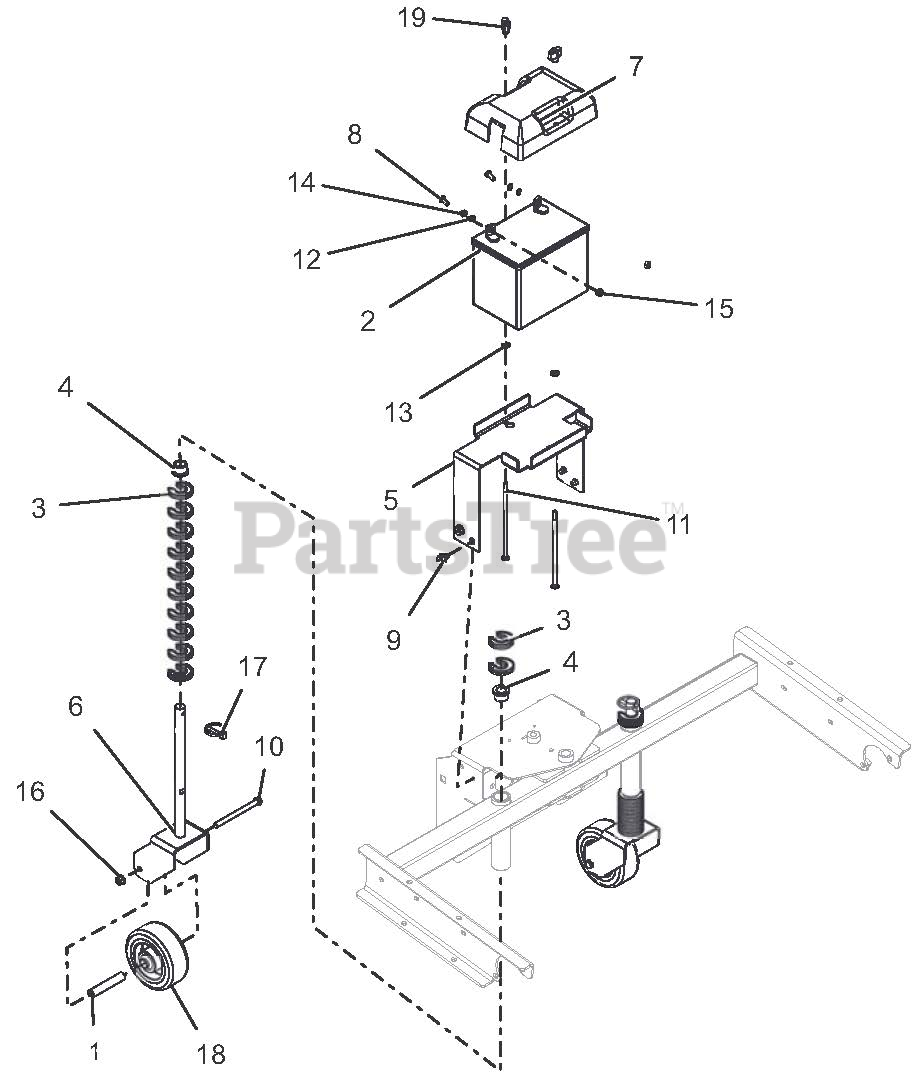

Brush Wheels And Battery Parts Diagram

  • Title

1

Gravely 00188000

SPCR, CASTER WHEEL

$

$

Not available

2

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

3

Gravely 03265100

CLIP, HOC FIXED

$3.49

$

In Stock, Qty 7

0

4

Gravely 03985500

BUSHING, FLANGE

$5.99

$

In Stock, only 3 left!

0

5

Gravely 04655651

TRAY, BATTERY - POWER BRUSH

$64.99

$

Usually ships in 4-12 days

0

6

Gravely 04848751

FORK, CASTER

Note: (BLACK)

$70.99

$

Usually ships in 4-12 days

0

7

Gravely 04912900

COVER, BATTERY

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

In Stock, only 2 left!

0

11

Gravely 06220400

BLT -RDHDSQNK .25-20 X 7.00 G2 YZ
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

12

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06439500

WASHER-FLAT-STL, .265 X .50 X .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

16

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06700004

PIN, 1/4 X 1 - 9/16 LYNCH
(Superseded to 06700226)

$3.99

$

In Stock, Qty 8

0

18

Gravely 07101101

WHEEL, CASTER - 5" OD

$39.99

$

Usually ships in 4-12 days

0

19

Gravely 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0
