926059 - Gravely 36" Power Brush, Subaru, Hydro (SN: 000101 - 054999) Brush Drive Unit Parts Diagram

36" Power Brush, Subaru, Hydro

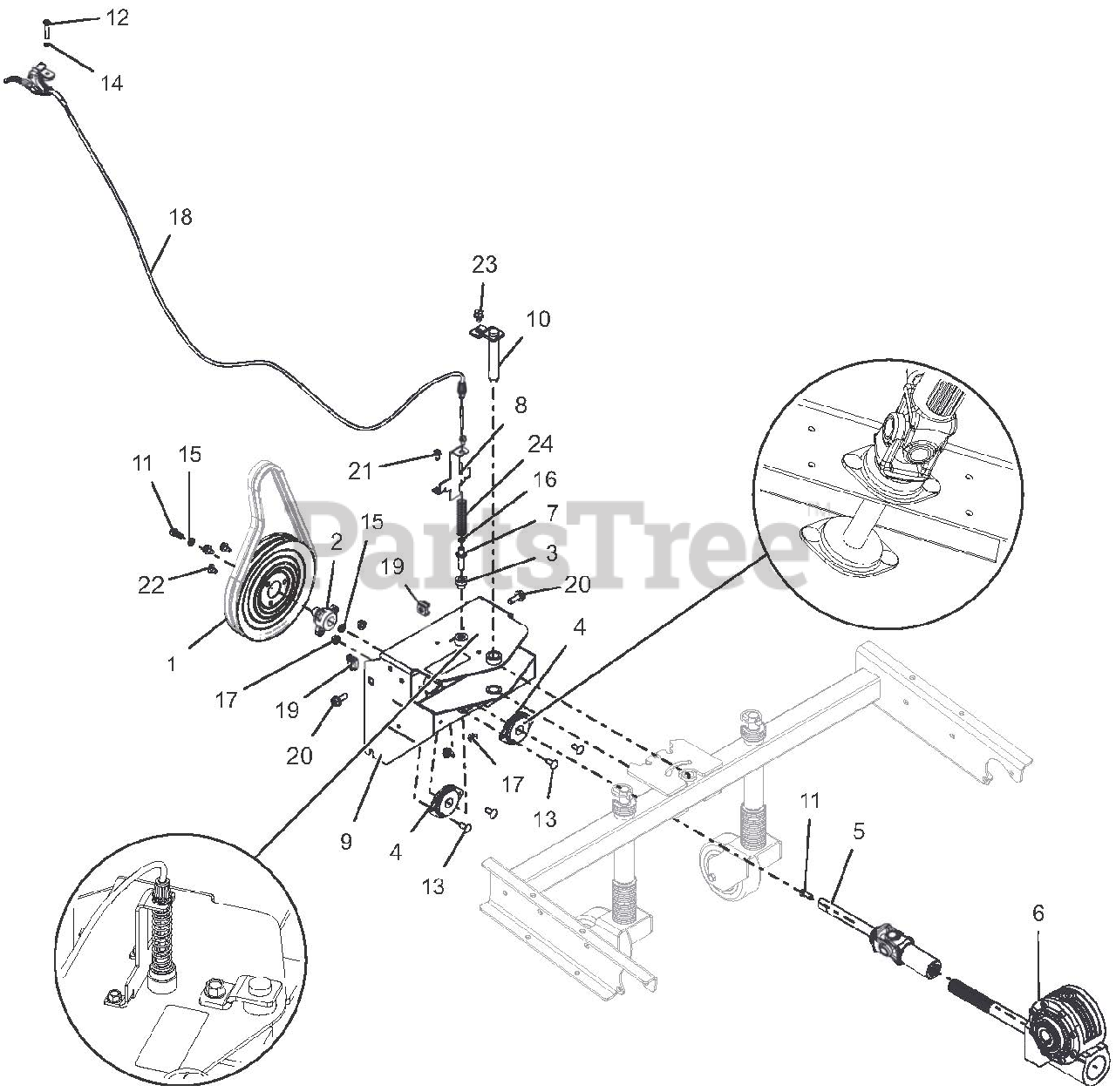

Brush Drive Unit Parts Diagram

  • Title
1

Gravely 00268700

PULLEY, DUAL GROOVE
(Superseded to 00268751)

$39.99

$

In Stock, Qty 5

0

2

Gravely 00268901

HUB, ATTACHMENT PULLEY

$9.49

$

In Stock, only 1 left!

0

3

Gravely 03114500

SPCR, -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

4

Gravely 03685300

BEARING, 2 BOLT FLANGE - .75 ID

$45.99

$

In Stock, only 2 left!

0

5

Gravely 04541900

DRIVELINE, SERIES 07

Note: (U-JOINT)

$

$

Not available

6

Gravely 04542000

GEARBOX, WORM - 8.25:1

$445.99

$

Usually ships in 4-12 days

0

7

Gravely 04636300

PIN, ADJUSTABLE ANGLE BRUSH

$17.99

$

In Stock, only 2 left!

0

8

Gravely 04651851

BRKT, PIN HOLDER

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 04845051

ADAPTOR, 36" BRUSH, 926 FRAME

Note: (BLACK)

$138.99

$

Usually ships in 4-12 days

0

10

Gravely 04845100

WLDMT, BRUSH PIVOT PIN

$43.99

$

Usually ships in 4-12 days

0

11

Gravely 05947300

BLT-HEX .31-24X.75 GR5 YWZC
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06100007

SCR, -- MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06305200

WSHR, LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06307400

WSHR-LK .31X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536600

NUT-HEX 10-24 YWZC

$0.99

$

In Stock, Qty 5

0

17

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06900523

CABLE, REMOTE BRUSH LOCK

$68.99

$

In Stock, Qty 8

0

19

Gravely 07002600

NUT-RETAINER .38-16

$9.49

$

In Stock, Qty 13

0

20

Gravely 07049900

BLT-SERHFWH .38-16X1.00 YWZC

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 08300601

SPRG, COMPRESSION

$9.49

$

In Stock, only 2 left!

0
