926058 - Gravely 36" Power Brush, Subaru (SN: 000101 - 054999) Controls Parts Diagram

36" Power Brush, Subaru

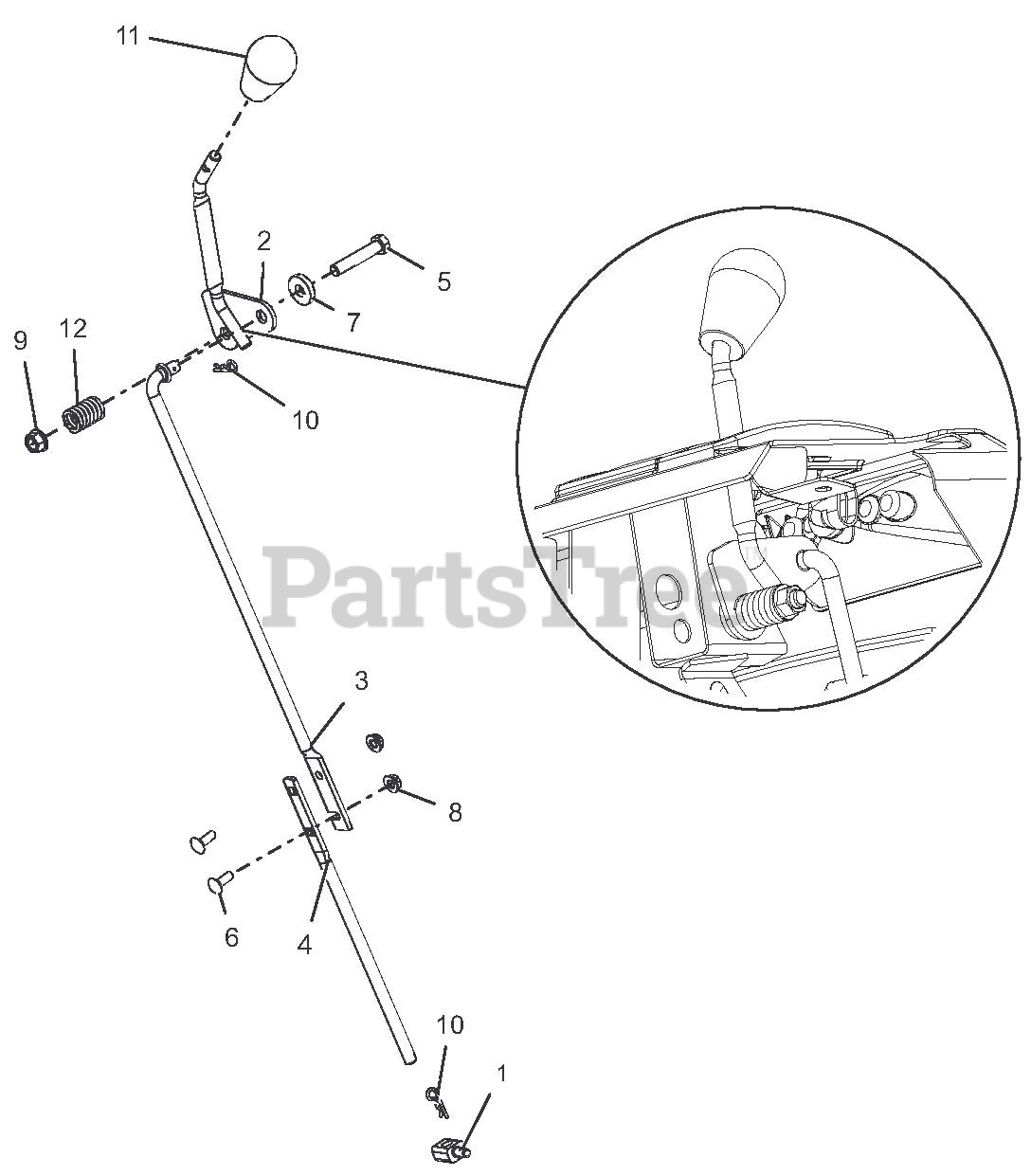

Controls Parts Diagram

  • Title
1

Gravely 00386700

PIVOT, SHIFT ROD .375-16 (TRUNN)

Note: (TRUNN)

$7.99

$

In Stock, Qty 18

0

2

Gravely 04320200

WLDMT, CONTROL LEVER (SHIFT)

Note: (SHIFT)

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 04336367

ROD, SHIFT - UPPER
(Superseded to 04336300)

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 04343867

ROD, SHIFT - LOWER

$24.99

$

Usually ships in 4-12 days

0

5

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZC
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06500710

NUT, LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07500209

KNOB, SOFT TEARDROP, PUSH-ON GRY

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 08335700

SPRG, COMPRESSION

$9.49

$

In Stock, only 1 left!

0
