926058 - Gravely 36" Power Brush, Subaru (SN: 000101 - 054999) Brush Head Parts Diagram

36" Power Brush, Subaru

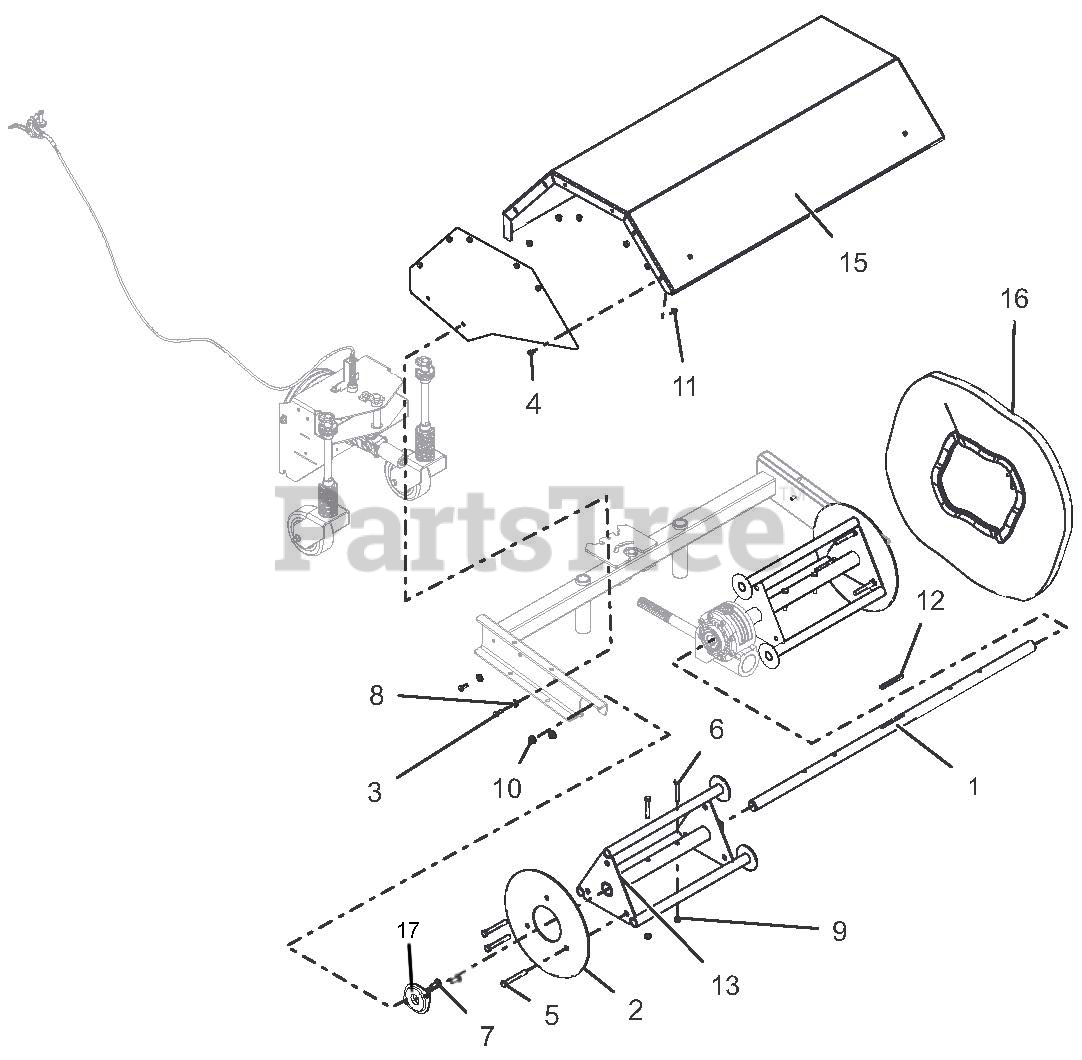

Brush Head Parts Diagram

  • Title

1

Gravely 04594500

SHAFT, CENTER

$130.99

$

Usually ships in 4-12 days

0

2

Gravely 04594651

PLATE, END - RETAINER

$

$

Not available

3

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05958300

BLT-HEX .38-16X3.00 GR5 FTH YWZC
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 05963700

BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5 YWZC
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06600121

KEY-SQ .250X.250X3.00

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 52612900

BRUSH, DRIVE CORE - SERVICE KIT

$374.99

$

Usually ships in 4-12 days

0

15

Gravely 52614200

COVER, TOP - 36" BRUSH W/DECALS

$

$

Not available

16

Gravely 72602600

BRISTLE REPLACEMENT - SET OF 18

$407.99

$

In Stock, only 2 left!

0

17

Gravely 03733900

BEARING, 2 BOLT FLANGE 1-1/8 ID

$69.99

$

Usually ships in 4-12 days

0
